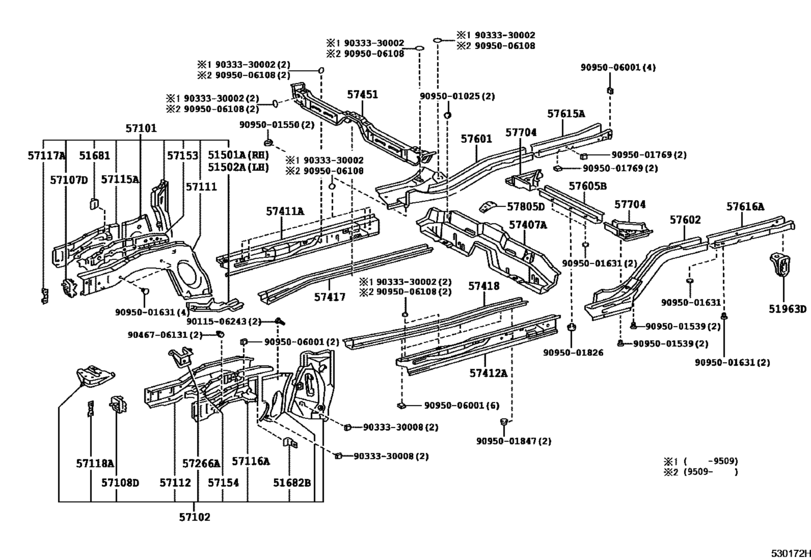

Floor Side Member ([05.1995 - 05.1997] (9505-9705)AE100,101,CE100) Diagram Toyota COROLLA
- Year
- 1995 - 1998
- Sales region
- Japan
- Frame
- CE100
- grade
- G
- body
- WG
- ENGINE
- 2C
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 05.1995
- To
- 04.1998
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51501A
|
51501A
51501-13010 Reinforcement Sub-Assy, Front Suspension Member, Rh[05.1997 - 08.2000] AE10#,CE10#,EE10# |
51501-13010 |
US $263.54 |
||
|
51502A
|
51502A
51502-13010 Reinforcement Sub-Assy, Front Suspension Member, Lh[05.1997 - 08.2000] AE10#,CE10#,EE10# |
51502-13010 |
US $256.26 |
||
|
51681
|
51681
51681-12050 Bracket, Flexible Hose[06.1991 -] AE10#,CE10#,EE10# |
51681-12050 |
US $9.90 |
||
|
51682B
|
51682B
51682-12060 Bracket, Flexible Hose, Lh[06.1991 -] AE10#,CE10#,EE10# |
51682-12060 |
US $9.90 |
||
|
51963D
|
51963D
51096-12040 Hook, Transport, Rear Lh[05.1995 - 04.1997] AE100,101,104,CE100 |
51096-12040 |
US $39.17 |
||
|
57101
|
57101
57101-12441 Member Sub-Assy, Front Side, Rh[05.1995 - 04.1997] CE10#,EE10# |
57101-12441 |
US $519.79 |
||
|
57101
|
57101
57101-12943 Member Sub-Assy, Front Side, Rh[05.1997 - 08.2000] CE100,101 |
57101-12943 |
US $579.49 |
||
| replacement | |||||
|
57101
|
57101
57101-1A913 Member Sub-Assy, Front Side, Rh[05.1997 - 08.2000] CE100,101 |
57101-1A913 |
US $519.79 |
||
|
57102
|
57102
57102-12401 Member Sub-Assy, Front Side, Lh[05.1995 - 04.1997] CE10# |
57102-12401 |
US $579.49 |
||
|
57102
|
57102
57102-12957 Member Sub-Assy, Front Side, Lh[05.1997 - 08.2000] CE100,101 |
57102-12957 |
US $607.15 |
||
| replacement | |||||
|
57102
|
57102
57102-1A913 Member Sub-Assy, Front Side, Lh[05.1997 - 08.2000] CE100,101 |
57102-1A913 |
US $550.37 |
||
|
57107D
|
57107D
57125-12090 Reinforce Sub-Assy, Front Bumper Mounting, Rh[05.1997 - 08.2000] AE100,101,104,CE100,101 |
57125-12090 |
US $28.39 |
||
|
57108D
|
57108D
57126-12050 Reinforce Sub-Assy, Front Bumper Mounting, Lh[05.1997 - 08.2000] AE100,101,104,CE100,101 |
57126-12050 |
US $28.39 |
||
|
57111
|
57111
57111-12201 Member, Front Side, Rh[05.1995 -] AE10#,CE10#,EE10# |
57111-12201 |
US $203.84 |
||
|
57112
|
57112
57112-12141 Member, Front Side, Lh[05.1995 - 01.1997] AE10#,CE10#,EE10# |
57112-12141 |
US $200.93 |
||
| replacements | |||||
|
57112
|
57112
57112-12142 Member, Front Side, Lh[05.1995 - 01.1997] AE10#,CE10#,EE10# |
57112-12142 |
US $203.84 |
||
|
57112
|
57112
57208-12111 Bracket, Engine Mounting, Lh[05.1995 - 01.1997] AE10#,CE10#,EE10# |
57208-12111 |
US $32.47 |
||
|
57112
|
57112
57208-12121 Bracket, Engine Mounting, Lh[05.1995 - 01.1997] AE10#,CE10#,EE10# |
57208-12121 |
US $34.65 |
||
|
57112
|
57112
57112-12142 Member, Front Side, Lh[01.1997 -] AE10#,CE10#,EE10# |
57112-12142 |
US $203.84 |
||
|
57115A
|
57115A
57115-12060 Plate, Front Side Member, Outer Rh[06.1991 -] AE10#,CE10#,EE10# |
57115-12060 |
US $62.90 |
||
|
57116A
|
57116A
57116-12060 Plate, Front Side Member, Outer Lh[06.1991 -] AE10#,CE10#,EE10# |
57116-12060 |
US $62.90 |
||
|
57117A
|
57117A
57117-12110
Reinforcement, Front Bumper Mounting
[06.1991 -] AE10#,CE10#,EE10# |
57117-12110 |
— | ||
|
57118A
|
57118A
57117-12110
Reinforcement, Front Bumper Mounting
[06.1991 -] AE10#,CE10#,EE10# |
57117-12110 |
— | ||
|
57153
|
57153
57016-12060 Reinforcement, Front Side Member, No.2 Rh[05.1995 - 08.2000] CE10#,EE10# |
57016-12060 |
US $145.60 |
||
| replacement | |||||
|
57153
|
57153
57016-12100 Reinforcement, Front Side Member, No.2 Rh[05.1995 - 08.2000] CE10#,EE10# |
57016-12100 |
US $144.14 |
||
|
57154
|
57154
57017-12040 Reinforcement, Front Side Member, No.2 Lh[05.1995 - 04.1997] CE10# |
57017-12040 |
US $138.32 |
||
|
57154
|
57154
57017-13010 Reinforcement, Front Side Member, No.2 Lh[05.1997 -] AE10#,CE10#,EE10# |
57017-13010 |
US $139.78 |
||
|
57266A
|
57266A
57208-12110 Bracket, Engine Mounting, Lh[06.1991 - 01.1997] CE10# |
57208-12110 |
US $32.47 |
||
| replacement | |||||
|
57266A
|
57266A
57208-12111 Bracket, Engine Mounting, Lh[06.1991 - 01.1997] CE10# |
57208-12111 |
US $32.47 |
||
|
57266A
|
57266A
57208-12111 Bracket, Engine Mounting, Lh[01.1997 - 05.1997] CE10# |
57208-12111 |
US $32.47 |
||
|
57407A
|
57407A
57407-12040
Member Sub-Assy, Center Floor Cross
[06.1991 - 05.1997] AE100,101,CE100,EE101 |
57407-12040 |
— | ||
|
57407A
|
57407A
57407-12070 Member Sub-Assy, Center Floor Cross[05.1997 - 08.2000] AE100,101,CE100,101 |
57407-12070 |
US $235.87 |
||
|
57411A
|
57411A
57401-12460 Member, Floor Side, Inner Rh[06.1991 - 08.2000] AE10#,CE10#,EE10#..4DS,V,WG |
57401-12460 |
US $183.46 |
||
|
57412A
|
57412A
57402-12460 Member, Floor Side, Inner Lh[06.1991 - 08.2000] AE10#,CE10#,EE10#..4DS,V,WG |
57402-12460 |
US $183.46 |
||
|
57417
|
57417
57417-12100 Reinforcement, Front Floor Under, Rh[06.1991 - 04.1997] AE10#,CE10#,EE10# |
57417-12100 |
US $107.74 |
||
| replacement | |||||
|
57417
|
57417
57417-13010 Reinforcement, Front Floor Under, Rh[06.1991 - 04.1997] AE10#,CE10#,EE10# |
57417-13010 |
US $104.83 |
||
|
57417
|
57417
57417-13010 Reinforcement, Front Floor Under, Rh[05.1997 -] AE10#,CE10#,EE10# |
57417-13010 |
US $104.83 |
||
|
57418
|
57418
57418-12060 Reinforcement, Front Floor Under, Lh[06.1991 - 04.1997] AE10#,CE10#,EE10# |
57418-12060 |
US $106.29 |
||
| replacement | |||||
|
57418
|
57418
57418-13010 Reinforcement, Front Floor Under, Lh[06.1991 - 04.1997] AE10#,CE10#,EE10# |
57418-13010 |
US $104.83 |
||
|
57418
|
57418
57418-13010 Reinforcement, Front Floor Under, Lh[05.1997 -] AE10#,CE10#,EE10# |
57418-13010 |
US $104.83 |
||
|
57451
|
57451
57451-12131 Member, Front Floor Cross[05.1995 - 08.2000] AE100,101,CE100,101,102,106,107,108,EE10# |
57451-12131 |
US $119.39 |
||
|
57601
|
57601
57601-12924 Member Sub-Assy, Rear Floor Side, Rh[05.1995 - 04.1997] AE100,101,CE100 |
57601-12924 |
US $546 |
||
|
57602
|
57602
57602-12926 Member Sub-Assy, Rear Floor Side, Lh[05.1995 - 04.1997] AE100,101,CE100 |
57602-12926 |
US $486.30 |
||
|
57605B
|
57605B
57605-12150
Member Sub-Assy, Rear Floor Cross, No.1
[05.1993 - 08.2000] AE100,101,CE100,101,EE101..4DS,WG |
57605-12150 |
— | ||
|
57615A
|
57615A
57615-12903
Member, Rear Floor Side, Rear Rh
[05.1995 - 04.1997] AE100,101,104,CE100 |
57615-12903 |
— | ||
|
57616A
|
57616A
57616-12905
Member, Rear Floor Side, Rear Lh
[05.1995 - 04.1997] AE100,101,104,CE100 |
57616-12905 |
— | ||
|
57704
|
57704
57695-12030
Extension, Rear Floor Cross Rear Side, Rh
[05.1993 - 08.2000] AE100,101,CE100,101,EE101 右側 |
57695-12030 |
— | ||
|
57704
|
57704
57696-12030
Extension, Rear Floor Cross Rear Side, Lh
[05.1993 - 08.2000] AE100,101,CE100,101,EE101 左側 |
57696-12030 |
— | ||
|
57805D
|
57805D
57805-12060 Reinforcement Assy, No.1 Seat Leg, Rear No.1[05.1997 - 08.2000] AE100,101,104,CE100,101 |
57805-12060 |
US $21.55 |
||
|
9011506243
|
9011506243
90115-06243 Bolt, Weld(For Front Floor Panel, Center) |
90115-06243 |
US $1.28 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.12 |
||
|
9033330008
|
9033330008
90333-30008 PLUG PLATE |
90333-30008 |
from US $1.12 |
||
|
9046706131
|
9046706131
90467-06131 New Genuine Part |
90467-06131 |
US $2.62 |
||
| replacement | |||||
|
9046706131
|
9046706131
90467-06131-B2 Clip |
90467-06131-B2 |
US $1.22 |
||
|
9095001025
|
9095001025
90950-01025 Plug, Hole(For Front Fender Apron) |
90950-01025 |
US $3.84 |
||
|
9095001539
|
9095001539
90950-01539 PLUG HOLE |
90950-01539 |
from US $1.42 |
||
|
9095001550
|
9095001550
90950-01550 PLUG HOLE |
90950-01550 |
US $2.08 |
||
|
9095001631
|
9095001631
90950-01631 Plug Hole |
90950-01631 |
US $1.92 |
||
|
9095001769
|
9095001769
90950-01769 New Genuine Part |
90950-01769 |
US $2.62 |
||
|
9095001826
|
9095001826
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001847
|
9095001847
90950-01847
New Genuine Part
|
90950-01847 |
— | ||
|
9095006001
|
9095006001
90950-06001 Protector, Front Side Panel, No.3 |
90950-06001 |
US $2.72 |
||
|
9095006108
|
9095006108
90950-06108 COVER HOLE |
90950-06108 |
from US $0.80 |
||
