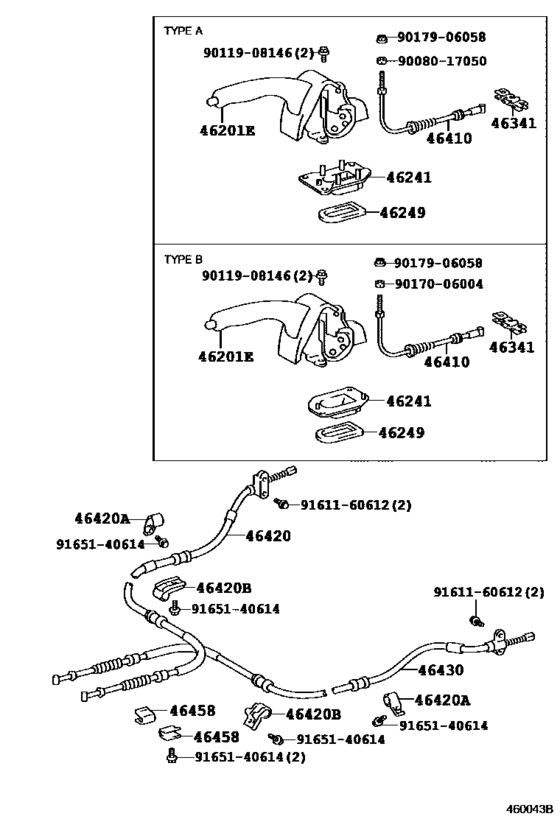

Parking Brake & Cable ([05.1995 - ] (9505- )AE100,CE100) Diagram Toyota COROLLA
- Year
- 1995 - 1998
- Sales region
- Japan
- Frame
- CE100
- grade
- G
- body
- WG
- ENGINE
- 2C
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 05.1995
- To
- 04.1998
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46201E
|
46201E
46201-02020-B0 Lever Sub-Assy, Parking Brake[06.1993 - 01.1996] AE100,101,CE100,EE101..G,LT,LX,SEG,SEL,SJ,XE TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SHADOW GRAY,TRIM1# |
46201-02020-B0 |
US $69.60 |
||
| replacement | |||||
|
46201E
|
46201E
46201-02021-B0 Lever Sub-Assy, Parking Brake[06.1993 - 01.1996] AE100,101,CE100,EE101..G,LT,LX,SEG,SEL,SJ,XE TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SHADOW GRAY,TRIM1# |
46201-02021-B0 |
US $69.74 |
||
|
46201E
|
46201E
46201-02021-B0 Lever Sub-Assy, Parking Brake[01.1996 - 05.1997] AE100,CE100 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SHADOW GRAY,TRIM1# |
46201-02021-B0 |
US $69.74 |
||
|
46201E
|
46201E
46201-12190-B0
Lever Sub-Assy, Parking Brake
[05.1995 - 05.1997] AE100,CE100 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,SHADOW GRAY,TRIM1# |
46201-12190-B0 |
— | ||
| replacement | |||||
|
46201E
|
46201E
46201-12190-C0 Lever Sub-Assy, Parking Brake (Black)[05.1995 - 05.1997] AE100,CE100 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,SHADOW GRAY,TRIM1# |
46201-12190-C0 |
US $69.74 |
||
|
46201E
|
46201E
46201-12190-B3
Lever Sub-Assy, Parking Brake
[05.1997 - 08.2000] AE104,CE101 DK.CHARCOAL,TRIM1#; AE100,CE100 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,DK.CHARCOAL,TRIM1# |
46201-12190-B3 |
— | ||
| replacement | |||||
|
46201E
|
46201E
46201-12190-C0 Lever Sub-Assy, Parking Brake (Black)[05.1997 - 08.2000] AE104,CE101 DK.CHARCOAL,TRIM1#; AE100,CE100 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,DK.CHARCOAL,TRIM1# |
46201-12190-C0 |
US $69.74 |
||
|
46241
|
46241
46241-02010 Boot, Parking Brake Lever[06.1993 - 05.1997] AE100,CE100..WG TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
46241-02010 |
US $10.48 |
||
|
46241
|
46241
46241-12110
Boot, Parking Brake Lever
[05.1995 - 08.2000] AE100,CE100 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
46241-12110 |
— | ||
|
46249
|
46249
46249-02010 Shield, Parking Brake Hole[06.1993 - 05.1997] AE100,101,CE100,EE101..G,LT,LX,SEG,SEL,SJ,XE （Ｌ） |
46249-02010 |
US $34.07 |
||
|
46249
|
46249
46249-12010
Shield, Parking Brake Hole
[06.1993 - 04.1997] AE100,101,CE100,EE101..G,LT,LX,SEG,SEL,SJ,XE （Ｊ）; AE104,CE104;AE100,101,109,CE100,106,108,109,EE10#..BZT,CTD,DX,DXJ,GL,GT,L |
46249-12010 |
— | ||
|
46341
|
46341
46341-12020 Equalizer, Parking Brake[06.1991 -] AE10#,CE10#,EE10# |
46341-12020 |
US $7.04 |
||
|
46410
|
46410
46410-02030
Cable Assy, Parking Brake, No.1
[05.1995 - 05.1997] AE100,CE100 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
46410-02030 |
— | ||
|
46410
|
46410
46410-12250 Cable Assy, Parking Brake, No.1[05.1995 - 08.2000] AE100,CE100 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
46410-12250 |
US $26.21 |
||
|
46420
|
46420
46420-02030 Cable Assy, Parking Brake, No.2[06.1993 - 05.1997] AE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE （Ｌ） |
46420-02030 |
US $66.25 |
||
|
46420
|
46420
46420-12400 Cable Assy, Parking Brake, No.2[05.1995 - 04.1997] CE100 |
46420-12400 |
US $56.35 |
||
|
46420A
|
46420A
90949-01746 Clamp, No.1(For Parking Brake Cable)[06.1991 -] AE10#,CE10#,EE10# |
90949-01746 |
US $4.02 |
||
|
46420B
|
46420B
90949-01744
Clamp, No.2(For Parking Brake Cable)
[06.1991 -] AE100,101,CE100,101,102,106,107,108,EE10# 左側 |
90949-01744 |
— | ||
|
46420B
|
46420B
90949-01747
Clamp, No.2(For Parking Brake Cable)
[06.1991 - 04.1997] AE100,101,CE100,106,108,EE10# 右側 |
90949-01747 |
— | ||
|
46430
|
46430
46430-02030 Cable Assy, Parking Brake, No.3[06.1993 - 05.1997] AE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE （Ｌ） |
46430-02030 |
US $66.25 |
||
|
46430
|
46430
46430-12300 Cable Assy, Parking Brake, No.3[05.1995 - 04.1997] CE100 |
46430-12300 |
US $56.35 |
||
|
46458
|
46458
46458-50010 Retainer, Cable[06.1991 -] AE10#,CE10#,EE10# |
46458-50010 |
from US $5.44 |
||
|
9008017050
|
9008017050
90080-17050
New Genuine Part
|
90080-17050 |
— | ||
|
9011908146
|
9011908146
90119-08146
Bolt(For Parking Brake Setting)
|
90119-08146 |
— | ||
|
9017006004
|
9017006004
90170-06004 Nut, Wire Adjusting, No.1 |
90170-06004 |
US $2.08 |
||
|
9017906058
|
9017906058
90179-06058
Nut, Wire Adjusting, No.1
|
90179-06058 |
— | ||
| replacement | |||||
|
9017906058
|
9017906058
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.72 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt |
91611-G0612 |
from US $0.82 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $2.05 |
||
