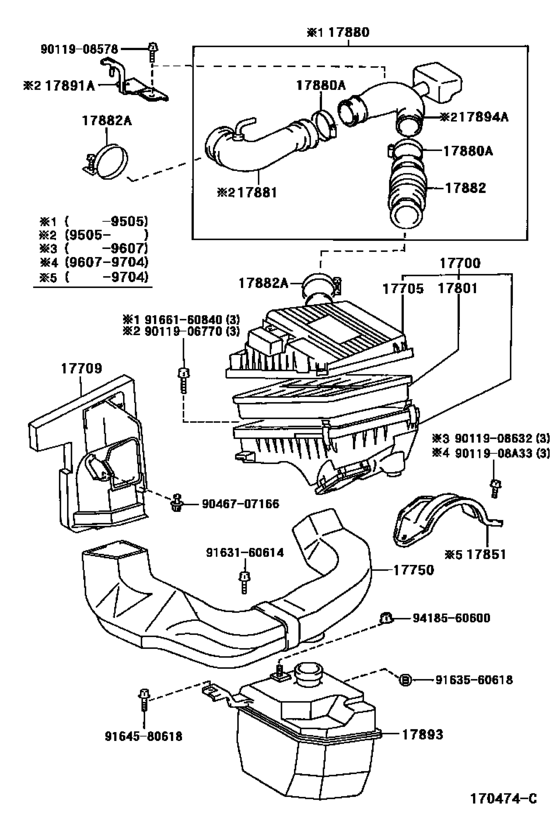

Air Cleaner ([05.1992 - ] (9205- )2C) Diagram Toyota COROLLA
- Year
- 1992 - 1997
- Sales region
- General
- Frame
- CE100
- grade
- XL
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 04.1997
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-64270 Cleaner Assy, Air[05.1992 - 05.1995] 2C..CE100 |
17700-64270 |
US $422.24 |
||
|
17700
|
17700
17700-64340 Cleaner Assy, Air[05.1995 - 04.1997] 2C..CE100 |
17700-64340 |
US $419.33 |
||
|
17705
|
17705
17705-64160
Cap Sub-Assy, Air Cleaner
[05.1992 - 04.1997] 2C..CE100 |
17705-64160 |
— | ||
|
17709
|
17709
17709-64010 Inlet Sub-Assy, Air Cleaner[05.1992 - 05.1993] 2C..CE100 |
17709-64010 |
US $88.82 |
||
| replacement | |||||
|
17709
|
17709
17709-64011 Inlet Sub-Assy, Air Cleaner[05.1992 - 05.1993] 2C..CE100 |
17709-64011 |
US $90.27 |
||
|
17709
|
17709
17709-64011 Inlet Sub-Assy, Air Cleaner[05.1993 -] 2C..CE100 |
17709-64011 |
US $90.27 |
||
|
17750
|
17750
17750-64010 Cover Assy, Air Cleaner Inlet, Seal[05.1992 - 05.1995] 2C..CE100 |
17750-64010 |
US $74.26 |
||
|
17750
|
17750
17750-64020 Cover Assy, Air Cleaner Inlet, Seal[05.1995 -] 2C..CE100 |
17750-64020 |
US $74.26 |
||
|
17801
|
17801
17801-64070 Element Sub-Assy, Air Cleaner Filter[05.1992 -] 2C..CE100 |
17801-64070 |
from US $26.73 |
||
|
17851
|
17851
17851-64030 Bracket, Air Cleaner Support[05.1992 - 05.1995] 2C..CE100 |
17851-64030 |
US $29.99 |
||
|
17851
|
17851
17851-64040 Bracket, Air Cleaner Support[05.1995 - 07.1996] 2C..CE100 |
17851-64040 |
US $29.99 |
||
| replacements | |||||
|
17851
|
17851
17851-64041 Bracket, Air Cleaner Support[05.1995 - 07.1996] 2C..CE100 |
17851-64041 |
US $29.99 |
||
|
17851
|
17851
90119-08A33 BOLT[05.1995 - 07.1996] 2C..CE100 |
90119-08A33 |
from US $0.80 |
||
|
17851
|
17851
17851-64041 Bracket, Air Cleaner Support[07.1996 - 04.1997] 2C..CE100 |
17851-64041 |
US $29.99 |
||
|
17880
|
17880
17880-64191 Hose Assy, Air Cleaner[05.1992 - 05.1995] 2C..CE100 |
17880-64191 |
US $84.45 |
||
|
17880A
|
17880A
90460-65007 Clamp, Hose(For Air Hose, No.3)[05.1992 - 02.1997] 2C..CE100 |
90460-65007 |
US $5.39 |
||
| replacement | |||||
|
17880A
|
17880A
90460-65002 Clamp Or Clip(For Air Hose, No.1)[05.1992 - 02.1997] 2C..CE100 |
90460-65002 |
from US $4.29 |
||
|
17880A
|
17880A
96111-10630 Clamp, Hose[02.1997 -] 2C..CE100 |
96111-10630 |
US $3.68 |
||
|
17881
|
17881
17881-64300
Hose, Air Cleaner, No.1
[05.1995 -] 2C..CE100 |
17881-64300 |
— | ||
|
17882
|
17882
17882-64070
Hose, Air Cleaner, No.2
[05.1992 -] 2C..CE100 |
17882-64070 |
— | ||
|
17882A
|
17882A
96111-10650 Clamp(For Air Cleaner Inlet, No.1)[05.1992 -] 2C..CE100 |
96111-10650 |
from US $2.89 |
||
|
17891A
|
17891A
17891-64010 Clamp, Air Cleaner Hose[05.1995 -] 2C..CE100 |
17891-64010 |
US $5.39 |
||
|
17893
|
17893
17893-15040 Resonator, Intake Air[05.1992 - 05.1995] 2C..CE100; 4EFE,5EFE..EE101,104 (J) |
17893-15040 |
US $106.29 |
||
|
17893
|
17893
17893-15050 Resonator, Intake Air[05.1995 -] 2C..CE100 |
17893-15050 |
US $168.90 |
||
|
17894A
|
17894A
17894-64040 Resonator, Intake Air, No.2[05.1995 -] 2C..CE100 |
17894-64040 |
US $51.83 |
||
|
9011908A33
|
9011908A33
90119-08A33 BOLT |
90119-08A33 |
from US $0.80 |
||
|
9011906770
|
9011906770
90119-06770 New Genuine Part |
90119-06770 |
US $1.75 |
||
| replacement | |||||
|
9011906770
|
9011906770
90119-06859 BOLT WWASHER |
90119-06859 |
from US $1.09 |
||
|
9011908578
|
9011908578
90119-08578 New Genuine Part |
90119-08578 |
US $1.89 |
||
| replacement | |||||
|
9011908578
|
9011908578
90119-08B80 New Genuine Part |
90119-08B80 |
US $1.75 |
||
|
9011908632
|
9011908632
90119-08632 New Genuine Part |
90119-08632 |
US $2.04 |
||
| replacement | |||||
|
9011908632
|
9011908632
91621-40816 BOLTWWASHER |
91621-40816 |
from US $1.05 |
||
|
9046707166
|
9046707166
90467-07166 Clip(For Front Fender Apron Seal) |
90467-07166 |
from US $0.90 |
||
|
9163160614
|
9163160614
91631-60614 BOLT |
91631-60614 |
US $1.60 |
||
| replacement | |||||
|
9163160614
|
9163160614
91661-60616 BOLT |
91661-60616 |
from US $0.74 |
||
|
9163560618
|
9163560618
91635-60618 New Genuine Part |
91635-60618 |
US $2.62 |
||
| replacement | |||||
|
9163560618
|
9163560618
91631-B0614 BOLT WWASHER |
91631-B0614 |
from US $0.88 |
||
|
9164580618
|
9164580618
91645-80618
Direct
|
91645-80618 |
— | ||
| replacement | |||||
|
9164580618
|
9164580618
91641-C0614 Bolt |
91641-C0614 |
from US $0.72 |
||
|
9166160840
|
9166160840
91661-60840 Bolt |
91661-60840 |
US $2.24 |
||
|
9418560600
|
9418560600
94185-60600 Nut, Wire Adjusting, No.1 |
94185-60600 |
from US $0.76 |
||
