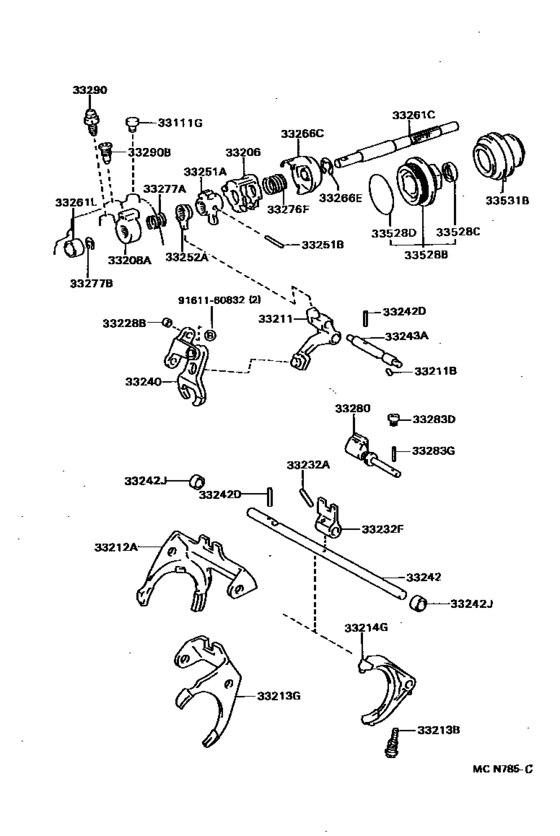

Gear Shift Fork & Lever Shaft (Mtm) ([05.1992 - 06.1992] S50 (9205-9206)CE100) Diagram Toyota COROLLA
- Year
- 1992 - 1997
- Sales region
- General
- Frame
- CE100
- grade
- XL
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 04.1997
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33111G
|
33111G
90930-03133 Plug, Breather[03.1992 - 09.1994] AE100,101,CE100,EE10#..MTM |
90930-03133 |
from US $5.92 |
||
|
33206
|
33206
33206-32023
Plate Sub-Assy, Shift Inter Lock
[05.1992 - 06.1992] CE100 |
33206-32023 |
— | ||
|
33208A
|
33208A
33208-32022
Pin Sub-Assy, Reverse Restrict
[05.1992 - 06.1992] CE100 |
33208-32022 |
— | ||
|
33211
|
33211
33270-33011 Fork, Reverse Shift[05.1992 - 11.2001] CE100 |
33270-33011 |
US $63.34 |
||
|
33211B
|
33211B
90361-08002 Roller(For Reverse Shift Fork)[05.1992 - 11.2001] CE100 |
90361-08002 |
US $3.06 |
||
|
33212A
|
33212A
33210-32023 Fork, Gear Shift, No.1[05.1992 - 11.2001] CE100 |
33210-32023 |
US $216.94 |
||
|
33213B
|
33213B
90105-06065 Bolt(For Shift Fork Set)[05.1992 - 11.2001] CE100 |
90105-06065 |
US $2.33 |
||
|
33213G
|
33213G
33220-32023 Fork, Gear Shift, No.2[05.1992 - 06.1998] CE100 |
33220-32023 |
US $104.83 |
||
| replacement | |||||
|
33213G
|
33213G
33220-32024
Fork, Gear Shift, No.2
[05.1992 - 06.1998] CE100 |
33220-32024 |
— | ||
|
33214G
|
33214G
33214-33010 Fork, Gear Shift, No.3[06.1992 - 11.2001] CE100 |
33214-33010 |
US $58.53 |
||
|
33214G
|
33214G
33214-33020 Fork, Gear Shift, No.3[05.1992 - 06.1992] CE100 |
33214-33020 |
US $52.71 |
||
|
33228B
|
33228B
90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting)[05.1992 - 11.2001] CE100 |
90253-11001 |
US $1.92 |
||
|
33232A
|
33232A
90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)[05.1992 - 11.2001] CE100 |
90254-05001 |
from US $1.03 |
||
|
33232F
|
33232F
33232-32012 Head, Gear Shift, No.1[05.1992 - 11.2001] CE100 |
33232-32012 |
US $42.37 |
||
|
33240
|
33240
33240-33010 Bracket Assy, Reverse Shift Arm[05.1992 - 11.2001] CE100 |
33240-33010 |
US $99.01 |
||
|
33242
|
33242
33242-33020 Shaft, Gear Shift Fork, No.1[05.1992 - 11.2001] CE100 |
33242-33020 |
US $56.93 |
||
|
33242D
|
33242D
90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)[05.1992 - 11.2001] CE100 |
90254-05001 |
from US $1.03 |
||
|
33242J
|
33242J
90384-14005 Bush (For Shift Fork Shaft)[05.1992 - 11.2001] CE100 L=12.0 |
90384-14005 |
US $3.49 |
||
|
33242J
|
33242J
90389-14043 Bush (For Shift Fork Shaft)[05.1992 - 11.2001] CE100 L=10.1 |
90389-14043 |
US $3.49 |
||
|
33243A
|
33243A
33243-32010 Shaft, Reverse Shift Fork[05.1992 - 06.1998] CE100 |
33243-32010 |
US $19.95 |
||
| replacement | |||||
|
33243A
|
33243A
33243-32011 Shaft, Gear Shift Fork, No.2[05.1992 - 06.1998] CE100 |
33243-32011 |
US $20.68 |
||
|
33251A
|
33251A
33251-32031
Lever, Shift, Inner No.1
[05.1992 - 06.1992] CE100 |
33251-32031 |
— | ||
|
33251A
|
33251A
33251-33010 Lever, Shift, Inner No.1[06.1992 - 06.1998] CE100 |
33251-33010 |
US $19.36 |
||
| replacement | |||||
|
33251A
|
33251A
33251-33011
Lever, Shift, Inner No.1
[06.1992 - 06.1998] CE100 |
33251-33011 |
— | ||
|
33251B
|
33251B
90254-05007 Pin, Slotted Spring (For Shift Inner Lever)[05.1992 - 11.2001] CE100 L=47.0 |
90254-05007 |
US $3.68 |
||
|
33252A
|
33252A
33252-32030 Lever, Shift, Inner No.2[05.1992 - 06.1992] CE100 |
33252-32030 |
US $24.32 |
||
|
33252A
|
33252A
33252-33010 Lever, Shift, Inner No.2[06.1992 - 11.2001] CE100 |
33252-33010 |
US $8.88 |
||
|
33261C
|
33261C
33261-33010
Shaft, Shift & Select Lever
[05.1992 - 11.2001] CE100 |
33261-33010 |
— | ||
|
33261L
|
33261L
90384-15002 Bush, Bimetal Formed(For Outer Select Lever)[05.1992 - 11.2001] CE100 |
90384-15002 |
US $1.76 |
||
|
33266C
|
33266C
33266-32022 Plate, Shift Inter Lock[05.1992 - 06.1992] CE100 |
33266-32022 |
US $19.22 |
||
|
33266C
|
33266C
33266-33010 Plate, Shift Inter Lock[06.1992 - 08.1992] CE100 |
33266-33010 |
US $13.40 |
||
| replacement | |||||
|
33266C
|
33266C
33266-33011 Plate, Shift Inter Lock[06.1992 - 08.1992] CE100 |
33266-33011 |
US $13.69 |
||
|
33266C
|
33266C
33266-33011 Plate, Shift Inter Lock[08.1992 - 11.2001] CE100 |
33266-33011 |
US $13.69 |
||
|
33266E
|
33266E
90523-14001 Ring, E(For Bleeder Clutch Release Tube)[05.1992 - 11.2001] CE100 |
90523-14001 |
US $1.75 |
||
|
33276F
|
33276F
90501-13036 Spring, Compression, No.1 (For Select Return)[06.1992 - 11.2001] CE100 |
90501-13036 |
US $1.89 |
||
|
33276F
|
33276F
90501-14129
Spring, Compression, No.1 (For Select Return)
[05.1992 - 06.1992] CE100 |
90501-14129 |
— | ||
|
33277A
|
33277A
90501-15009
Spring, Compression, No.2 (For Select Return)
[05.1992 - 06.1992] CE100 |
90501-15009 |
— | ||
|
33277A
|
33277A
90501-16135 Spring, Compression, No.2 (For Select Return)[06.1992 - 02.1994] CE100 |
90501-16135 |
US $3.20 |
||
| replacement | |||||
|
33277A
|
33277A
90501-16144 Spring, Compression, No.2 (For Select Return)[06.1992 - 02.1994] CE100 |
90501-16144 |
US $3.20 |
||
|
33277A
|
33277A
90501-16144 Spring, Compression, No.2 (For Select Return)[02.1994 - 11.2001] CE100 |
90501-16144 |
US $3.20 |
||
|
33277B
|
33277B
90523-12003 Ring, E(For Reverse Restrict Pin)[08.1991 - 09.1994] AE100,101,CE100,EE10#..MTM |
90523-12003 |
US $0.61 |
||
|
33280
|
33280
33280-32012 Pin Assy, Reverse Restrict[05.1992 - 11.2001] CE100 |
33280-32012 |
US $44.84 |
||
|
33283D
|
33283D
90341-10065 Plug, Straight, No.1[08.1991 - 09.1994] AE100,101,CE100,EE10#..5F |
90341-10065 |
from US $3.52 |
||
|
33283G
|
33283G
90254-04005 Pin, Slotted Spring (For Reverse Restrict Pin)[05.1992 - 11.2001] CE100 |
90254-04005 |
US $0.96 |
||
|
33290
|
33290
33290-17010 Ball Assy, Lock, No.1[05.1992 - 06.1992] CE100 |
33290-17010 |
US $28.97 |
||
|
33290
|
33290
33290-33010 Ball Assy, Lock, No.1[06.1992 - 02.1996] CE100 |
33290-33010 |
US $26.35 |
||
| replacement | |||||
|
33290
|
33290
33290-52040 Ball Assy, Lock, No.1[06.1992 - 02.1996] CE100 |
33290-52040 |
US $16.60 |
||
|
33290
|
33290
33290-33011
Ball Assy, Lock, No.1
[02.1996 - 11.2001] CE100 |
33290-33011 |
— | ||
| replacement | |||||
|
33290
|
33290
33290-52040 Ball Assy, Lock, No.1[02.1996 - 11.2001] CE100 |
33290-52040 |
US $16.60 |
||
|
33290B
|
33290B
33290-32021 Ball Assy, Lock, No.2[05.1992 - 06.1992] CE100 |
33290-32021 |
US $20.82 |
||
|
33290B
|
33290B
90341-16015 Plug(For Transaxle Case)[06.1992 - 11.1994] CE100 |
90341-16015 |
US $4.22 |
||
|
33528B
|
33528B
33506-33010 Cover, Control Shaft[05.1992 - 11.2001] CE100 |
33506-33010 |
US $36.69 |
||
|
33528C
|
33528C
90311-18013 Seal, Oil (For Control Shaft Cover)[05.1992 - 10.1992] CE100 |
90311-18013 |
from US $2.32 |
||
|
33528D
|
33528D
90301-65004
Ring, O (For Control Shaft Cover)
[05.1992 - 11.2001] CE100 |
90301-65004 |
— | ||
|
33531B
|
33531B
33531-32011 Boot, Dust (For Shift & Select Lever Shaft)[05.1992 - 06.1992] CE100 |
33531-32011 |
US $10.48 |
||
|
9161160832
|
9161160832
91611-60832 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91611-60832 |
US $2.77 |
||
