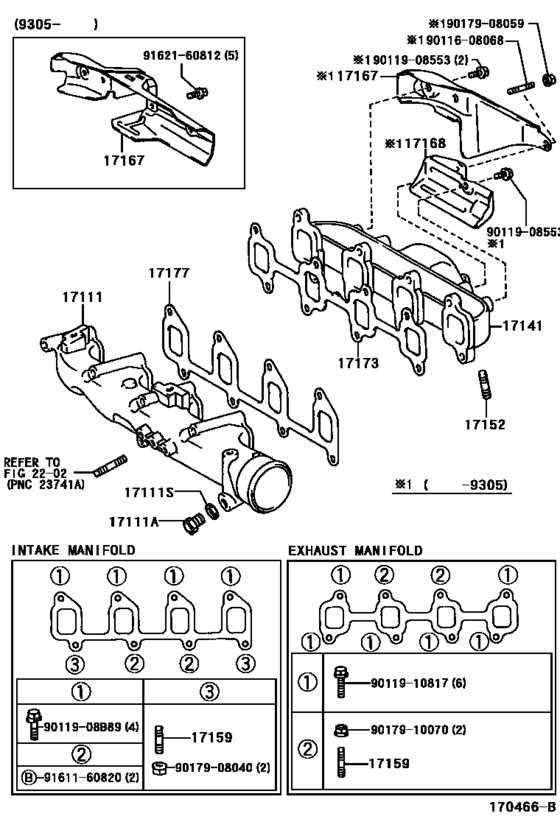

Manifold ([05.1992 - ] (9205- )2C) Diagram Toyota COROLLA
- Year
- 1992 - 1997
- Sales region
- General
- Frame
- CE100
- grade
- XL
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 04.1997
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17111-64150 Manifold, Intake[05.1992 -] 2C..CE100 |
17111-64150 |
US $165.98 |
||
|
17111A
|
17111A
90341-18006 Plug (No magnet)[05.1992 -] 2C..CE100 |
90341-18006 |
US $2.88 |
||
|
17111S
|
17111S
90430-18001 Gasket, Straight Screw Plug No.1(For Cylinder Block)[05.1992 -] 2C..CE100 |
90430-18001 |
US $2.72 |
||
|
17141
|
17141
17141-64101 Manifold, Exhaust[05.1992 - 05.1993] 2C..CE100 |
17141-64101 |
US $270.82 |
||
|
17141
|
17141
17141-64210 Manifold, Exhaust[05.1993 - 04.2000] 2C..CE100 |
17141-64210 |
US $291.20 |
||
|
17152
|
17152
90116-10058 Bolt, Stud(For Manifold Extension)[05.1992 - 07.1993] 2C..CE100 |
90116-10058 |
from US $2.44 |
||
|
17152
|
17152
90116-10146 Bolt, Stud(For Manifold To Exhaust Pipe)[03.1994 -] 2C..CE100 |
90116-10146 |
from US $1.91 |
||
|
17152
|
17152
90126-10003 Bolt, Stud(For Turbocharger)[07.1993 - 03.1994] 2C..CE100 |
90126-10003 |
US $18.06 |
||
|
17159
|
17159
90116-10095 Bolt, Stud(For Manifold To Cylinder Head)[05.1992 - 12.1995] 2C..CE100 EXHAUST SIDE |
90116-10095 |
US $1.40 |
||
|
17159
|
17159
90126-10017 Bolt, Stud(For Exhaust Manifold, Rh)[12.1995 -] 2C..CE100 EXHAUST SIDE |
90126-10017 |
from US $3.39 |
||
|
17159
|
17159
92122-60820 Bolt, Stud(For Water Outlet)[05.1992 -] 2C..CE100 INTAKE SIDE |
92122-60820 |
US $2.97 |
||
|
17167
|
17167
17167-64070 Insulator, Exhaust Manifold Heat, No.1[05.1992 - 05.1993] 2C..CE100 |
17167-64070 |
US $25.48 |
||
|
17167
|
17167
17167-64090 Insulator, Exhaust Manifold Heat, No.1[05.1993 - 04.1998] 2C..CE100 |
17167-64090 |
US $85.90 |
||
| replacement | |||||
|
17167
|
17167
17167-64120 Insulator, Exhaust Manifold Heat, No.1[05.1993 - 04.1998] 2C..CE100 |
17167-64120 |
US $36.84 |
||
|
17168
|
17168
17168-64050 Insulator, Exhaust Manifold Heat, No.2[05.1992 - 05.1993] 2C..CE100 |
17168-64050 |
US $28.54 |
||
|
17173
|
17173
17173-64060 Gasket, Exhaust Manifold To Head[05.1992 -] 2C..CE100 |
17173-64060 |
from US $17.24 |
||
|
17177
|
17177
17177-64020 Gasket, Intake Manifold To Head, No.1[05.1992 -] 2C..CE100 |
17177-64020 |
from US $4.60 |
||
|
9011908B89
|
9011908B89
90119-08B89 New Genuine Part |
90119-08B89 |
US $1.46 |
||
|
9011608068
|
9011608068
90116-08068 New Genuine Part |
90116-08068 |
US $4.48 |
||
|
9011908553
|
9011908553
90119-08553 New Genuine Part |
90119-08553 |
US $1.09 |
||
|
9011910817
|
9011910817
90119-10817 New Genuine Part |
90119-10817 |
US $3.52 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.13 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.84 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.46 |
||
| replacement | |||||
|
9017910070
|
9017910070
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $33.80 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.31 |
||
|
9162160812
|
9162160812
91621-60812
BOLTWWASHER
|
91621-60812 |
— | ||
| replacement | |||||
|
9162160812
|
9162160812
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.88 |
||
