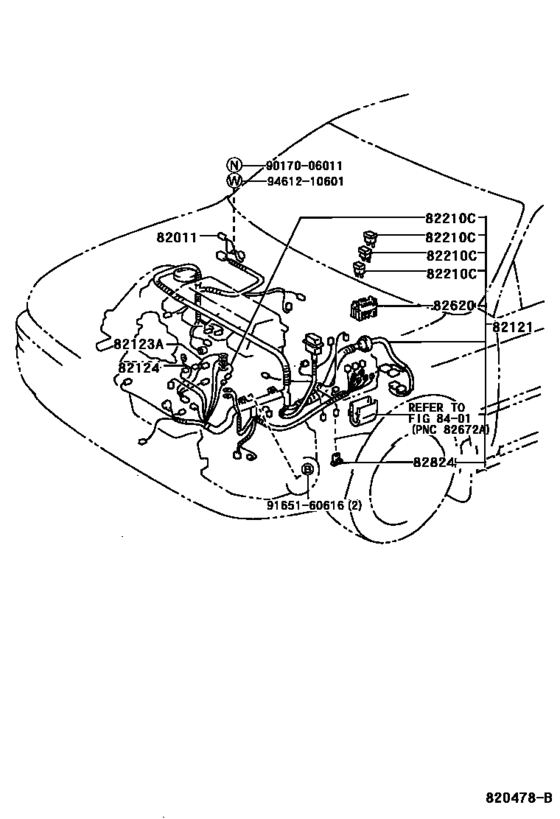

Wiring & Clamp ([05.1992 - ] ENGINE (9205- )CE100) Diagram Toyota COROLLA
- Year
- 1992 - 1997
- Sales region
- General
- Frame
- CE100
- grade
- XL
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 04.1997
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82011
|
82011
82011-12020 Wiring Assy, Brake Warning System[05.1992 -] CE100 |
82011-12020 |
US $6.84 |
||
|
82121
|
82121
82121-1K400 Wire, Engine[05.1992 - 11.1994] CE100 |
82121-1K400 |
US $564.93 |
||
| replacement | |||||
|
82121
|
82121
82121-1K401 Wire, Engine[05.1992 - 11.1994] CE100 |
82121-1K401 |
US $537.26 |
||
|
82121
|
82121
82121-1K401 Wire, Engine[11.1994 - 05.1995] CE100 |
82121-1K401 |
US $537.26 |
||
|
82121
|
82121
82121-1N090 Wire, EngineENGINE [05.1995 - 04.1997] CE100..LHD |
82121-1N090 |
US $538.72 |
||
|
82123A
|
82123A
82123-20020 Wire, Engine, No.3ENGINE, NO.3 [05.1992 - 11.1997] CE100 |
82123-20020 |
US $5.39 |
||
|
82124
|
82124
82124-12100 Wire, Engine, No.4ENGINE, NO.4 [05.1992 - 11.1997] CE100 |
82124-12100 |
US $8.88 |
||
|
82210C
|
82210C
90982-08188 Fusible Link[08.1991 - 09.1994] AE10#,CE100,EE100,101,104,105 30A,TERMINAL:FEMALE |
90982-08188 |
from US $5.13 |
||
|
82210C
|
82210C
90982-08203 Fusible Link[05.1992 - 04.1997] CE100..LHD 80A,TERMINAL:MALE |
90982-08203 |
from US $7.36 |
||
|
82210C
|
82210C
90982-08206
Fusible Link
[05.1992 - 04.1997] CE100..LHD GLOW RESISTER |
90982-08206 |
— | ||
|
82620
|
82620
82620-12230 Block Assy, Fusible Link[05.1992 -] CE100 |
82620-12230 |
US $29.41 |
||
|
82824
|
82824
82824-20050 Connector, Wiring Harness[11.1994 - 09.1995] AE10#,CE100,EE10#..SED,WG |
82824-20050 |
US $12.67 |
||
|
9017006011
|
9017006011
90170-06011 NUT HEXAGON |
90170-06011 |
US $0.80 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
|
9461210601
|
9461210601
94612-10601 New Genuine Part |
94612-10601 |
US $0.87 |
||
