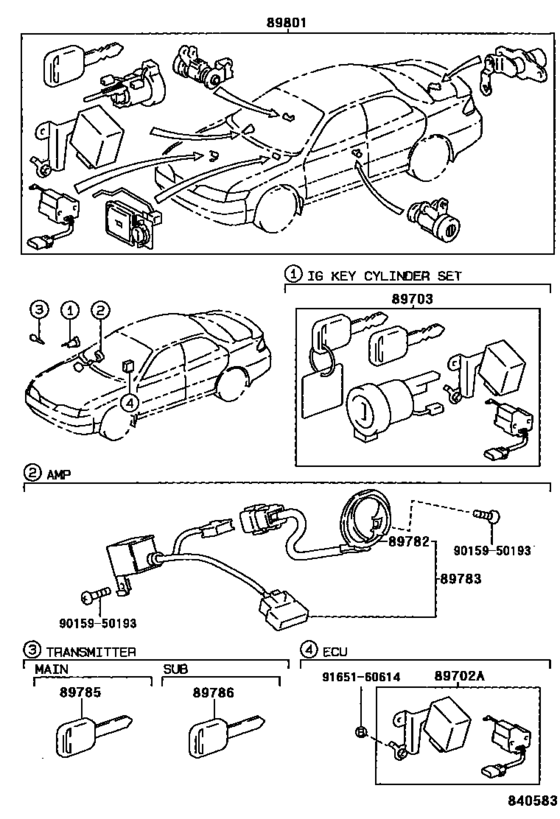

Anti-Theft Device ([05.1996 - ] (9605- )CE100) Diagram Toyota COROLLA
- Year
- 1992 - 1997
- Sales region
- Europe
- Frame
- CE100
- grade
- XL
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 04.1997
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89702A
|
89702A
89702-12020
Computer Set, Transponder W/valve Control
[05.1996 -] CE100..LHD |
89702-12020 |
— | ||
|
89703
|
89703
89703-12090
Cylinder & Key Set, Ignition W/transponder
[05.1996 -] CE100..LHD..SED |
89703-12090 |
— | ||
|
89782
|
89782
89782-12010
Coil, Transponder Key
[05.1996 -] AE10#,CE100,EE101 |
89782-12010 |
— | ||
|
89783
|
89783
89783-12010 Amplifier, Transponder KeyTRANSPONDER KEY [05.1996 -] AE10#,CE100,EE101 |
89783-12010 |
US $123.76 |
||
|
89785
|
89785
89785-12020
Transmitter, Transponder Key Master
[05.1996 -] AE101,CE100,EE101..SED |
89785-12020 |
— | ||
|
89786
|
89786
89786-12020
Transmitter, Transponder Key Sub
[05.1996 -] AE101,CE100,EE101..SED |
89786-12020 |
— | ||
|
89801
|
89801
89801-12050
Computer Set, Transponder Key Diesel
[05.1996 -] CE100..LHD..SED |
89801-12050 |
— | ||
|
9015950193
|
9015950193
90159-50193 New Genuine Part |
90159-50193 |
US $0.87 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
