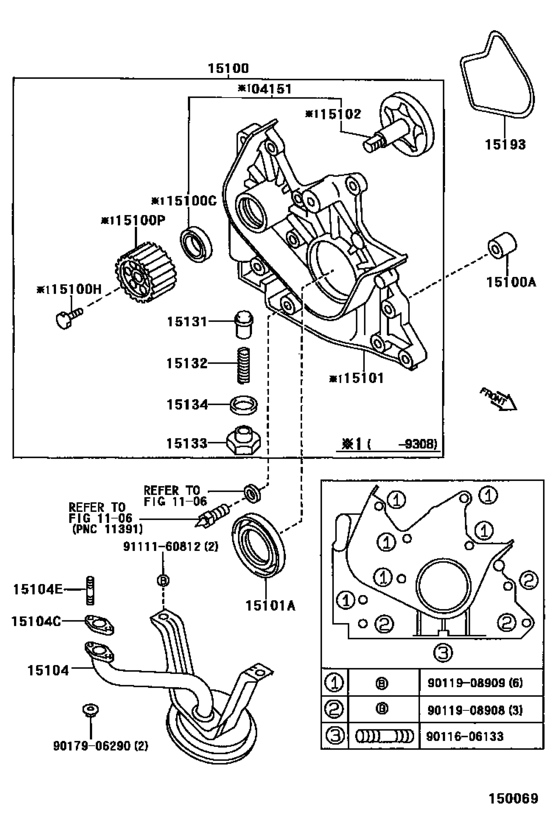

Engine Oil Pump ([05.1992 - ] (9205- )2C) Diagram Toyota COROLLA
- Year
- 1992 - 1997
- Sales region
- Europe
- Frame
- CE100
- grade
- XL
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 04.1997
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04151
|
04151
04151-64020 Rotor Kit, Oil Pump[05.1992 - 08.1993] 2C..CE100 |
04151-64020 |
from US $30.38 |
||
|
15100
|
15100
15100-64040 Pump Assy, Oil[05.1992 -] 2C..CE100 |
15100-64040 |
US $388.75 |
||
| replacements | |||||
|
15100
|
15100
15100-64042 Pump Assy, Oil[05.1992 -] 2C..CE100 |
15100-64042 |
from US $131.33 |
||
|
15100
|
15100
90119-08B81 New Genuine Part[05.1992 -] 2C..CE100 |
90119-08B81 |
US $1.49 |
||
|
15100A
|
15100A
90253-11021 Pin, Ring[05.1992 -] 4AFE,7AFE..AE10#; 2C..CE100 |
90253-11021 |
from US $1.50 |
||
|
15100C
|
15100C
90029-21022
Seal(For Oil Pump)
[05.1992 - 08.1993] 2C..CE100 |
90029-21022 |
— | ||
| replacements | |||||
|
15100C
|
15100C
04151-64010 Rotor Kit, Oil Pump[05.1992 - 08.1993] 2C..CE100 |
04151-64010 |
US $39.66 |
||
|
15100C
|
15100C
04151-64020 Rotor Kit, Oil Pump[05.1992 - 08.1993] 2C..CE100 |
04151-64020 |
from US $30.38 |
||
|
15100H
|
15100H
15189-55010 Bolt, Seal[05.1992 - 08.1993] 2C..CE100 |
15189-55010 |
US $3.93 |
||
|
15100P
|
15100P
13524-64020 Pulley, Oil Pump Drive Shaft[05.1992 - 08.1993] 2C..CE100 |
13524-64020 |
US $19.04 |
||
|
15101
|
15101
15101-64030 Body Sub-Assy, Oil Pump[05.1992 - 08.1993] 2C..CE100 |
15101-64030 |
US $263.54 |
||
| replacements | |||||
|
15101
|
15101
15100-64032 Pump Assy, Oil[05.1992 - 08.1993] 2C..CE100 |
15100-64032 |
US $301.39 |
||
|
15101
|
15101
15100-64042 Pump Assy, Oil[05.1992 - 08.1993] 2C..CE100 |
15100-64042 |
from US $131.33 |
||
|
15101
|
15101
90119-08B81 New Genuine Part[05.1992 - 08.1993] 2C..CE100 |
90119-08B81 |
US $1.49 |
||
|
15101A
|
15101A
90311-42026 Seal, Oil(For Timing Gear Case Or Timing Chain Case)[05.1992 - 01.1994] 2C..CE100 |
90311-42026 |
from US $5.60 |
||
|
15101A
|
15101A
90311-42030
Seal, Oil(For Timing Gear Case Or Timing Chain Case)
[01.1994 - 06.1996] 2C..CE100 |
90311-42030 |
— | ||
| replacement | |||||
|
15101A
|
15101A
90311-42031 Seal, Oil[01.1994 - 06.1996] 2C..CE100 |
90311-42031 |
from US $4.96 |
||
|
15101A
|
15101A
90311-42031 Seal, Oil[06.1996 -] 2C..CE100 |
90311-42031 |
from US $4.96 |
||
|
15102
|
15102
15102-64040
Rotor Set, Oil Pump
[05.1992 - 08.1993] 2C..CE100 |
15102-64040 |
— | ||
| replacement | |||||
|
15102
|
15102
04151-64020 Rotor Kit, Oil Pump[05.1992 - 08.1993] 2C..CE100 |
04151-64020 |
from US $30.38 |
||
|
15104
|
15104
15104-64060 Strainer Sub-Assy, Oil[05.1992 - 06.1992] 2C..CE100 |
15104-64060 |
US $88.82 |
||
| replacement | |||||
|
15104
|
15104
15104-64070 Strainer Sub-Assy, Oil[05.1992 - 06.1992] 2C..CE100 |
15104-64070 |
US $88.82 |
||
|
15104
|
15104
15104-64070 Strainer Sub-Assy, Oil[06.1992 -] 2C..CE100 |
15104-64070 |
US $88.82 |
||
|
15104C
|
15104C
15149-64030
Gasket(For Oil Strainer)
[05.1992 -] 2C..CE100 |
15149-64030 |
— | ||
| replacement | |||||
|
15104C
|
15104C
15149-64070 Gasket(For Oil Strainer)[05.1992 -] 2C..CE100 |
15149-64070 |
US $3.52 |
||
|
15104E
|
15104E
90116-06132 Bolt, Stud(For Oil Strainer)[05.1992 -] 2C..CE100 |
90116-06132 |
US $1.05 |
||
|
15131
|
15131
15131-64020 Valve, Oil Pump Relief[05.1992 -] 2C..CE100 |
15131-64020 |
US $9.26 |
||
|
15132
|
15132
15132-64012 Spring, Oil Pump Relief Valve[05.1992 -] 2C..CE100 |
15132-64012 |
US $3.93 |
||
|
15133
|
15133
15133-20010 Plug, Oil Pump Relief Valve[05.1992 -] 2C..CE100 |
15133-20010 |
US $6.56 |
||
|
15134
|
15134
15134-20010 Gasket, Oil Pump Relief Valve[05.1992 -] 2C..CE100 |
15134-20010 |
US $5.60 |
||
|
15193
|
15193
15193-64021
Gasket, Oil Pump
[05.1992 -] 2C..CE100 |
15193-64021 |
— | ||
| replacement | |||||
|
15193
|
15193
15193-64022 Gasket, Oil Pump[05.1992 -] 2C..CE100 |
15193-64022 |
from US $3.72 |
||
|
9011606133
|
9011606133
90116-06133 BOLT STUD |
90116-06133 |
from US $1.28 |
||
|
9011908908
|
9011908908
90119-08908 BOLT WWASHER |
90119-08908 |
US $1.22 |
||
|
9011908909
|
9011908909
90119-08909 New Genuine Part |
90119-08909 |
US $1.22 |
||
|
9017906290
|
9017906290
90179-06290 Nut, Cap(For Cylinder Head Cover) |
90179-06290 |
US $1.60 |
||
| replacement | |||||
|
9017906290
|
9017906290
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.72 |
||
|
9111160812
|
9111160812
91111-60812 Bolt(For Oil Receiver Pipe) |
91111-60812 |
US $1.46 |
||
| replacement | |||||
|
9111160812
|
9111160812
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
