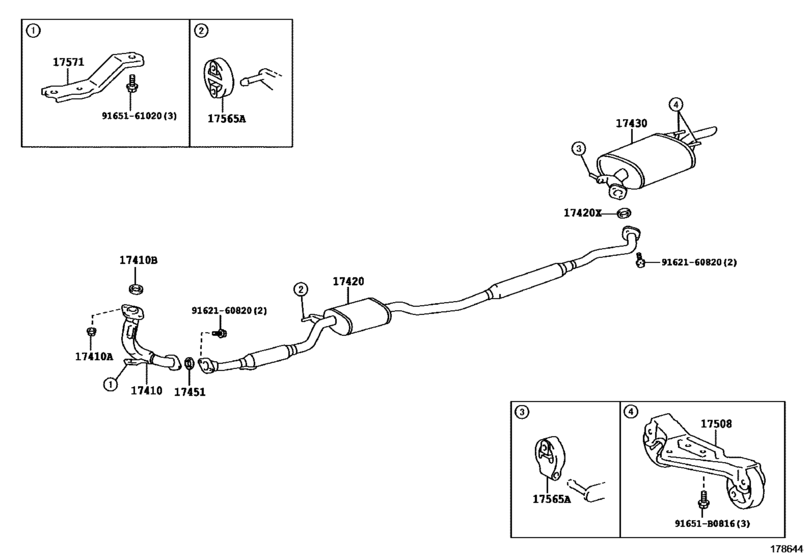

Exhaust Pipe ([09.1991 - 05.1995] (9109-9505)2C..CE104) Diagram Toyota COROLLA
- Year
- 1991 - 1995
- Sales region
- Japan
- Frame
- CE104
- grade
- LX
- body
- 4DS
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 09.1991
- To
- 05.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-64401 Pipe Assy, Exhaust, Front[09.1991 - 08.1995] 2C..CE104,109 |
17410-64401 |
US $202.38 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[08.1991 - 05.1995] 5AFE,2C,2E,3E,4EFE,5EFE..AE100,CE10#,EE10# |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[08.1991 - 05.1995] 5AFE,2C,2E,3E,4EFE,5EFE..AE100,CE10#,EE10# |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06061 Gasket, Exhaust Pipe[06.1991 - 05.1993] 2C,2E,3E,4EFE..CE10#,EE10# |
90917-06061 |
from US $5.17 |
||
|
17420
|
17420
17420-64140 Pipe Assy, Exhaust, Center[09.1991 - 05.1995] 2C..CE104 |
17420-64140 |
US $546 |
||
|
17420X
|
17420X
90917-06039 Gasket, Exhaust Pipe[06.1991 -] 4AFE,2C,3CE..AE101,104,109,CE102,104,106,107,108,109..CTD,DX,DXJ,GL,L,LX,SEG,SEL,S J,XE |
90917-06039 |
from US $2.36 |
||
|
17430
|
17430
17430-1A080 Pipe Assy, Exhaust, Tail[09.1991 - 05.1995] 4AFE,2C..AE104,CE104 |
17430-1A080 |
US $401.86 |
||
|
17451
|
17451
90917-06039 Gasket, Exhaust Pipe[06.1991 - 05.1993] 4AFE,2C,4EFE..AE104,CE104,109,EE101 |
90917-06039 |
from US $2.36 |
||
|
17508
|
17508
17508-16050 Support Sub-Assy, Exhaust Pipe, No.3[09.1991 - 05.1995] 4AFE,2C..AE104,CE104 |
17508-16050 |
US $29.12 |
||
|
17565A
|
17565A
17565-11160 Support, Exhaust Pipe, No.1[09.1991 - 05.1995] 4AFE,2C..AE104,CE104 センタ パイプ |
17565-11160 |
from US $9.17 |
||
|
17565A
|
17565A
17565-16230
Support, Exhaust Pipe, No.4
[09.1991 - 05.1995] 4AFE,2C..AE104,CE104 TAIL PIPE FRONT |
17565-16230 |
— | ||
| replacement | |||||
|
17565A
|
17565A
17565-28020 Support, Exhaust Pipe, No.4[09.1991 - 05.1995] 4AFE,2C..AE104,CE104 TAIL PIPE FRONT |
17565-28020 |
US $7.04 |
||
|
17571
|
17571
17571-64170 Bracket, Exhaust Pipe Support, No.1[09.1991 - 04.1998] 2C..CE104,109 |
17571-64170 |
US $14.56 |
||
|
91651B0816
|
91651B0816
91651-B0816 New Genuine Part |
91651-B0816 |
US $2.56 |
||
|
9162160820
|
9162160820
91621-60820 New Genuine Part |
91621-60820 |
US $1.75 |
||
| replacement | |||||
|
9162160820
|
9162160820
91651-B0822 BOLT WWASHER |
91651-B0822 |
US $1.76 |
||
|
9165161020
|
9165161020
91651-61020 Bolt, No.1 (For Center Support Bearing) |
91651-61020 |
US $2.08 |
||
