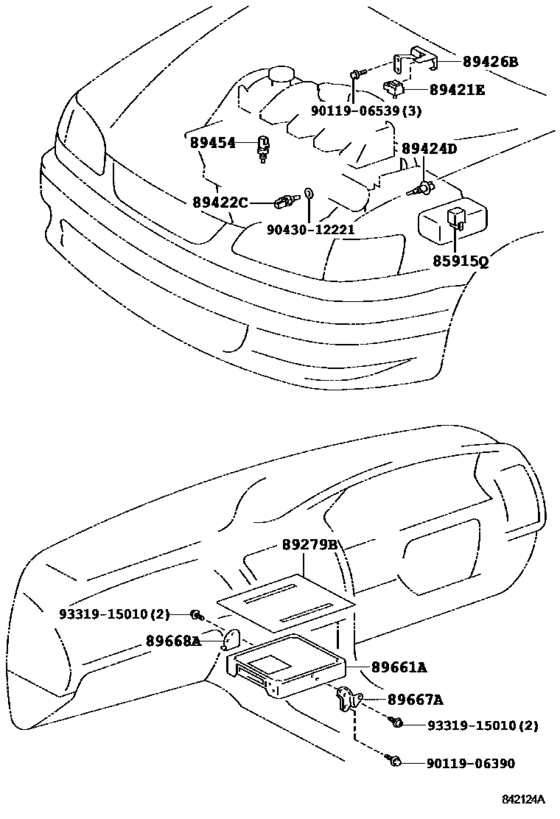

Electronic Controled Diesel (Ecd) ([04.1998 - ] (9804- )CE10#) Diagram Toyota COROLLA
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- CE105
- grade
- DX
- body
- V
- ENGINE
- 3CE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 04.1998
- To
- 06.2002
- Gear Shift Type
- 5F
- Seating Capacity
- 05S
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85915Q
|
85915Q
85915-26010 Relay Assy, Circuit Opening[04.1998 -] CE10# |
85915-26010 |
US $64.60 |
||
|
89279B
|
89279B
89279-12110 Cover, Engine Control Computer[04.1998 -] CE10# |
89279-12110 |
US $4.22 |
||
|
89421E
|
89421E
89420-12110 Sensor, Vacuum[04.1998 -] CE10# |
89420-12110 |
US $126.67 |
||
|
89422C
|
89422C
89422-35010 Sensor, Water Temperature (For E.f.i.)[04.1998 -] CE10# |
89422-35010 |
from US $40.58 |
||
|
89424D
|
89424D
89424-12010 Sensor, Inlet Air Temperature (For E.f.i.)[04.1998 -] CE10# |
89424-12010 |
from US $57 |
||
|
89426B
|
89426B
89426-12150 Bracket, Vacuum Sensor[04.1998 -] CE10# |
89426-12150 |
US $19.80 |
||
|
89454
|
89454
89454-60010 Sensor, Fuel Temperature[04.1998 -] CE10# |
89454-60010 |
from US $36.78 |
||
|
89661A
|
89661A
89661-1E240 Computer, Engine Control[04.1998 -] CE105 |
89661-1E240 |
US $1,528.80 |
||
|
89667A
|
89667A
89667-12120 Bracket, Emission Control Computer, No.1[04.1998 -] CE10# |
89667-12120 |
US $4.66 |
||
|
89668A
|
89668A
89668-12050 Bracket, Emission Control Computer, No.2[04.1998 -] CE10# |
89668-12050 |
US $5.10 |
||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.12 |
||
|
9011906539
|
9011906539
90119-06539 New Genuine Part |
90119-06539 |
US $1.46 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.13 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
