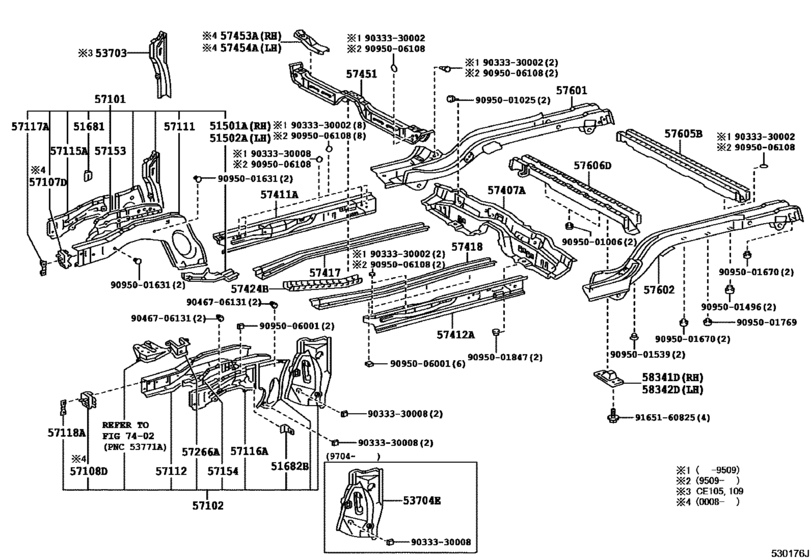

Floor Side Member ([04.1997 - ] (9505-9704)AE109,CE109 ; (9704- )AE109,CE105, 109) Diagram Toyota COROLLA
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- CE105
- grade
- DX
- body
- V
- ENGINE
- 3CE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 04.1998
- To
- 06.2002
- Gear Shift Type
- 5F
- Seating Capacity
- 05S
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51501A
|
51501A
51501-12020 Reinforcement Sub-Assy, Front Suspension Member, Rh[08.2000 -] AE109,CE10#,EE10# |
51501-12020 |
US $283.92 |
||
|
51501A
|
51501A
51501-13010 Reinforcement Sub-Assy, Front Suspension Member, Rh[05.1997 - 08.2000] AE10#,CE10#,EE10# |
51501-13010 |
US $263.54 |
||
|
51502A
|
51502A
51502-12020 Reinforcement Sub-Assy, Front Suspension Member, Lh[08.2000 -] AE109,CE10#,EE10# |
51502-12020 |
US $273.73 |
||
|
51502A
|
51502A
51502-13010 Reinforcement Sub-Assy, Front Suspension Member, Lh[05.1997 - 08.2000] AE10#,CE10#,EE10# |
51502-13010 |
US $256.26 |
||
|
51681
|
51681
51681-12050 Bracket, Flexible Hose[06.1991 -] AE10#,CE10#,EE10# |
51681-12050 |
US $9.90 |
||
|
51682B
|
51682B
51682-12060 Bracket, Flexible Hose, Lh[06.1991 -] AE10#,CE10#,EE10# |
51682-12060 |
US $9.90 |
||
|
53703
|
53703
53703-12030 Apron Sub-Assy, Front Fender, Rear Rh[05.1997 - 08.2000] AE100,101,104,CE10#,EE10# |
53703-12030 |
US $131.04 |
||
|
53704E
|
53704E
53704-12020 Apron Sub-Assy, Front Fender, Rear Lh[05.1997 -] AE10#,CE10#,EE10# |
53704-12020 |
US $131.04 |
||
|
57101
|
57101
57101-12941 Member Sub-Assy, Front Side, Rh[04.1997 - 08.2000] CE102,105,106,107,108,109,EE10# |
57101-12941 |
US $579.49 |
||
| replacement | |||||
|
57101
|
57101
57101-1A911 Member Sub-Assy, Front Side, Rh[04.1997 - 08.2000] CE102,105,106,107,108,109,EE10# |
57101-1A911 |
US $519.79 |
||
|
57101
|
57101
57101-1A915 Member Sub-Assy, Front Side, Rh[08.2000 -] CE10#,EE10# |
57101-1A915 |
US $519.79 |
||
|
57101
|
57101
57101-1A917 Member Sub-Assy, Front Side, Rh[08.2000 -] CE10#,EE10# ｱﾘ(ABS) |
57101-1A917 |
US $519.79 |
||
|
57102
|
57102
57102-12955 Member Sub-Assy, Front Side, Lh[04.1997 - 08.2000] CE102,105,106,107,108,109 |
57102-12955 |
US $607.15 |
||
| replacement | |||||
|
57102
|
57102
57102-1A911 Member Sub-Assy, Front Side, Lh[04.1997 - 08.2000] CE102,105,106,107,108,109 |
57102-1A911 |
US $550.37 |
||
|
57102
|
57102
57102-12963 Member Sub-Assy, Front Side, Lh[08.2000 -] CE10# ｱﾘ(ABS) |
57102-12963 |
US $607.15 |
||
|
57102
|
57102
57102-1A915 Member Sub-Assy, Front Side, Lh[08.2000 -] CE10# |
57102-1A915 |
US $550.37 |
||
|
57107D
|
57107D
57125-12110 Reinforce Sub-Assy, Front Bumper Mounting, Rh[08.2000 -] AE109,CE10#,EE10# |
57125-12110 |
US $28.39 |
||
|
57108D
|
57108D
57126-12070 Reinforce Sub-Assy, Front Bumper Mounting, Lh[08.2000 -] AE109,CE10#,EE10# |
57126-12070 |
US $28.39 |
||
|
57111
|
57111
57111-12201 Member, Front Side, Rh[05.1995 -] AE10#,CE10#,EE10# |
57111-12201 |
US $203.84 |
||
|
57112
|
57112
57112-12142 Member, Front Side, Lh[01.1997 -] AE10#,CE10#,EE10# |
57112-12142 |
US $203.84 |
||
|
57115A
|
57115A
57115-12060 Plate, Front Side Member, Outer Rh[06.1991 -] AE10#,CE10#,EE10# |
57115-12060 |
US $62.90 |
||
|
57116A
|
57116A
57116-12060 Plate, Front Side Member, Outer Lh[06.1991 -] AE10#,CE10#,EE10# |
57116-12060 |
US $62.90 |
||
|
57117A
|
57117A
57117-12110
Reinforcement, Front Bumper Mounting
[06.1991 -] AE10#,CE10#,EE10# |
57117-12110 |
— | ||
|
57118A
|
57118A
57117-12110
Reinforcement, Front Bumper Mounting
[06.1991 -] AE10#,CE10#,EE10# |
57117-12110 |
— | ||
|
57153
|
57153
57016-12060 Reinforcement, Front Side Member, No.2 Rh[05.1995 - 08.2000] CE10#,EE10# |
57016-12060 |
US $145.60 |
||
| replacement | |||||
|
57153
|
57153
57016-12100 Reinforcement, Front Side Member, No.2 Rh[05.1995 - 08.2000] CE10#,EE10# |
57016-12100 |
US $144.14 |
||
|
57153
|
57153
57016-12100 Reinforcement, Front Side Member, No.2 Rh[08.2000 -] CE10#,EE10# |
57016-12100 |
US $144.14 |
||
|
57154
|
57154
57017-13010 Reinforcement, Front Side Member, No.2 Lh[05.1997 -] AE10#,CE10#,EE10# |
57017-13010 |
US $139.78 |
||
|
57407A
|
57407A
57407-13070 Member Sub-Assy, Center Floor Cross[09.1991 -] AE109,CE105,109 |
57407-13070 |
US $145.60 |
||
|
57411A
|
57411A
57401-12460 Member, Floor Side, Inner Rh[06.1991 - 08.2000] AE10#,CE10#,EE10#..4DS,V,WG |
57401-12460 |
US $183.46 |
||
|
57411A
|
57411A
57401-12461 Member, Floor Side, Inner Rh[08.2000 -] AE109,CE10#,EE10# |
57401-12461 |
US $244.61 |
||
|
57412A
|
57412A
57402-12460 Member, Floor Side, Inner Lh[06.1991 - 08.2000] AE10#,CE10#,EE10#..4DS,V,WG |
57402-12460 |
US $183.46 |
||
|
57412A
|
57412A
57402-12461 Member, Floor Side, Inner Lh[08.2000 -] AE109,CE10#,EE10# |
57402-12461 |
US $244.61 |
||
|
57417
|
57417
57417-13010 Reinforcement, Front Floor Under, Rh[05.1997 -] AE10#,CE10#,EE10# |
57417-13010 |
US $104.83 |
||
|
57418
|
57418
57418-13010 Reinforcement, Front Floor Under, Lh[05.1997 -] AE10#,CE10#,EE10# |
57418-13010 |
US $104.83 |
||
|
57424B
|
57424B
57424-12020 Reinforcement, Front Floor Under, Inner Lh[04.1997 -] AE109,CE101,102,105,106,107,108,109,EE10# |
57424-12020 |
US $53.14 |
||
|
57451
|
57451
57451-12141 Member, Front Floor Cross[05.1995 - 08.2000] AE104,109,CE105,109 |
57451-12141 |
US $122.30 |
||
|
57451
|
57451
57451-12170 Member, Front Floor Cross[08.2000 -] AE109,CE105 |
57451-12170 |
US $106.29 |
||
|
57453A
|
57453A
57453-12030 Reinforcement, Front Floor Cross Member, Rh[08.2000 -] AE109,CE105 |
57453-12030 |
US $21.69 |
||
|
57454A
|
57454A
57454-12020 Reinforcement, Front Floor Cross Member, Lh[08.2000 -] AE109,CE105 |
57454-12020 |
US $21.69 |
||
|
57601
|
57601
57601-13160 Member Sub-Assy, Rear Floor Side, Rh[09.1991 - 08.2000] AE109,CE105,109 |
57601-13160 |
US $513.97 |
||
| replacement | |||||
|
57601
|
57601
57601-13161 Member Sub-Assy, Rear Floor Side, Rh[09.1991 - 08.2000] AE109,CE105,109 |
57601-13161 |
US $513.97 |
||
|
57601
|
57601
57601-13161 Member Sub-Assy, Rear Floor Side, Rh[08.2000 -] AE109,CE105 |
57601-13161 |
US $513.97 |
||
|
57602
|
57602
57602-13150 Member Sub-Assy, Rear Floor Side, Lh[09.1991 - 08.2000] AE109,CE105,109 |
57602-13150 |
US $546 |
||
| replacement | |||||
|
57602
|
57602
57602-13151 Member Sub-Assy, Rear Floor Side, Lh[09.1991 - 08.2000] AE109,CE105,109 |
57602-13151 |
US $546 |
||
|
57602
|
57602
57602-13151 Member Sub-Assy, Rear Floor Side, Lh[08.2000 -] AE109,CE105 |
57602-13151 |
US $546 |
||
|
57605B
|
57605B
57605-13040 Member Sub-Assy, Rear Floor Cross, No.1[09.1991 -] AE109,CE105,109 |
57605-13040 |
US $182 |
||
|
57606D
|
57606D
57606-13080 Member Sub-Assy, Rear Absorber Mounting[09.1991 -] AE109,CE105,109 |
57606-13080 |
US $216.94 |
||
|
58341D
|
58341D
58341-13030 Bracket, Rear Absorber Mounting, No.1 Rh[09.1991 -] AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
58341-13030 |
US $30.98 |
||
|
58342D
|
58342D
58342-13030 Bracket, Rear Absorber Mounting, No.1 Lh[09.1991 -] AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
58342-13030 |
US $30.98 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
US $1.12 |
||
|
9033330008
|
9033330008
90333-30008 PLUG PLATE |
90333-30008 |
from US $1.12 |
||
|
9046706131
|
9046706131
90467-06131 New Genuine Part |
90467-06131 |
US $2.62 |
||
| replacement | |||||
|
9046706131
|
9046706131
90467-06131-B2 Clip |
90467-06131-B2 |
US $1.22 |
||
|
9095001006
|
9095001006
90950-01006 Plug, Hole(For Front Fender) |
90950-01006 |
from US $2.16 |
||
|
9095001025
|
9095001025
90950-01025 Plug, Hole(For Front Fender Apron) |
90950-01025 |
US $3.84 |
||
|
9095001496
|
9095001496
90950-01496 New Genuine Part |
90950-01496 |
US $2.62 |
||
|
9095001539
|
9095001539
90950-01539 PLUG HOLE |
90950-01539 |
from US $1.42 |
||
|
9095001631
|
9095001631
90950-01631 Plug Hole |
90950-01631 |
US $1.92 |
||
|
9095001670
|
9095001670
90950-01670
Plug, Hole(For Front Fender Apron)
|
90950-01670 |
— | ||
| replacement | |||||
|
9095001670
|
9095001670
90950-01025 Plug, Hole(For Front Fender Apron) |
90950-01025 |
US $3.84 |
||
|
9095001769
|
9095001769
90950-01769 New Genuine Part |
90950-01769 |
US $2.62 |
||
|
9095001847
|
9095001847
90950-01847
New Genuine Part
|
90950-01847 |
— | ||
|
9095006001
|
9095006001
90950-06001 Protector, Front Side Panel, No.3 |
90950-06001 |
US $2.72 |
||
|
9095006108
|
9095006108
90950-06108 COVER HOLE |
90950-06108 |
from US $0.80 |
||
|
9165160825
|
9165160825
91651-60825
Bolt, Hexagon(For Steering Column Bracket)
|
91651-60825 |
— | ||
| replacement | |||||
|
9165160825
|
9165160825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
