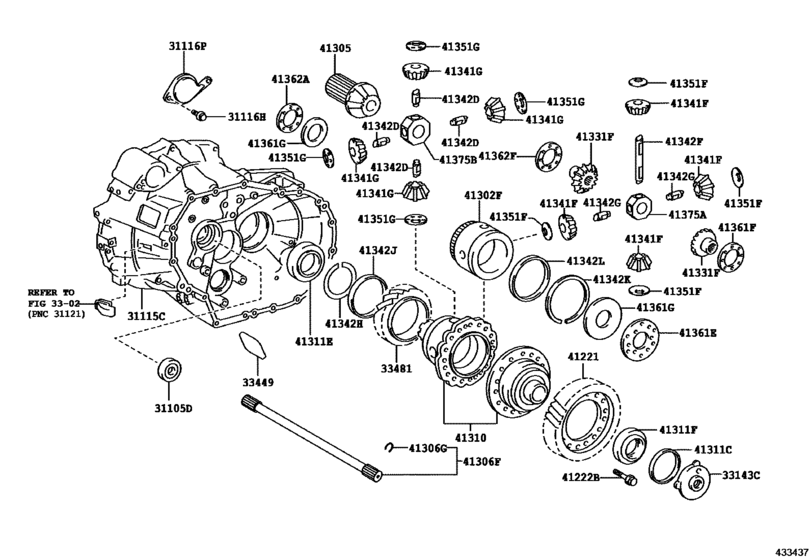

Front Axle Housing & Differential ([09.1991 - ] E59F (9109- )CE104,105,109) Diagram Toyota COROLLA
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- CE105
- grade
- DX
- body
- V
- ENGINE
- 3CE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 04.1998
- To
- 06.2002
- Gear Shift Type
- 5F
- Seating Capacity
- 05S
- Vehicle Model
- Corolla
