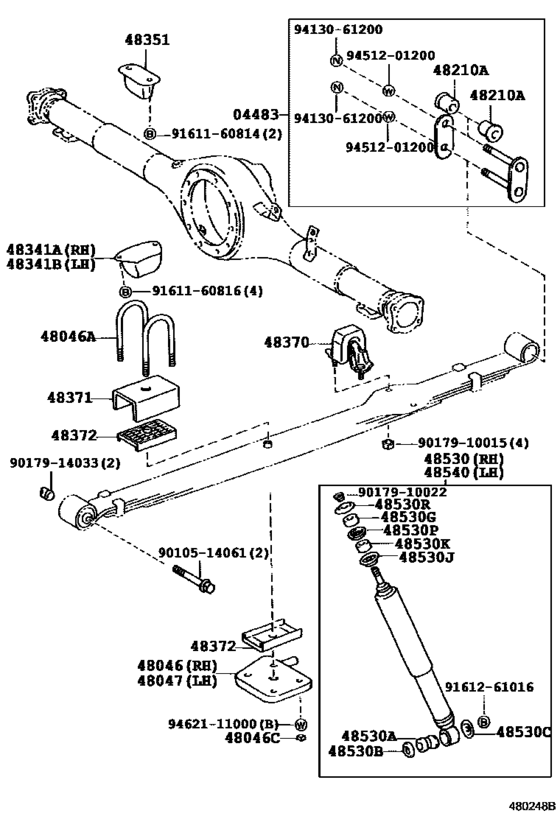

Rear Spring & Shock Absorber ([09.1991 - ] (9109- )AE109,CE105,109) Diagram Toyota COROLLA
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- CE105
- grade
- DX
- body
- V
- ENGINE
- 3CE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 04.1998
- To
- 06.2002
- Gear Shift Type
- 5F
- Seating Capacity
- 05S
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04483
|
04483
04483-13031
Shackle Kit, Rear Spring
[08.1992 -] AE109,CE105,109 |
04483-13031 |
— | ||
|
48046
|
48046
48046-13090
Seat Sub-Assy, Spring U Bolt, Rh
[09.1991 -] AE109,CE105,109 |
48046-13090 |
— | ||
|
48046A
|
48046A
90117-10003 Bolt, U(For Rear Spring)[09.1991 -] AE109,CE105,109 長さ＝１４８ |
90117-10003 |
from US $11.88 |
||
|
48046C
|
48046C
90170-10022 Nut(For Rear Spring U Bolt)[09.1991 -] AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
90170-10022 |
US $1.14 |
||
|
48047
|
48047
48047-13090 Seat Sub-Assy, Spring U Bolt, Lh[09.1991 -] AE109,CE105,109 |
48047-13090 |
US $32.03 |
||
|
48210A
|
48210A
90385-15004 Bush(For Rear Spring Shackle Upper)[09.1991 -] AE109,CE105,109 |
90385-15004 |
US $4.89 |
||
|
48341A
|
48341A
48341-13110 Bumper, Rear Spring, No.1 Rh[09.1991 -] AE109,CE105,109 |
48341-13110 |
US $50.09 |
||
|
48341B
|
48341B
48341-13110 Bumper, Rear Spring, No.1 Rh[09.1991 -] AE109,CE105,109 |
48341-13110 |
US $50.09 |
||
|
48351
|
48351
48351-12020 Bumper, Differential Carrier[11.1991 -] AE109,CE105,109 |
48351-12020 |
US $9.46 |
||
|
48370
|
48370
48370-13010 Damper Assy, Leaf Spring Dynamic[09.1991 -] AE109,CE105,109 |
48370-13010 |
US $110.66 |
||
|
48371
|
48371
48371-13090 Retainer, Rear Spring Pad[09.1991 -] AE109,CE105,109 |
48371-13090 |
US $33.37 |
||
|
48372
|
48372
48372-12020 Pad, Rear Spring[09.1991 -] AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
48372-12020 |
US $15.68 |
||
|
48530
|
48530
48531-80136 Absorber Assy, Shock, Rear Rh[09.1991 - 06.2002] AE109,CE105,109 |
48531-80136 |
US $107.74 |
||
| replacement | |||||
|
48530
|
48530
48531-80182 Absorber Assy, Shock, Rear Rh[09.1991 - 06.2002] AE109,CE105,109 |
48531-80182 |
US $60 |
||
|
48530A
|
48530A
90385-16001 Bush(For Shock Absorber)[09.1991 -] AE109,CE102,105,106,107,108,109,EE10# |
90385-16001 |
from US $6.22 |
||
|
48530B
|
48530B
90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)[09.1991 -] AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
90948-03004 |
from US $1.42 |
||
|
48530C
|
48530C
90948-03012 Washer, Front Shock Absorber Cushion, No.1[09.1991 -] AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
90948-03012 |
US $1.60 |
||
|
48530G
|
48530G
90540-10005 Bush(For Rear Shock Absorber)[09.1991 -] AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
90540-10005 |
from US $3.37 |
||
|
48530J
|
48530J
90948-02002 Retainer, Steering Damper Cushion[09.1991 -] AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
90948-02002 |
from US $1.35 |
||
|
48530K
|
48530K
90948-01003 Rubber Cushion[09.1991 -] AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
90948-01003 |
from US $1.89 |
||
|
48530P
|
48530P
90948-02007 Retainer, Steering Damper Cushion[09.1991 -] AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
90948-02007 |
US $2.72 |
||
|
48530R
|
48530R
90948-02045 Washer, Rear Shock Absorber Cushion, No.1[09.1991 -] AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
90948-02045 |
US $3.89 |
||
|
48540
|
48540
48531-80136 Absorber Assy, Shock, Rear Rh[09.1991 - 06.2002] AE109,CE105,109 |
48531-80136 |
US $107.74 |
||
| replacement | |||||
|
48540
|
48540
48531-80182 Absorber Assy, Shock, Rear Rh[09.1991 - 06.2002] AE109,CE105,109 |
48531-80182 |
US $60 |
||
|
9010514061
|
9010514061
90105-14061 BOLT WASHER BASED |
90105-14061 |
US $3.99 |
||
|
9017910015
|
9017910015
90179-10015 NUT |
90179-10015 |
from US $1.09 |
||
|
9017910022
|
9017910022
90179-10022 Nut(For Rear Support To Rear Shock Absorber) |
90179-10022 |
US $4.16 |
||
|
9017914033
|
9017914033
90179-14033 NUT |
90179-14033 |
US $3.79 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9161261016
|
9161261016
91612-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91612-61016 |
US $2.24 |
||
|
9413061200
|
9413061200
94130-61200 Nut |
94130-61200 |
from US $0.99 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.76 |
||
|
9462111000
|
9462111000
94621-11000 Washer, Spring(For Steering Center Arm) |
94621-11000 |
from US $1.15 |
||
