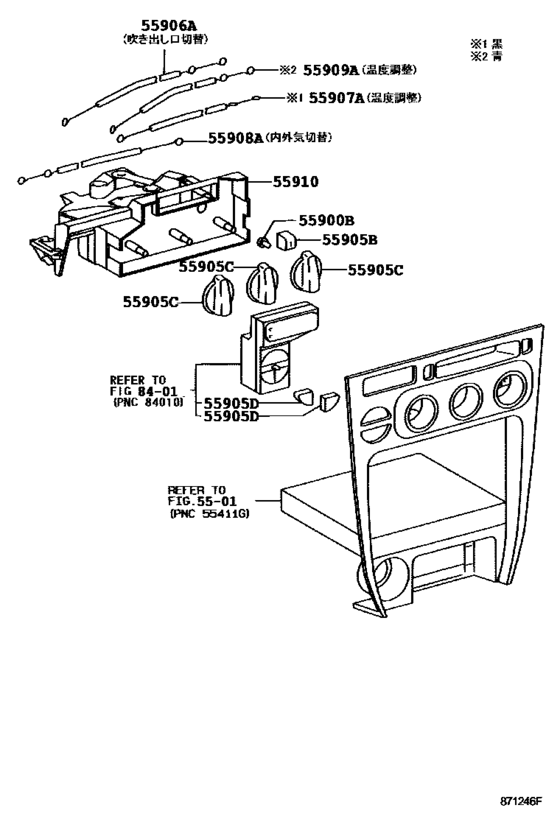

Heating & Air Conditioning - Control & Air Duct ([04.1997 - ] ﾚﾊﾞ-ｼｷ ﾋ-ﾀｺﾝﾄﾛ-ﾙ (9704- )DX,LX,XESAL) Diagram Toyota COROLLA
- Year
- 1995 - 1998
- Sales region
- Japan
- Frame
- CE110
- grade
- DX
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1995
- To
- 04.1998
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55900B
|
55900B
90981-11014 Bulb, Position Indicator Lamp[04.1997 - 08.2000] AE110,114,CE11#,EE111..DX,LX,XESAL １４Ｖ １．４Ｗ |
90981-11014 |
from US $1.92 |
||
|
55905B
|
55905B
55905-12450-B0 Knob, Heater Control, No.2[04.1997 - 04.1998] AE110,114,CE11#,EE111..DX,LX SHADOW GRAY,TRIM1#; AE110,114,CE11#,EE111..XESAL SHADOW GRAY,TRIM11 |
55905-12450-B0 |
US $5.82 |
||
| replacement | |||||
|
55905B
|
55905B
55905-12450-B1 Knob, Heater Control, No.2[04.1997 - 04.1998] AE110,114,CE11#,EE111..DX,LX SHADOW GRAY,TRIM1#; AE110,114,CE11#,EE111..XESAL SHADOW GRAY,TRIM11 |
55905-12450-B1 |
US $6.29 |
||
|
55905C
|
55905C
55905-12440-B0
Knob, Heater Control, No.3
[04.1997 - 04.1998] AE110,114,CE11#,EE111..DX,LX SHADOW GRAY,TRIM1#; AE110,114,CE11#,EE111..XESAL SHADOW GRAY,TRIM11 |
55905-12440-B0 |
— | ||
| replacement | |||||
|
55905C
|
55905C
55905-12440-B1 Knob, Heater Control, No.3[04.1997 - 04.1998] AE110,114,CE11#,EE111..DX,LX SHADOW GRAY,TRIM1#; AE110,114,CE11#,EE111..XESAL SHADOW GRAY,TRIM11 |
55905-12440-B1 |
US $9.32 |
||
|
55905D
|
55905D
55905-12470-B0 Knob Sub-Assy, Control[04.1997 - 04.1998] AE110,114,CE11#,EE111..DX,LX SHADOW GRAY,TRIM1#,Ａ／Ｃ; AE110,114,CE11#,EE111..XESAL SHADOW GRAY,TRIM11,Ａ／Ｃ |
55905-12470-B0 |
US $6.12 |
||
|
55905D
|
55905D
55905-12480-B0 Knob Sub-Assy, Control[04.1997 - 04.1998] AE110,114,CE11#,EE111..DX,LX SHADOW GRAY,TRIM1#,ECON; AE110,114,CE11#,EE111..XESAL SHADOW GRAY,TRIM11,ECON |
55905-12480-B0 |
US $6.12 |
||
|
55906A
|
55906A
55906-12360 Cable Sub-Assy, Defroster Damper Control[05.1995 - 04.1997] AE110,114,CE11#,EE111..DX,LX,XESAL |
55906-12360 |
US $6.26 |
||
|
55906A
|
55906A
55906-12390 Cable Sub-Assy, Defroster Damper Control[04.1997 - 08.2000] AE110,114,CE11#,EE111..DX,LX,XESAL |
55906-12390 |
US $6.12 |
||
|
55907A
|
55907A
55907-12420 Cable Sub-Assy, Water Valve Control[05.1995 - 04.1997] AE11#,CE11#,EE111 ﾌﾞﾗﾂｸ |
55907-12420 |
US $12.67 |
||
|
55907A
|
55907A
55907-12470 Cable Sub-Assy, Water Valve Control[04.1997 - 08.2000] AE110,114,CE11#,EE111..DX,LX,XESAL ﾌﾞﾗﾂｸ |
55907-12470 |
US $12.67 |
||
|
55908A
|
55908A
55908-12290 Cable Sub-Assy, Air Inlet Damper Control[04.1997 - 08.2000] AE110,114,CE11#,EE111..DX,LX,XESAL |
55908-12290 |
US $9.61 |
||
|
55908A
|
55908A
55908-12310 Cable Sub-Assy, Air Inlet Damper Control[05.1995 - 04.1997] AE110,114,CE11#,EE111..DX,LX,XESAL |
55908-12310 |
US $9.61 |
||
|
55909A
|
55909A
55909-12280 Cable Sub-Assy, Airmix Damper Control[04.1997 - 08.2000] AE110,114,CE11#,EE111..DX,LX,XESAL ﾌﾞﾙ- |
55909-12280 |
US $8.15 |
||
|
55909A
|
55909A
55909-12290 Cable Sub-Assy, Airmix Damper Control[05.1995 - 04.1997] AE11#,CE11#,EE111 ﾌﾞﾙ- |
55909-12290 |
US $8.30 |
||
|
55910
|
55910
55910-12620 Control Assy, Heater Or Boost Ventilator[05.1995 - 04.1997] AE110,114,CE11#,EE111..DX,LX,XESAL |
55910-12620 |
US $69.31 |
||
|
55910
|
55910
55910-12660 Control Assy, Heater Or Boost Ventilator[04.1997 - 08.2000] AE110,114,CE11#,EE111..DX,LX,XESAL |
55910-12660 |
US $69.31 |
||
