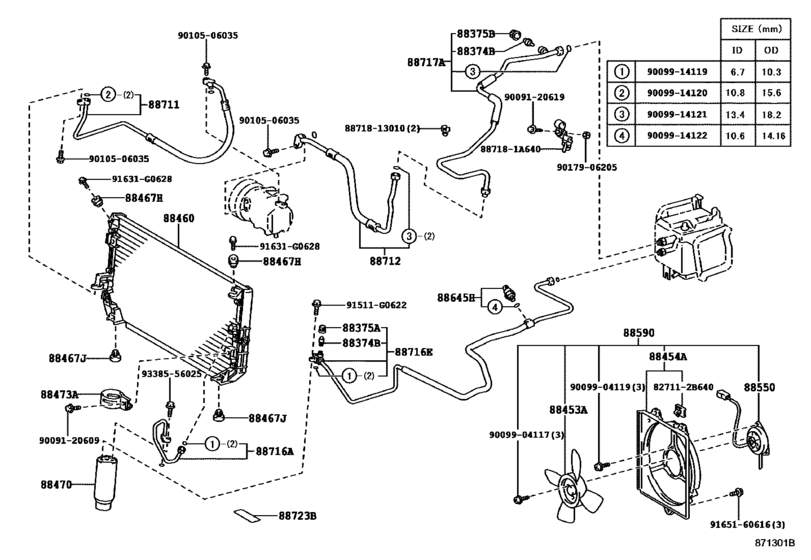

Heating & Air Conditioning - Cooler Piping ([04.1997 - ] ﾒ-ｶ ｵﾌﾟｼﾖﾝ (9704- )CE11#) Diagram Toyota COROLLA
- Year
- 1995 - 1998
- Sales region
- Japan
- Frame
- CE110
- grade
- DX
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1995
- To
- 04.1998
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88374B
|
88374B
88374-30010 Valve, Service, No.1[05.1995 - 04.1997] CE11#;AE110,114,EE111..DX,LX,XESAL |
88374-30010 |
from US $3.37 |
||
|
88375A
|
88375A
88375-30280 Cap, Service Valve (For Cooler Pipe)[05.1995 - 04.1997] AE11#,CE11#,EE111 |
88375-30280 |
from US $0.98 |
||
|
88375B
|
88375B
88375-30290 Cap, Service Valve (For Cooler Pipe)[05.1995 - 04.1997] AE11#,CE11#,EE111 |
88375-30290 |
from US $0.94 |
||
|
88453A
|
88453A
88453-12070
Fan, Cooling
[05.1995 - 04.1997] CE11# |
88453-12070 |
— | ||
|
88454A
|
88454A
88454-12140
Shroud, Fan
[05.1995 - 04.1997] CE11# |
88454-12140 |
— | ||
|
88460
|
88460
88460-12480
Condenser Assy, Cooler
[05.1995 - 04.1997] AE11#,CE11#,EE111 |
88460-12480 |
— | ||
|
88467H
|
88467H
88897-12250
Cushion, Condenser Bracket, No.1
[05.1995 - 04.1997] AE11#,CE11#,EE111 |
88897-12250 |
— | ||
|
88467J
|
88467J
88467-12100 Cushion, Cooler Condenser, No.1[05.1995 - 04.1997] AE11#,CE11#,EE111 |
88467-12100 |
US $4.54 |
||
|
88470
|
88470
88471-60010 Receiver & Dryer Assy, Cooler[05.1995 - 04.1997] AE11#,CE11#,EE111 |
88471-60010 |
from US $87.54 |
||
|
88473A
|
88473A
88473-20070
Holder, Receiver
[05.1995 - 04.1997] AE11#,CE11#,EE111 |
88473-20070 |
— | ||
|
88550
|
88550
88550-12130
Motor, Cooling Fan
[05.1995 - 04.1997] CE11# |
88550-12130 |
— | ||
|
88590
|
88590
88590-12220
Blower Assy, W/shroud
[05.1995 - 04.1997] CE11# |
88590-12220 |
— | ||
|
88645H
|
88645H
88645-20050 Switch, Pressure[05.1995 - 04.1997] AE11#,CE11#,EE111 |
88645-20050 |
US $159.08 |
||
|
88711
|
88711
88711-1A460 Hose, Cooler Refrigerant Discharge, No.1[05.1995 - 04.1997] CE11# |
88711-1A460 |
US $173.26 |
||
| replacement | |||||
|
88711
|
88711
88711-1A500 Hose, Cooler Refrigerant Discharge, No.1[05.1995 - 04.1997] CE11# |
88711-1A500 |
US $174.72 |
||
|
88711
|
88711
88711-1A500 Hose, Cooler Refrigerant Discharge, No.1[04.1997 - 08.2000] CE11# |
88711-1A500 |
US $174.72 |
||
|
88712
|
88712
88712-1A480 Hose, Cooler Refrigerant Suction, No.1[05.1995 - 04.1997] CE11# |
88712-1A480 |
US $187.82 |
||
|
88712
|
88712
88712-1A570 Hose, Cooler Refrigerant Suction, No.1[04.1997 - 08.2000] CE11# |
88712-1A570 |
US $180.54 |
||
|
88716A
|
88716A
88726-12470
Pipe, Cooler Refrigerant Liquid, A
[05.1995 - 04.1997] AE11#,CE11#,EE111 |
88726-12470 |
— | ||
|
88716E
|
88716E
88716-12320 Pipe, Cooler Refrigerant Liquid, E[05.1995 - 04.1997] CE11#..DX,LX,XESAL |
88716-12320 |
US $107.74 |
||
|
88716E
|
88716E
88716-1A500 Pipe, Cooler Refrigerant Liquid, E[04.1997 - 08.2000] CE11#..DX,LX,XESAL ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
88716-1A500 |
US $60.72 |
||
|
88717A
|
88717A
88717-1A030 Pipe, Cooler Refrigerant Suction, A[05.1995 - 04.1997] CE11# |
88717-1A030 |
US $128.13 |
||
|
88717A
|
88717A
88717-1A050 Pipe, Cooler Refrigerant Suction, A[04.1997 - 08.2000] CE11# |
88717-1A050 |
US $180.54 |
||
|
88723B
|
88723B
88723-12110
Label, Cooler Service Caution
[05.1995 - 04.1997] AE11#,CE11#,EE111 |
88723-12110 |
— | ||
|
91511G0622
|
91511G0622
91511-G0622 BOLT, FLANGE |
91511-G0622 |
from US $0.98 |
||
|
91631G0628
|
91631G0628
91631-G0628 New Genuine Part |
91631-G0628 |
US $1.46 |
||
| replacement | |||||
|
91631G0628
|
91631G0628
90119-06775 BOLT WWASHER |
90119-06775 |
from US $1.11 |
||
|
827112B640
|
827112B640
82711-2B640 Wire, Fuse To Fuse(for Combustion Heater) |
82711-2B640 |
US $1.76 |
||
|
887181A640
|
887181A640
88718-1A640
Pipe, Cooler Refrigerant Suction, No.2
|
88718-1A640 |
— | ||
|
8871813010
|
8871813010
88718-13010
Pipe, Cooler Refrigerant Suction, No.2
|
88718-13010 |
— | ||
|
9009120609
|
9009120609
90091-20609 BOLT |
90091-20609 |
US $0.44 |
||
|
9009120619
|
9009120619
90091-20619 BOLT |
90091-20619 |
US $0.28 |
||
|
9009904117
|
9009904117
90099-04117 Bolt, Radiator Side Support Plate |
90099-04117 |
US $0.70 |
||
|
9009904119
|
9009904119
90099-04119 BOLT WASHER HEAD |
90099-04119 |
from US $0.68 |
||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $2.27 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.68 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $2.13 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $2.18 |
||
|
9009914122
|
9009914122
90099-14122 O-RING |
90099-14122 |
from US $1.27 |
||
|
9010506035
|
9010506035
90105-06035 New Genuine Part |
90105-06035 |
US $4 |
||
|
9017906205
|
9017906205
90179-06205
Nut (For Rear Wiper Arm Setting)
|
90179-06205 |
— | ||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
|
9338556025
|
9338556025
93385-56025 New Genuine Part |
93385-56025 |
US $0.44 |
||
