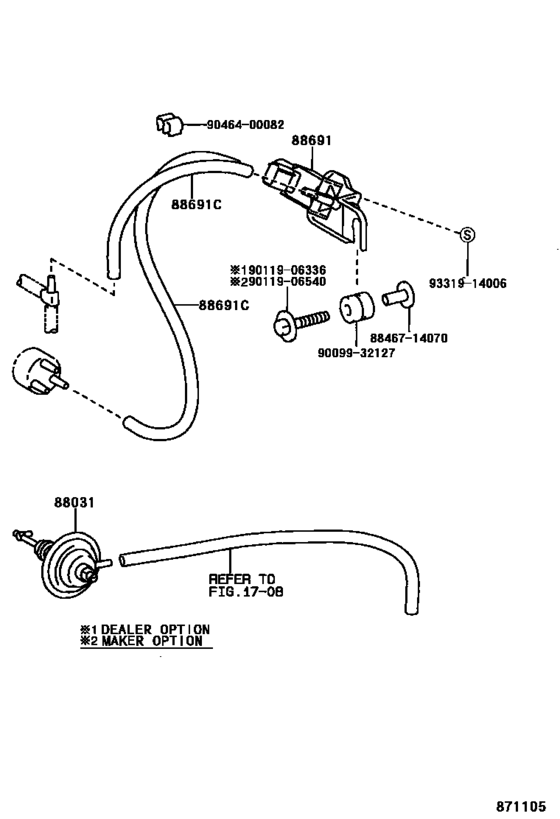

Heating & Air Conditioning - Vacuum Piping ([05.1995 - ] (9505- )CE110,114) Diagram Toyota COROLLA
- Year
- 1995 - 1998
- Sales region
- Japan
- Frame
- CE110
- grade
- DX
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1995
- To
- 04.1998
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88031
|
88031
88031-20080 Actuator Set, Idle-Up[05.1995 - 04.1997] CE11#..5F..SESAL;CE110..4FC..(LX,SESAL,XESAL); CE11#..5F..(DX,LX,XESAL) ｶﾝﾚｲﾁ ｼﾖｳ; CE110..4FC..DX ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
88031-20080 |
US $53.46 |
||
|
88691
|
88691
88691-12200
Valve, Magnet (For Idle Up Device)
[05.1995 - 04.1997] CE11#..SESAL; CE11#..DX,LX,XESAL ｶﾝﾚｲﾁ ｼﾖｳ |
88691-12200 |
— | ||
|
88691C
|
88691C
90999-92002
Air Hose (300 mm)
[05.1995 - 04.1997] CE11#..SESAL ＊Ｈ，Ｌ＝１１０，マーク＝＃０; CE11#..5F..SESAL ＊Ｈ，Ｌ＝１９０，マーク＝＃＊; CE11#..DX,LX,XESAL ＊Ｈ，Ｌ＝１１０，マーク＝＃０,ｶﾝﾚｲﾁ ｼﾖｳ; CE110..DX;CE11#..5F..(LX,XESAL) ＊Ｈ，Ｌ＝１９０，マーク＝＃＊,ｶﾝﾚｲﾁ ｼﾖｳ |
90999-92002 |
— | ||
|
8846714070
|
8846714070
88467-14070
Insulator (For Power Take-Off Cable Bracket)
|
88467-14070 |
— | ||
|
9009932127
|
9009932127
90099-32127
Grommet (For Power Take-Off Cable Bracket)
|
90099-32127 |
— | ||
| replacement | |||||
|
9009932127
|
9009932127
90099-32130 Grommet (For Power Take-Off Cable Bracket) |
90099-32130 |
from US $1.54 |
||
|
9011906336
|
9011906336
90119-06336 SCREW |
90119-06336 |
US $1.28 |
||
|
9011906540
|
9011906540
90119-06540
New Genuine Part
|
90119-06540 |
— | ||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
from US $1.60 |
||
|
9331914006
|
9331914006
93319-14006 SCREW WITH WASHER |
93319-14006 |
US $0.52 |
||
