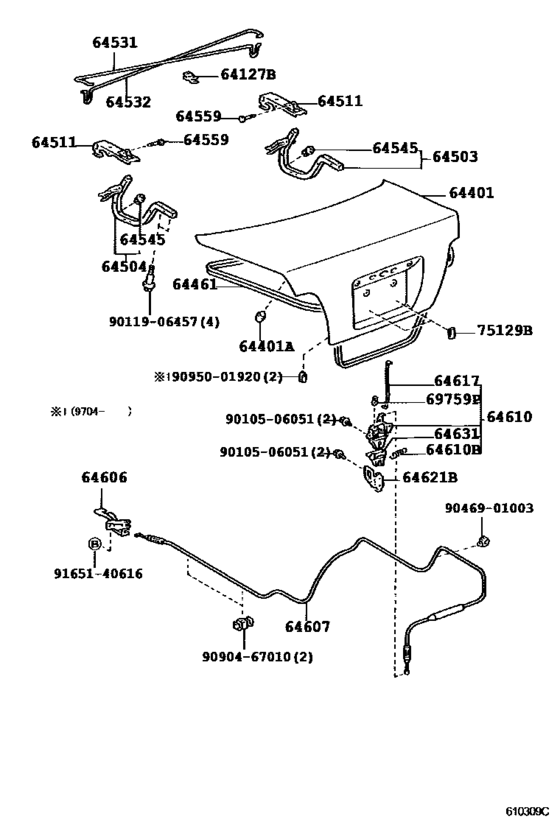

Luggage Compartment Door & Lock ([05.1995 - ] (9505- )) Diagram Toyota COROLLA
- Year
- 1995 - 1998
- Sales region
- Japan
- Frame
- CE110
- grade
- DX
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1995
- To
- 04.1998
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64127B
|
64127B
64127-12100 Support, Luggage Compartment Door Torsion Bar[05.1995 - 04.1997] AE11#,CE11#,EE111 |
64127-12100 |
US $2.04 |
||
|
64401
|
64401
64401-1A640 Panel Sub-Assy, Luggage Compartment Door[05.1995 - 04.1997] AE11#,CE11#,EE111 |
64401-1A640 |
US $457.18 |
||
|
64401
|
64401
64401-1A710
Panel Sub-Assy, Luggage Compartment Door
[04.1997 - 08.2000] AE11#,CE11#,EE111 |
64401-1A710 |
— | ||
|
64401A
|
64401A
90541-09035 Cushion(For Luggage Compartment Door Panel)[05.1995 - 04.1997] AE11#,CE11#,EE111 |
90541-09035 |
from US $1.64 |
||
|
64461
|
64461
64461-12510
Weatherstrip, Luggage Compartment Door
[05.1995 - 04.1997] AE11#,CE11#,EE111 |
64461-12510 |
— | ||
|
64461
|
64461
64461-12530 Weatherstrip, Luggage Compartment Door[04.1997 - 08.2000] AE11#,CE11#,EE111 |
64461-12530 |
US $99.59 |
||
|
64503
|
64503
64503-12130
Arm Sub-Assy, Luggage Compartment Door Hinge, Rh
[05.1995 - 04.1997] AE11#,CE11#,EE111 |
64503-12130 |
— | ||
|
64504
|
64504
64503-12130
Arm Sub-Assy, Luggage Compartment Door Hinge, Rh
[05.1995 - 04.1997] AE11#,CE11#,EE111 |
64503-12130 |
— | ||
|
64511
|
64511
64511-12240 Support, Luggage Compartment Door Hinge, Rh[05.1995 - 04.1997] AE11#,CE11#,EE111 |
64511-12240 |
US $18.78 |
||
|
64531
|
64531
64531-12600 Bar, Luggage Door Hinge Torsion, Rh[05.1995 - 09.1995] AE11#,CE11#,EE111 |
64531-12600 |
US $24.75 |
||
| replacement | |||||
|
64531
|
64531
64531-12601 Bar, Luggage Door Hinge Torsion, Rh[05.1995 - 09.1995] AE11#,CE11#,EE111 |
64531-12601 |
US $24.75 |
||
|
64531
|
64531
64531-12601 Bar, Luggage Door Hinge Torsion, Rh[09.1995 - 04.1997] AE11#,CE11#,EE111 |
64531-12601 |
US $24.75 |
||
|
64531
|
64531
64531-12640 Bar, Luggage Door Hinge Torsion, Rh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
64531-12640 |
US $20.09 |
||
|
64532
|
64532
64532-12590 Bar, Luggage Door Hinge Torsion, Lh[05.1995 - 09.1995] AE11#,CE11#,EE111 |
64532-12590 |
US $24.75 |
||
| replacement | |||||
|
64532
|
64532
64532-12591 Bar, Luggage Door Hinge Torsion, Lh[05.1995 - 09.1995] AE11#,CE11#,EE111 |
64532-12591 |
US $24.75 |
||
|
64532
|
64532
64532-12591 Bar, Luggage Door Hinge Torsion, Lh[09.1995 - 04.1997] AE11#,CE11#,EE111 |
64532-12591 |
US $24.75 |
||
|
64532
|
64532
64532-12630 Bar, Luggage Door Hinge Torsion, Lh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
64532-12630 |
US $20.09 |
||
|
64545
|
64545
90541-07040 Cushion, Luggage Door Hinge[05.1995 - 04.1997] AE11#,CE11#,EE111 |
90541-07040 |
US $2.08 |
||
|
64559
|
64559
64559-12040 Pin, Luggage Door Hinge[05.1995 - 04.1997] AE11#,CE11#,EE111 |
64559-12040 |
US $1.60 |
||
|
64606
|
64606
64606-20160 Lever Sub-Assy, Luggage Door Lock Open[05.1995 - 08.1995] AE11#,CE11#,EE111 |
64606-20160 |
US $60.72 |
||
| replacement | |||||
|
64606
|
64606
64606-20161
Lever Sub-Assy, Luggage Door Lock Open
[05.1995 - 08.1995] AE11#,CE11#,EE111 |
64606-20161 |
— | ||
|
64606
|
64606
64606-20161
Lever Sub-Assy, Luggage Door Lock Open
[08.1995 - 04.1997] AE11#,CE11#,EE111 |
64606-20161 |
— | ||
|
64607
|
64607
64607-12720 Cable Sub-Assy, Luggage Door Lock Control[05.1995 - 04.1997] AE11#,CE11#,EE111 |
64607-12720 |
US $23.41 |
||
|
64610
|
64610
64610-12260 Lock Assy, Luggage Compartment Door[05.1995 - 04.1997] AE11#,CE11#,EE111 |
64610-12260 |
US $32.47 |
||
|
64610
|
64610
64610-12330
Lock Assy, Luggage Compartment Door
[04.1997 - 08.2000] AE11#,CE11#,EE111 |
64610-12330 |
— | ||
|
64610B
|
64610B
90506-05001 Spring, Tension(For Lock)[05.1995 - 09.1996] AE11#,CE11#,EE111 |
90506-05001 |
US $1.05 |
||
|
64610B
|
64610B
90905-06021 Spring, Tension(For Lock)[09.1996 - 04.1997] AE11#,CE11#,EE111 WD=0.55,CW=17.5 |
90905-06021 |
US $1.02 |
||
|
64617
|
64617
64617-12120 Link, Luggage Compartment Door Lock[05.1995 - 04.1997] AE11#,CE11#,EE111 |
64617-12120 |
US $4.66 |
||
|
64617
|
64617
64617-12150 Link, Luggage Compartment Door Lock[04.1997 - 08.2000] AE11#,CE11#,EE111 |
64617-12150 |
US $4.95 |
||
|
64621B
|
64621B
64621-12070 Striker Assy, Luggage Compartment Door[05.1995 - 04.1997] AE11#,CE11#,EE111 |
64621-12070 |
from US $10.72 |
||
|
64631
|
64631
64631-12040 Protector, Luggage Door Lock[05.1995 - 04.1997] AE11#,CE11#,EE111 |
64631-12040 |
US $10.13 |
||
|
69759P
|
69759P
69759-24050 Snap, Hood Auxiliary Catch Hook Control Link[05.1995 - 04.1997] AE11#,CE11#,EE111 |
69759-24050 |
from US $3.84 |
||
|
75129B
|
75129B
75129-13020 Cushion, Rr Licence Plate[05.1995 - 04.1997] AE11#,CE11#,EE111 |
75129-13020 |
US $1.28 |
||
|
9010506051
|
9010506051
90105-06051
New Genuine Part
|
90105-06051 |
— | ||
| replacement | |||||
|
9010506051
|
9010506051
90105-06168 BOLT WASHER BASED |
90105-06168 |
from US $0.76 |
||
|
9011906457
|
9011906457
90119-06457 New Genuine Part |
90119-06457 |
US $2.33 |
||
|
9046901003
|
9046901003
90469-01003 Clamp(For Hood Lock Control Cable) |
90469-01003 |
US $3.52 |
||
|
9090467010
|
9090467010
90904-67010 New Genuine Part |
90904-67010 |
US $1.60 |
||
|
9095001920
|
9095001920
90950-01920
New Genuine Part
|
90950-01920 |
— | ||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
