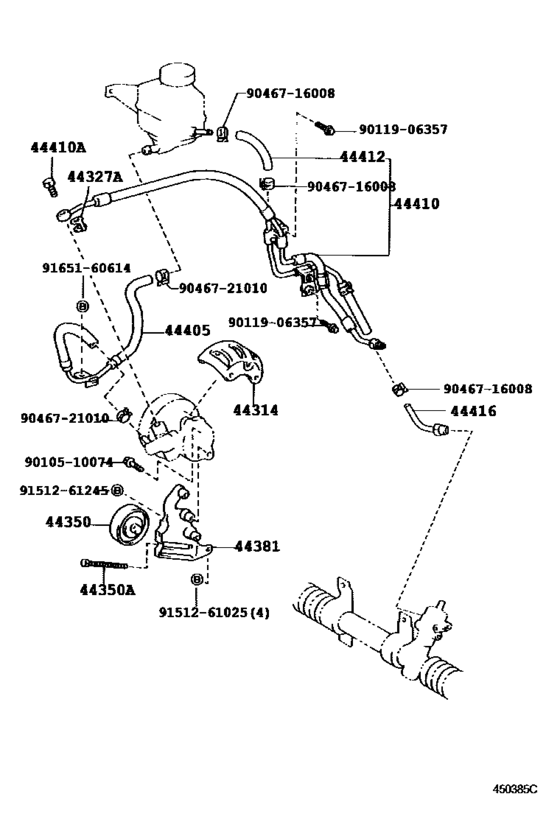

Power Steering Tube ([05.1995 - ] (9505- )CE11#) Diagram Toyota COROLLA
- Year
- 1995 - 1998
- Sales region
- Japan
- Frame
- CE110
- grade
- DX
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1995
- To
- 04.1998
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44314
|
44314
44314-12010 Cover, Pulley[05.1995 - 04.1997] CE11# |
44314-12010 |
US $7.72 |
||
|
44327A
|
44327A
44327-12010 Gasket(For Pressure Hose)[05.1995 - 04.1997] AE11#,CE11# |
44327-12010 |
from US $4.16 |
||
|
44350
|
44350
44350-12052 Pulley Assy, Power Steering Idle[05.1995 - 04.1997] CE11# |
44350-12052 |
US $181.71 |
||
|
44350A
|
44350A
90109-08106 Bolt(For Power Steering Idle Pulley)[05.1995 - 04.1997] CE11# |
90109-08106 |
US $14.88 |
||
|
44381
|
44381
44381-12020
Bracket, Power Steering Idle Pulley
[05.1995 - 04.1997] CE11# |
44381-12020 |
— | ||
|
44405
|
44405
44405-12101 Tube Sub-Assy, Oil Reservoir To Pump, No.1[05.1995 - 04.1997] CE11# |
44405-12101 |
US $88.82 |
||
| replacement | |||||
|
44405
|
44405
44405-12161 Tube Sub-Assy, Oil Reservoir To Pump, No.1OIL RESERVOIR TO PUMP, NO.1 [05.1995 - 04.1997] CE11# |
44405-12161 |
US $104.72 |
||
|
44405
|
44405
44405-12151 Tube Sub-Assy, Oil Reservoir To Pump, No.1[04.1997 - 08.2000] CE11# |
44405-12151 |
US $113.57 |
||
| replacement | |||||
|
44405
|
44405
44405-12161 Tube Sub-Assy, Oil Reservoir To Pump, No.1OIL RESERVOIR TO PUMP, NO.1 [04.1997 - 08.2000] CE11# |
44405-12161 |
US $104.72 |
||
|
44410
|
44410
44040-12072 Tube Assy, Pressure Feed[05.1995 - 12.1995] CE110 |
44040-12072 |
US $327.60 |
||
| replacement | |||||
|
44410
|
44410
44040-12073 Tube Assy, Pressure Feed[05.1995 - 12.1995] CE110 |
44040-12073 |
US $305.70 |
||
|
44410
|
44410
44040-12073 Tube Assy, Pressure Feed[12.1995 - 04.1997] CE110 |
44040-12073 |
US $305.70 |
||
|
44410A
|
44410A
90401-16012 Bolt, Union(For Pressure Feed Tube)[05.1995 - 04.1997] AE11#,CE11# |
90401-16012 |
US $6.81 |
||
|
44412
|
44412
44412-12200 Hose, Return[05.1995 - 04.1997] CE11#,EE111 |
44412-12200 |
US $12.48 |
||
|
44416
|
44416
44416-12210 Tube, Return(For Steering Gear Outlet)[05.1995 - 04.1997] CE11#,EE111 |
44416-12210 |
US $14.41 |
||
|
9010510074
|
9010510074
90105-10074 Bolt(For Body Mounting No.1 Cushion) |
90105-10074 |
US $3.68 |
||
|
9011906357
|
9011906357
90119-06357 BOLT WWASHER |
90119-06357 |
US $1.24 |
||
|
9046716008
|
9046716008
90467-16008
Clip(For Oil Return Hose)
|
90467-16008 |
— | ||
| replacement | |||||
|
9046716008
|
9046716008
90467-16019 Clip(For Return No.1) |
90467-16019 |
from US $3.20 |
||
|
9046721010
|
9046721010
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $4.49 |
||
|
9151261025
|
9151261025
91512-61025
BOLT WASHER BASED H
|
91512-61025 |
— | ||
| replacement | |||||
|
9151261025
|
9151261025
91512-G1025 BOLTFLANGE |
91512-G1025 |
from US $1.01 |
||
|
9151261245
|
9151261245
91512-61245
New Genuine Part
|
91512-61245 |
— | ||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
