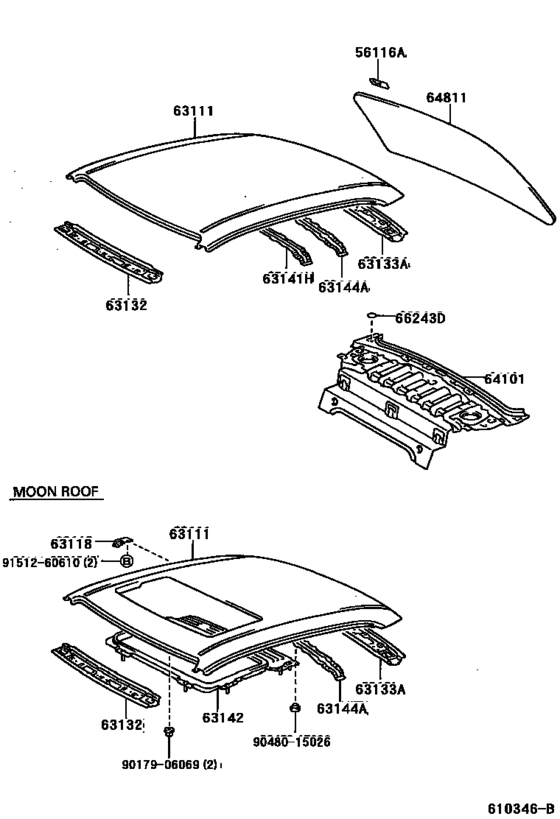

Roof Panel & Back Window Glass ([05.1995 - ] (9505- )) Diagram Toyota COROLLA
- Year
- 1995 - 1998
- Sales region
- Japan
- Frame
- CE110
- grade
- DX
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1995
- To
- 04.1998
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56116A
|
56116A
56116-16050 Stopper, Windshield Glass, No.1[05.1995 - 04.1997] AE11#,CE11#,EE111 |
56116-16050 |
US $4.48 |
||
|
63111
|
63111
63111-12680 Panel, Roof[05.1995 - 04.1997] AE11#,CE11#,EE111 |
63111-12680 |
US $471.74 |
||
|
63132
|
63132
63132-12210 Panel, Windshield Header, Inner[05.1995 - 04.1997] AE11#,CE11#,EE111 |
63132-12210 |
US $53.58 |
||
|
63133A
|
63133A
63133-12240 Frame, Back Window, Upper[05.1995 - 04.1997] AE11#,CE11#,EE111 |
63133-12240 |
US $56.64 |
||
|
63141H
|
63141H
63141-12200 Reinforcement, Roof Panel, Center[05.1995 - 04.1997] AE11#,CE11#,EE111 |
63141-12200 |
US $74.26 |
||
|
63144A
|
63144A
63144-12050 Reinforcement, Roof Panel, No.4[05.1995 - 04.1997] AE11#,CE11#,EE111 |
63144-12050 |
US $33.20 |
||
|
64101
|
64101
64101-12590 Panel Sub-Assy, Upper Back[04.1997 - 10.1999] AE110,114,CE11#,EE111 |
64101-12590 |
US $407.68 |
||
| replacement | |||||
|
64101
|
64101
64101-12591 Panel Sub-Assy, Upper Back[04.1997 - 10.1999] AE110,114,CE11#,EE111 |
64101-12591 |
US $407.68 |
||
|
64101
|
64101
64101-12600 Panel Sub-Assy, Upper Back[05.1995 - 04.1997] AE11#,CE11#,EE111 |
64101-12600 |
US $375.65 |
||
|
64811
|
64811
64811-1A620 Glass, Back Window[05.1995 - 04.1997] AE110,114,CE11#,EE111..DX,LX,XESAL ＊ＥＨＴ，厚さ＝３．５，グリーン |
64811-1A620 |
US $992.99 |
||
|
64811
|
64811
64811-1E100 Glass, Back Window[04.1997 - 08.2000] AE110,114,CE11#,EE111..DX,LX ＊ＥＨＴＴ，厚さ＝３．５，グリーン |
64811-1E100 |
US $994.45 |
||
|
66243D
|
66243D
66243-20010 Protector, Rear Body, No.1[05.1995 - 04.1997] AE11#,CE11#,EE111 |
66243-20010 |
US $2.20 |
||
|
9017906069
|
9017906069
90179-06069
Direct
|
90179-06069 |
— | ||
| replacement | |||||
|
9017906069
|
9017906069
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9048015026
|
9048015026
90480-15026 Stopper, Sliding Roof Panel |
90480-15026 |
US $1.46 |
||
|
9151260610
|
9151260610
91512-60610 New Genuine Part |
91512-60610 |
US $1.46 |
||
| replacement | |||||
|
9151260610
|
9151260610
91511-B0610 BOLT FLANGE |
91511-B0610 |
US $1.76 |
||
