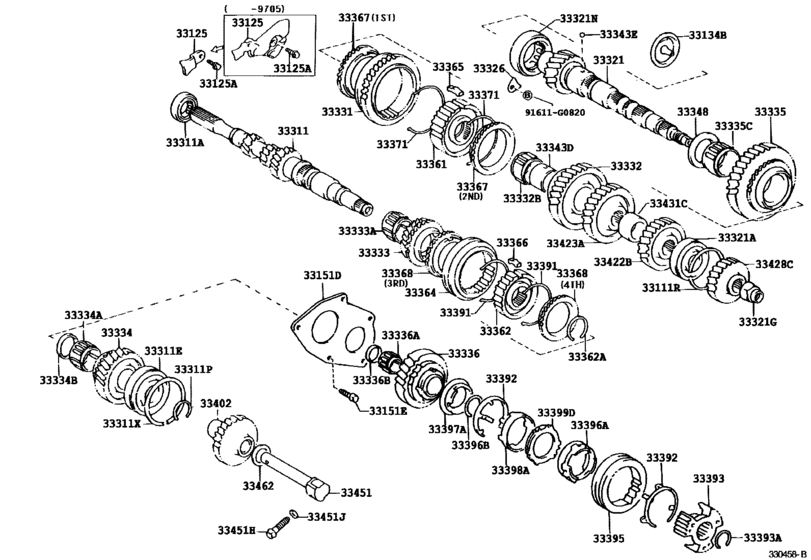

Transmission Gear (Mtm) ([05.1995 - ] S50,S51 (9505- )CE110,113..5F) Diagram Toyota COROLLA
- Year
- 1995 - 1998
- Sales region
- Japan
- Frame
- CE110
- grade
- DX
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1995
- To
- 04.1998
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33111R
|
33111R
90521-66004
Ring, Hole Snap(For Output Shaft Rear Bearing)
[05.1995 - 04.1997] CE110..5F |
90521-66004 |
— | ||
|
33125
|
33125
33125-32011 Receiver, Manual Transaxle Case[05.1995 - 04.1997] CE110..5F |
33125-32011 |
US $5.10 |
||
| replacement | |||||
|
33125
|
33125
33326-21010 Receiver, Manual Transaxle Case[05.1995 - 04.1997] CE110..5F |
33326-21010 |
US $5.10 |
||
|
33125
|
33125
33326-21010 Receiver, Manual Transaxle Case[04.1997 - 08.2000] CE110,113..5F |
33326-21010 |
US $5.10 |
||
|
33125A
|
33125A
91611-60616
Bolt(For Transaxle Case Receiver)
[04.1997 - 08.2000] CE110,113..5F |
91611-60616 |
— | ||
| replacement | |||||
|
33125A
|
33125A
91611-B0616 Bolt(For Transaxle Case Receiver)[04.1997 - 08.2000] CE110,113..5F |
91611-B0616 |
from US $1.19 |
||
|
33134B
|
33134B
33134-33010
Cover, Output Shaft(Mtm)
[05.1995 - 04.1997] CE110..5F |
33134-33010 |
— | ||
|
33151D
|
33151D
33151-32012 Retainer, Bearing, Rear(Mtm)[05.1995 - 04.1997] CE110..5F |
33151-32012 |
US $31.60 |
||
|
33151E
|
33151E
90105-08237 Bolt(For Rear Bearing Retainer)[05.1995 - 04.1997] CE110..5F |
90105-08237 |
US $1.89 |
||
|
33311
|
33311
33311-33021 Shaft, Input[05.1995 - 04.1997] CE110..5F |
33311-33021 |
US $390.21 |
||
| replacements | |||||
|
33311
|
33311
33311-33H01 Shaft, Input[05.1995 - 04.1997] CE110..5F |
33311-33H01 |
US $390.21 |
||
|
33311
|
33311
33311-33H02 Shaft, Input[05.1995 - 04.1997] CE110..5F |
33311-33H02 |
US $390.21 |
||
|
33311
|
33311
33311-33022 Shaft, Input[04.1997 - 04.1998] CE110..5F |
33311-33022 |
US $391.66 |
||
|
33311A
|
33311A
90365-30017
Bearing (For Input Shaft Front)
[05.1995 - 04.1997] CE110..5F |
90365-30017 |
— | ||
|
33311E
|
33311E
90363-29006
Bearing, Radial Ball (For Input Shaft Rear)
[05.1995 - 04.1997] CE110..5F |
90363-29006 |
— | ||
|
33311P
|
33311P
90520-27018 Ring, Shaft Snap (For Input Shaft Rear Bearing)[05.1995 - 04.1997] CE110..5F 厚さ＝２．１５−２．２０，マーク Ａ |
90520-27018 |
US $3.06 |
||
|
33311P
|
33311P
90520-27019 Ring, Shaft Snap (For Input Shaft Rear Bearing)[05.1995 - 04.1997] CE110..5F 厚さ＝２．２０−２．２５，マーク Ｂ |
90520-27019 |
US $3.06 |
||
|
33311P
|
33311P
90520-27020
Ring, Shaft Snap (For Input Shaft Rear Bearing)
[05.1995 - 04.1997] CE110..5F 厚さ＝２．２５−２．３０，マーク Ｃ |
90520-27020 |
— | ||
|
33311P
|
33311P
90520-27021 Ring, Shaft Snap (For Input Shaft Rear Bearing)[05.1995 - 04.1997] CE110..5F 厚さ＝２．３０−２．３５，マーク Ｄ |
90520-27021 |
US $3.06 |
||
|
33311P
|
33311P
90520-27022 Ring, Shaft Snap (For Input Shaft Rear Bearing)[05.1995 - 04.1997] CE110..5F 厚さ＝２．３５−２．４０，マーク Ｅ |
90520-27022 |
US $3.06 |
||
|
33311X
|
33311X
90521-76001 Ring, Hole Snap (For Input Shaft Rear Bearing)[05.1995 - 04.1997] CE110..5F |
90521-76001 |
US $4.22 |
||
|
33321
|
33321
33321-33020 Shaft, Output[05.1995 - 04.1997] CE110..5F |
33321-33020 |
US $368.37 |
||
|
33321A
|
33321A
90363-25056
Bearing (For Output Shaft Rear)
[05.1995 - 04.1997] CE110..5F |
90363-25056 |
— | ||
|
33321G
|
33321G
90179-18003 Nut (For Manual Transmission Output Shaft Rear Set)[05.1995 - 04.1997] CE110..5F |
90179-18003 |
US $32.91 |
||
|
33321N
|
33321N
90365-32013
Bearing (For Output Shaft Front)
[05.1995 - 04.1997] CE110..5F |
90365-32013 |
— | ||
|
33326
|
33326
33326-32010 Plate, Bearing Lock[05.1995 - 04.1997] CE110..5F |
33326-32010 |
US $3.06 |
||
|
33331
|
33331
33331-32022 Gear, Reverse[05.1995 - 04.1997] CE110..5F |
33331-32022 |
US $174.72 |
||
|
33331
|
33331
33331-32023 Gear, Reverse[07.1997 - 08.2000] CE110,113..5F |
33331-32023 |
US $177.63 |
||
|
33332
|
33332
33033-32030
Gear, 2Nd
[05.1995 - 04.1997] CE110..5F |
33033-32030 |
— | ||
|
33332B
|
33332B
90364-39013
Bearing, Needle Roller (For 2Nd Gear)
[05.1995 - 04.1997] CE110..5F |
90364-39013 |
— | ||
|
33333
|
33333
33034-32032
Gear, 3Rd
[05.1995 - 04.1997] CE110..5F |
33034-32032 |
— | ||
|
33333A
|
33333A
90364-33001 Bearing, Needle Roller (For 3Rd Gear)[05.1995 - 04.1997] CE110..5F |
90364-33001 |
US $158.27 |
||
|
33334
|
33334
33035-32040 Gear, 4Th[05.1995 - 04.1997] CE110..5F |
33035-32040 |
US $182 |
||
|
33334A
|
33334A
90364-32013
Bearing, Needle Roller (For 4Th Gear)
[05.1995 - 04.1997] CE110..5F |
90364-32013 |
— | ||
|
33334B
|
33334B
90560-32007 Spacer (For 4Th Gear Bearing)[05.1995 - 04.1997] CE110..5F |
90560-32007 |
US $3.49 |
||
|
33335
|
33335
33032-32020 Gear, 1St[05.1995 - 04.1997] CE110..5F |
33032-32020 |
US $180.54 |
||
| replacement | |||||
|
33335
|
33335
33032-32022 Gear, 1St[05.1995 - 04.1997] CE110..5F |
33032-32022 |
US $182 |
||
|
33335
|
33335
33032-32022 Gear, 1St[04.1997 - 08.2000] CE110,113..5F |
33032-32022 |
US $182 |
||
|
33335C
|
33335C
90364-38004
Bearing, Needle Roller(For 1St Gear)
[05.1995 - 04.1997] CE110..5F |
90364-38004 |
— | ||
|
33336
|
33336
33336-33020
Gear, 5Th
[05.1995 - 04.1997] CE110..5F |
33336-33020 |
— | ||
|
33336A
|
33336A
90364-27005 Bearing, Needle Roller (For 5Th Gear)[05.1995 - 04.1997] CE110..5F |
90364-27005 |
US $127.32 |
||
|
33336B
|
33336B
90560-27004 Spacer (For 5Th Gear Bearing)[05.1995 - 04.1997] CE110..5F |
90560-27004 |
US $3.32 |
||
|
33343D
|
33343D
33343-33010 Bush, 2Nd Gear[05.1995 - 04.1997] CE110..5F |
33343-33010 |
US $19.36 |
||
|
33343E
|
33343E
90360-05012 Ball, Reverse Shift Restrict[05.1995 - 04.1997] AE114,CE11#..5F |
90360-05012 |
from US $0.92 |
||
|
33348
|
33348
33348-32010 Washer, 1St Gear Thrust[05.1995 - 04.1997] CE110..5F |
33348-32010 |
US $20.82 |
||
|
33361
|
33361
33361-32020 Hub, Transmission Clutch, No.1[05.1995 - 04.1997] CE110..5F |
33361-32020 |
US $78.62 |
||
|
33362
|
33362
33362-33011
Hub, Transmission Clutch, No.2
[05.1995 - 04.1997] CE110..5F |
33362-33011 |
— | ||
|
33362A
|
33362A
90520-30002 Ring, Shaft Snap (For Output Shaft Bearing)[05.1995 - 04.1997] CE110..5F 厚さ＝１．９５−１．９９，マーク １ |
90520-30002 |
US $1.05 |
||
|
33362A
|
33362A
90520-30003 Ring, Shaft Snap (For Output Shaft Bearing)[05.1995 - 04.1997] CE110..5F 厚さ＝２．００−２．０４，マーク ２ |
90520-30003 |
US $1.46 |
||
|
33362A
|
33362A
90520-30004 Ring, Shaft Snap (For Output Shaft Bearing)[05.1995 - 04.1997] CE110..5F 厚さ＝２．０５−２．０９，マーク ３ |
90520-30004 |
US $1.46 |
||
|
33362A
|
33362A
90520-30005 Ring, Shaft Snap (For Output Shaft Bearing)[05.1995 - 04.1997] CE110..5F 厚さ＝２．１０−２．１４，マーク ４ |
90520-30005 |
US $1.46 |
||
|
33362A
|
33362A
90520-30006 Ring, Shaft Snap (For Output Shaft Bearing)[05.1995 - 04.1997] CE110..5F 厚さ＝２．１５−２．１９，マーク ５ |
90520-30006 |
US $1.46 |
||
|
33362A
|
33362A
90520-30007 Ring, Shaft Snap (For Output Shaft Bearing)[05.1995 - 04.1997] CE110..5F 厚さ＝２．２０−２．２４，マーク ６ |
90520-30007 |
US $1.46 |
||
|
33364
|
33364
33364-32013
Sleeve, Transmission Hub, No.2
[05.1995 - 04.1997] CE110..5F |
33364-32013 |
— | ||
|
33365
|
33365
33365-32020 Key, Synchromesh Shifting, No.1[05.1995 - 04.1997] CE110..5F |
33365-32020 |
US $3.93 |
||
|
33366
|
33366
33366-32020 Key, Synchromesh Shifting, No.2[05.1995 - 04.1997] CE110..5F |
33366-32020 |
US $3.68 |
||
|
33367
|
33367
33367-17010
Ring, Synchronizer, No.1
[05.1995 - 04.1997] CE110..5F ２ＮＤギヤ側 |
33367-17010 |
— | ||
|
33367
|
33367
33367-32020 Ring, Synchronizer, No.1[05.1995 - 04.1997] CE110..5F １ＳＴギヤ側 |
33367-32020 |
from US $49.62 |
||
|
33368
|
33368
33368-17011 Ring, Synchronizer, No.2[05.1995 - 04.1997] CE110..5F ３ＲＤギヤ側 |
33368-17011 |
from US $34.20 |
||
|
33368
|
33368
33368-20050 Ring, Synchronizer, No.2[04.1997 - 08.2000] CE110,113..5F |
33368-20050 |
US $47.17 |
||
|
33368
|
33368
33368-32020
Ring, Synchronizer, No.2
[05.1995 - 04.1997] CE110..5F ４ＴＨギヤ側 |
33368-32020 |
— | ||
|
33371
|
33371
33371-32020 Spring, Synchromesh Shifting Key, No.1[05.1995 - 04.1997] CE110..5F |
33371-32020 |
US $1.89 |
||
|
33391
|
33391
33391-32010
Spring, Synchromesh Shifting Key, No.2
[05.1995 - 04.1997] CE110..5F |
33391-32010 |
— | ||
|
33392
|
33392
33392-33010
Spring, Synchromesh Shifting Key, No.3
[05.1995 - 04.1997] CE110..5F OUTER RING SIDE |
33392-33010 |
— | ||
|
33392
|
33392
33392-33021 Spring, Synchromesh Shifting Key, No.3[05.1995 - 04.1997] CE110..5F PULL RING SIDE |
33392-33021 |
US $5.48 |
||
|
33393
|
33393
33393-33010
Hub, Transmission Clutch, No.3
[05.1995 - 04.1997] CE110..5F |
33393-33010 |
— | ||
|
33393A
|
33393A
90520-20034 Ring, Shaft Snap (For Transmission Clutch Hub No.3)[05.1995 - 04.1997] CE110..5F 厚さ＝２．２０−２．２５，マーク １３ |
90520-20034 |
US $2.77 |
||
|
33393A
|
33393A
90520-20035 Ring, Shaft Snap (For Transmission Clutch Hub No.3)[05.1995 - 04.1997] CE110..5F 厚さ＝２．２５−２．３０，マーク １４ |
90520-20035 |
US $2.77 |
||
|
33393A
|
33393A
90520-20036
Ring, Shaft Snap (For Transmission Clutch Hub No.3)
[05.1995 - 04.1997] CE110..5F 厚さ＝２．３０−２．３５，マーク １５ |
90520-20036 |
— | ||
|
33393A
|
33393A
90520-20051 Ring, Shaft Snap (For Transmission Clutch Hub No.3)[05.1995 - 04.1997] CE110..5F 厚さ＝２．３５−２．３９，マーク １６ |
90520-20051 |
US $2.33 |
||
|
33393A
|
33393A
90520-20052 Ring, Shaft Snap (For Transmission Clutch Hub No.3)[05.1995 - 04.1997] CE110..5F 厚さ＝２．４０−２．４４，マーク １７ |
90520-20052 |
US $2.33 |
||
|
33393A
|
33393A
90520-20053 Ring, Shaft Snap (For Transmission Clutch Hub No.3)[05.1995 - 04.1997] CE110..5F 厚さ＝２．４５−２．４９，マーク １８ |
90520-20053 |
US $2.33 |
||
|
33393A
|
33393A
90520-20054 Ring, Shaft Snap (For Transmission Clutch Hub No.3)[05.1995 - 04.1997] CE110..5F 厚さ＝２．５０−２．５４，マーク １９ |
90520-20054 |
US $2.33 |
||
|
33393A
|
33393A
90520-20055
Ring, Shaft Snap (For Transmission Clutch Hub No.3)
[05.1995 - 04.1997] CE110..5F 厚さ＝２．５５−２．５９，マーク ２０ |
90520-20055 |
— | ||
|
33393A
|
33393A
90520-20056 Ring, Shaft Snap (For Transmission Clutch Hub No.3)[05.1995 - 04.1997] CE110..5F 厚さ＝２．６０−２．６４，マーク ２１ |
90520-20056 |
US $2.33 |
||
|
33393A
|
33393A
90520-20057 Ring, Shaft Snap (For Transmission Clutch Hub No.3)[05.1995 - 04.1997] CE110..5F 厚さ＝２．６５−２．６９，マーク ２２ |
90520-20057 |
US $2.33 |
||
|
33393A
|
33393A
90520-20058 Ring, Shaft Snap (For Transmission Clutch Hub No.3)[05.1995 - 04.1997] CE110..5F 厚さ＝２．７０−２．７４，マーク ２３ |
90520-20058 |
US $2.33 |
||
|
33393A
|
33393A
90520-20059 Ring, Shaft Snap (For Transmission Clutch Hub No.3)[05.1995 - 04.1997] CE110..5F 厚さ＝２．７５−２．７９，マーク ２４ |
90520-20059 |
US $2.33 |
||
|
33393A
|
33393A
90520-20060 Ring, Shaft Snap (For Transmission Clutch Hub No.3)[05.1995 - 04.1997] CE110..5F 厚さ＝２．８０−２．８４，マーク ２５ |
90520-20060 |
US $2.33 |
||
|
33393A
|
33393A
90520-20061 Ring, Shaft Snap (For Transmission Clutch Hub No.3)[05.1995 - 04.1997] CE110..5F 厚さ＝２．８５−２．８９，マーク ２６ |
90520-20061 |
US $2.33 |
||
|
33393A
|
33393A
90520-20062 Ring, Shaft Snap (For Transmission Clutch Hub No.3)[05.1995 - 04.1997] CE110..5F 厚さ＝２．９０−２．９４，マーク ２７ |
90520-20062 |
US $2.33 |
||
|
33395
|
33395
33395-33010 Sleeve, Transmission Hub, No.3[05.1995 - 04.1997] CE110..5F |
33395-33010 |
US $96.10 |
||
|
33396A
|
33396A
33396-33012
Ring, Synchronizer Pull
[05.1995 - 04.1997] CE110..5F |
33396-33012 |
— | ||
|
33396B
|
33396B
90520-46035 Ring, Snap (For Synchronizer Pull Ring)[05.1995 - 04.1997] AE114,CE11#..5F |
90520-46035 |
from US $2.32 |
||
|
33397A
|
33397A
33397-33012
Ring, Synchronizer, Inner No.5
[05.1995 - 04.1997] CE110..5F |
33397-33012 |
— | ||
|
33398A
|
33398A
33398-12010 Ring, Synchronizer, Middle No.5[05.1995 - 04.1997] AE114,CE11#..5F |
33398-12010 |
from US $41.87 |
||
|
33399D
|
33399D
33399-33010 Ring, Synchronizer, Outer No.5[05.1995 - 04.1997] CE110..5F |
33399-33010 |
US $47.90 |
||
|
33402
|
33402
33402-33010
Gear Sub-Assy, Reverse Idler
[05.1995 - 04.1997] CE110..5F |
33402-33010 |
— | ||
|
33402
|
33402
33402-33011 Gear Sub-Assy, Reverse Idler[07.1997 - 08.2000] CE110,113..5F |
33402-33011 |
US $152.88 |
||
|
33422B
|
33422B
33422-32040 Gear, 4Th Driven[05.1995 - 04.1997] CE110..5F |
33422-32040 |
US $90.27 |
||
|
33423A
|
33423A
33423-32030 Gear, 3Rd Driven[05.1995 - 04.1997] CE110..5F |
33423-32030 |
US $96.10 |
||
|
33428C
|
33428C
33428-32040
Gear, 5Th Driven
[05.1995 - 04.1997] CE110..5F |
33428-32040 |
— | ||
|
33431C
|
33431C
33431-32020 Spacer, Output Gear[05.1995 - 04.1997] CE110..5F |
33431-32020 |
US $15.14 |
||
|
33451
|
33451
33451-32010 Shaft, Reverse Idler Gear[05.1995 - 04.1997] CE110..5F |
33451-32010 |
US $45.57 |
||
|
33451H
|
33451H
90105-08041 Bolt (For Reverse Idler Gear Shaft)[05.1995 - 04.1997] CE110..5F |
90105-08041 |
US $3.06 |
||
|
33451J
|
33451J
90430-08010 Gasket (For Reverse Idler Gear Shaft)[05.1995 - 04.1997] AE11#,CE11#,EE111..MTM |
90430-08010 |
from US $1.12 |
||
|
33462
|
33462
33462-12010 Washer, Reverse Idler Thrust[05.1995 - 04.1997] AE110,111,CE110,EE111..MTM |
33462-12010 |
US $2.77 |
||
|
91611G0820
|
91611G0820
91611-G0820 Bolt |
91611-G0820 |
from US $1.31 |
||
