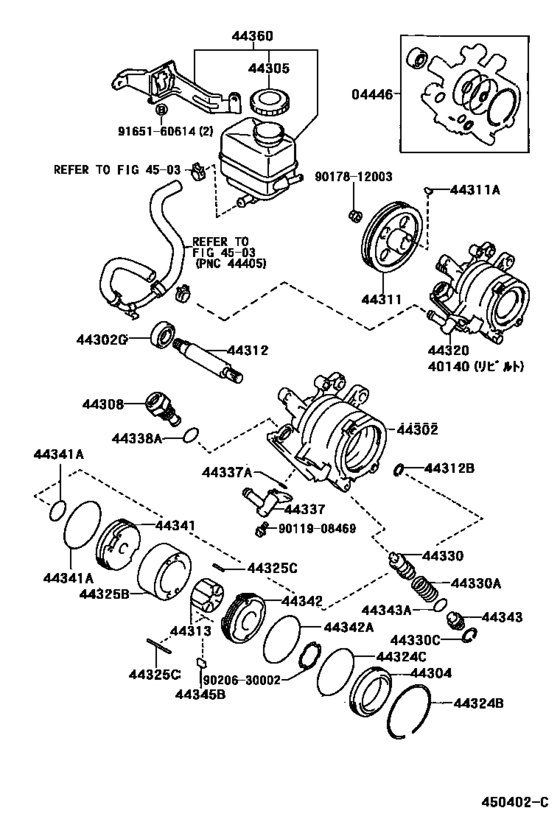

Vane Pump & Reservoir (Power Steering) ([05.1995 - ] (9505- )CE11#) Diagram Toyota COROLLA
- Year
- 1995 - 1998
- Sales region
- Japan
- Frame
- CE110
- grade
- DX
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1995
- To
- 04.1998
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04446
|
04446
04446-27011 Gasket Kit, Power Steering Pump[05.1995 - 04.1997] CE11# |
04446-27011 |
from US $35.57 |
||
|
40140
|
40140
40140-12271 Pump Assy,vane Rebuilt[05.1995 - 04.1997] CE11# ＴＯＹＯＤＡ ＫＯＫＩ |
40140-12271 |
US $771.68 |
||
| replacement | |||||
|
40140
|
40140
44320-12271 Pump Assy, Vane[05.1995 - 04.1997] CE11# ＴＯＹＯＤＡ ＫＯＫＩ |
44320-12271 |
US $1,100.74 |
||
|
44302
|
44302
44302-12041 Housing Sub-Assy, Vane Pump, Front[05.1995 - 04.1997] CE11# |
44302-12041 |
US $329.06 |
||
|
44302G
|
44302G
90311-18007 Seal, Oil, No.2(For Vane Pump Housing)[05.1995 - 04.1997] CE11#,EE111 |
90311-18007 |
from US $3.84 |
||
|
44304
|
44304
44324-12031 Housing Sub-Assy, Vane Pump, Rear[05.1995 - 04.1997] CE11#,EE111 |
44324-12031 |
US $81.54 |
||
|
44305
|
44305
44305-12030
Cap Sub-Assy, Vane Pump Oil Reservoir
[05.1995 - 04.1997] CE11#,EE111 |
44305-12030 |
— | ||
| replacement | |||||
|
44305
|
44305
44305-12040 Cap Sub-Assy, Vane Pump Oil Reservoir[05.1995 - 04.1997] CE11#,EE111 |
44305-12040 |
from US $25.76 |
||
|
44308
|
44308
44308-12022 Union Sub-Assy, Pressure Port[05.1995 - 09.1995] CE11# |
44308-12022 |
US $96.10 |
||
| replacement | |||||
|
44308
|
44308
44308-12042 Union Sub-Assy, Pressure Port[05.1995 - 09.1995] CE11# |
44308-12042 |
US $94.64 |
||
|
44308
|
44308
44308-12042 Union Sub-Assy, Pressure Port[09.1995 - 04.1997] CE11#,EE111 |
44308-12042 |
US $94.64 |
||
|
44311
|
44311
44311-12030 Pulley, Vane Pump[05.1995 - 04.1997] CE11# |
44311-12030 |
US $92.89 |
||
|
44311A
|
44311A
90280-05008 Key, Woodruff(For Distributor Drive Gear)[05.1995 - 04.1997] CE11#,EE111 |
90280-05008 |
US $3.52 |
||
|
44312
|
44312
44312-12030 Shaft, Vane Pump[05.1995 - 04.1997] CE11#,EE111 |
44312-12030 |
from US $35.38 |
||
|
44312B
|
44312B
90520-10003 Ring, Snap, No.1(For Vane Pump Shaft)[05.1995 - 04.1997] AE11#,CE11#,EE111 |
90520-10003 |
US $1.22 |
||
|
44313
|
44313
44313-22040 Rotor, Vane Pump[05.1995 - 04.1997] CE11#,EE111 マーク無し |
44313-22040 |
US $108.33 |
||
|
44313
|
44313
44313-22050 Rotor, Vane Pump[05.1995 - 04.1997] CE11#,EE111 マーク １ |
44313-22050 |
US $101.34 |
||
|
44313
|
44313
44313-22060 Rotor, Vane Pump[05.1995 - 04.1997] CE11#,EE111 マーク ２ |
44313-22060 |
US $103.38 |
||
|
44313
|
44313
44313-22070 Rotor, Vane Pump[05.1995 - 04.1997] CE11#,EE111 マーク ３ |
44313-22070 |
US $103.38 |
||
|
44313
|
44313
44313-22080 Rotor, Vane Pump[05.1995 - 04.1997] CE11#,EE111 マーク ４ |
44313-22080 |
US $103.38 |
||
|
44320
|
44320
44320-12271 Pump Assy, Vane[05.1995 - 04.1997] CE11# |
44320-12271 |
US $1,100.74 |
||
|
44324B
|
44324B
90521-62002 Ring, Snap, No.1(For Vane Pump Housing)[05.1995 - 04.1997] CE11#,EE111 |
90521-62002 |
US $3.14 |
||
|
44324C
|
44324C
90301-53006
Ring, O(For Pump Housing Rear)
[05.1995 - 04.1997] CE11#,EE111 |
90301-53006 |
— | ||
| replacement | |||||
|
44324C
|
44324C
90301-53007 Ring, O(For Pump Housing Rear)[05.1995 - 04.1997] CE11#,EE111 |
90301-53007 |
from US $2.34 |
||
|
44325B
|
44325B
44325-12110 Ring, Fixed(For Vane Pump)[05.1995 - 04.1997] CE11#,EE111 マーク無し |
44325-12110 |
US $117.94 |
||
|
44325B
|
44325B
44325-12120 Ring, Fixed(For Vane Pump)[05.1995 - 04.1997] CE11#,EE111 マーク １ |
44325-12120 |
US $117.94 |
||
|
44325B
|
44325B
44325-12130 Ring, Fixed(For Vane Pump)[05.1995 - 04.1997] CE11#,EE111 マーク ２ |
44325-12130 |
US $117.94 |
||
|
44325B
|
44325B
44325-12140 Ring, Fixed(For Vane Pump)[05.1995 - 04.1997] CE11#,EE111 マーク ３ |
44325-12140 |
US $117.94 |
||
|
44325B
|
44325B
44325-12150 Ring, Fixed(For Vane Pump)[05.1995 - 04.1997] CE11#,EE111 マーク ４ |
44325-12150 |
US $117.94 |
||
|
44325C
|
44325C
90250-04047 Pin, Straight(For Vane Pump Cam Ring)[05.1995 - 04.1997] CE11#,EE111 長さ＝２８，外径＝４．０ |
90250-04047 |
US $1.05 |
||
|
44325C
|
44325C
90250-04049 Pin, Straight(For Vane Pump Cam Ring)[05.1995 - 04.1997] CE11#,EE111 長さ＝４３，外径＝４．０ |
90250-04049 |
US $2.62 |
||
|
44330
|
44330
44330-20070 Valve Assy, Flow Control[05.1995 - 04.1997] CE11# マーク Ａ |
44330-20070 |
US $115.02 |
||
| replacement | |||||
|
44330
|
44330
44330-32730 Valve Assy, Flow Control[05.1995 - 04.1997] CE11# マーク Ａ |
44330-32730 |
US $115.02 |
||
|
44330
|
44330
44330-20080 Valve Assy, Flow Control[05.1995 - 04.1997] CE11# マーク Ｂ |
44330-20080 |
US $115.02 |
||
| replacement | |||||
|
44330
|
44330
44330-32740 Valve Assy, Flow Control[05.1995 - 04.1997] CE11# マーク Ｂ |
44330-32740 |
US $115.02 |
||
|
44330
|
44330
44330-20090 Valve Assy, Flow Control[05.1995 - 04.1997] CE11# マーク Ｃ |
44330-20090 |
US $115.02 |
||
| replacement | |||||
|
44330
|
44330
44330-32750 Valve Assy, Flow Control[05.1995 - 04.1997] CE11# マーク Ｃ |
44330-32750 |
US $115.02 |
||
|
44330
|
44330
44330-20100 Valve Assy, Flow Control[05.1995 - 04.1997] CE11# マーク Ｄ |
44330-20100 |
US $115.02 |
||
| replacement | |||||
|
44330
|
44330
44330-32760 Valve Assy, Flow Control[05.1995 - 04.1997] CE11# マーク Ｄ |
44330-32760 |
US $115.02 |
||
|
44330
|
44330
44330-20110 Valve Assy, Flow Control[05.1995 - 04.1997] CE11# マーク Ｅ |
44330-20110 |
US $115.02 |
||
| replacement | |||||
|
44330
|
44330
44330-32770 Valve Assy, Flow Control[05.1995 - 04.1997] CE11# マーク Ｅ |
44330-32770 |
US $115.02 |
||
|
44330
|
44330
44330-20120 Valve Assy, Flow Control[05.1995 - 04.1997] CE11# マーク Ｆ |
44330-20120 |
US $115.02 |
||
| replacement | |||||
|
44330
|
44330
44330-32780 Valve Assy, Flow Control[05.1995 - 04.1997] CE11# マーク Ｆ |
44330-32780 |
US $115.02 |
||
|
44330A
|
44330A
90501-12103 Spring, Compression(For Flow Control Valve)[05.1995 - 04.1997] CE11#,EE111 |
90501-12103 |
US $2.56 |
||
|
44330C
|
44330C
96151-01700 Ring, Snap(For Flow Control Valve)[05.1995 - 09.1995] CE11# |
96151-01700 |
US $3.67 |
||
|
44337
|
44337
44337-12091 Union, Power Steering Suction Port[05.1995 - 04.1997] CE11# |
44337-12091 |
US $39.02 |
||
|
44337A
|
44337A
90301-11016 Ring, O(For Power Steering Suction Port)[10.1996 - 04.1997] AE11#,CE11#,EE111 |
90301-11016 |
from US $2.24 |
||
|
44337A
|
44337A
90301-12003
Ring, O(For Power Steering Suction Port)
[05.1995 - 10.1996] CE11#,EE111 |
90301-12003 |
— | ||
| replacement | |||||
|
44337A
|
44337A
90301-11016 Ring, O(For Power Steering Suction Port)[05.1995 - 10.1996] CE11#,EE111 |
90301-11016 |
from US $2.24 |
||
|
44338A
|
44338A
90301-19003
Ring, O(For Pressure Port Union)
[05.1995 - 10.1996] AE11#,CE11#,EE111 内径＝１９．５，外径＝２２．５ |
90301-19003 |
— | ||
| replacement | |||||
|
44338A
|
44338A
90301-19018 Ring, O(For Pressure Port Union)[05.1995 - 10.1996] AE11#,CE11#,EE111 内径＝１９．５，外径＝２２．５ |
90301-19018 |
from US $2.28 |
||
|
44338A
|
44338A
90301-19013
Seal, Oil, No.1(For Vane Pump Housing)
[10.1996 - 04.1997] AE11#,CE11#,EE111 内径＝１９．２，外径＝２２．３ |
90301-19013 |
— | ||
| replacement | |||||
|
44338A
|
44338A
90301-19018 Ring, O(For Pressure Port Union)[10.1996 - 04.1997] AE11#,CE11#,EE111 内径＝１９．２，外径＝２２．３ |
90301-19018 |
from US $2.28 |
||
|
44341
|
44341
44341-32010 Plate, Vane Pump Side, Front[05.1995 - 04.1997] CE11#,EE111 |
44341-32010 |
US $39.17 |
||
|
44341A
|
44341A
90301-25001
Ring, O(For Vane Pump Front Side Plate)
[05.1995 - 04.1997] CE11#,EE111 内側 |
90301-25001 |
— | ||
| replacement | |||||
|
44341A
|
44341A
90301-25008 Ring, O(For Vane Pump Front Side Plate)[05.1995 - 04.1997] CE11#,EE111 内側 |
90301-25008 |
US $4.19 |
||
|
44341A
|
44341A
90301-52001 Ring, O(For Pump Housing Rear)[05.1995 - 04.1997] CE11#,EE111 外側 |
90301-52001 |
from US $3.26 |
||
|
44342
|
44342
44342-32010 Plate, Vane Pump Side, Rear[05.1995 - 04.1997] CE11#,EE111 |
44342-32010 |
US $55.91 |
||
|
44342A
|
44342A
90301-52001 Ring, O(For Pump Housing Rear)[05.1995 - 04.1997] CE11#,EE111 |
90301-52001 |
from US $3.26 |
||
|
44343
|
44343
44343-12010
Seat, Flow Control Spring
[05.1995 - 09.1995] CE11# |
44343-12010 |
— | ||
|
44343A
|
44343A
96711-19014 O-Ring[05.1995 - 09.1995] CE11# |
96711-19014 |
from US $2.34 |
||
|
44345B
|
44345B
44345-12010 Plate, Vane Pump[05.1995 - 04.1997] CE11#,EE111 長さ＝１４．９９７ |
44345-12010 |
US $10.56 |
||
|
44345B
|
44345B
44345-12020 Plate, Vane Pump[05.1995 - 04.1997] CE11#,EE111 長さ＝１４．９９５ |
44345-12020 |
US $6.12 |
||
|
44345B
|
44345B
44345-12030 Plate, Vane Pump[05.1995 - 04.1997] CE11#,EE111 長さ＝１４．９９３ |
44345-12030 |
US $6.12 |
||
|
44345B
|
44345B
44345-12040 Plate, Vane Pump[05.1995 - 04.1997] CE11#,EE111 長さ＝１４．９９１ |
44345-12040 |
US $6.12 |
||
|
44345B
|
44345B
44345-12050 Plate, Vane Pump[05.1995 - 04.1997] CE11#,EE111 長さ＝１４．９８９ |
44345-12050 |
US $6.12 |
||
|
44360
|
44360
44360-12050
Reservoir Assy, Vane Pump Oil
[05.1995 - 04.1997] CE11#,EE111 |
44360-12050 |
— | ||
|
9011908469
|
9011908469
90119-08469
Bolt(for Dust Cover To Steering Knuckle Arm Setting)
|
90119-08469 |
— | ||
|
9017812003
|
9017812003
90178-12003 Nut(For Vane Pump Pulley) |
90178-12003 |
from US $0.96 |
||
|
9020630002
|
9020630002
90206-30002 New Genuine Part |
90206-30002 |
US $4.80 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
