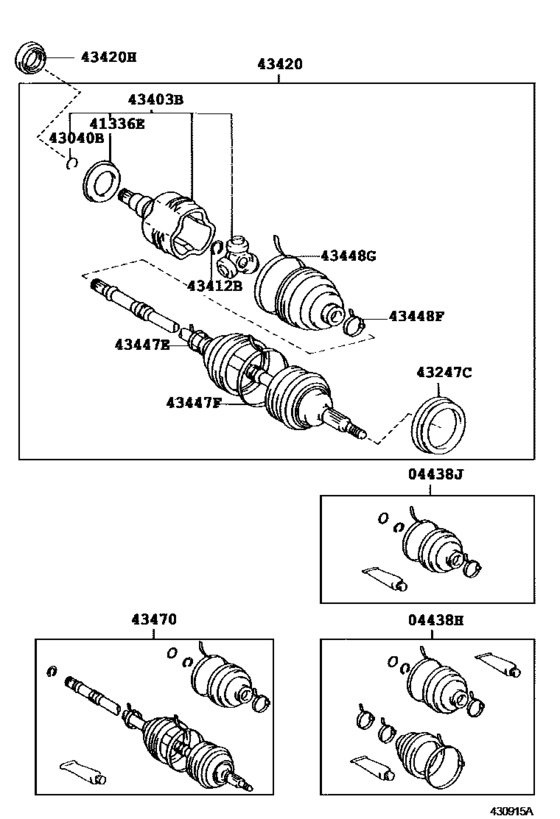

Front Drive Shaft ([04.2001 - ] LH (0104- )AE112,CE110) Diagram Toyota COROLLA
- Year
- 1997 - 2001
- Sales region
- General
- Frame
- CE110
- grade
- XL
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 04.1997
- To
- 09.2001
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438H
|
04438H
04438-12290
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[04.1997 - 04.1998] CE110..GEN; CE110 |
04438-12290 |
— | ||
| replacement | |||||
|
04438H
|
04438H
04438-20134
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[04.1997 - 04.1998] CE110..GEN; CE110 |
04438-20134 |
— | ||
|
04438H
|
04438H
04438-12660 Boot Kit, Front Drive Shaft, In & Outboard, Rh[04.2001 - 08.2002] AE112,CE110..SED..(GEN,VEN) |
04438-12660 |
US $145.60 |
||
| replacement | |||||
|
04438H
|
04438H
04428-12250 Boot Kit, Front Drive Shaft, In & Outboard, Rh[04.2001 - 08.2002] AE112,CE110..SED..(GEN,VEN) |
04428-12250 |
from US $141.52 |
||
|
04438H
|
04438H
04438-20131 Boot Kit, Front Drive Shaft, In & Outboard, Rh[04.1998 - 01.1999] CE110..GEN; CE110 |
04438-20131 |
from US $145.60 |
||
| replacement | |||||
|
04438H
|
04438H
04438-20134
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[04.1998 - 01.1999] CE110..GEN; CE110 |
04438-20134 |
— | ||
|
04438H
|
04438H
04438-20132 Boot Kit, Front Drive Shaft, In & Outboard, Rh[01.1999 - 10.1999] CE110 |
04438-20132 |
US $145.60 |
||
| replacement | |||||
|
04438H
|
04438H
04438-20133 Boot Kit, Front Drive Shaft, In & Outboard, Rh[01.1999 - 10.1999] CE110 |
04438-20133 |
US $145.60 |
||
|
04438J
|
04438J
04438-12420 Boot Kit, Front Drive Shaft Inboard Joint, Rh[04.1997 - 04.1998] CE110..GEN; CE110 |
04438-12420 |
US $90.27 |
||
| replacement | |||||
|
04438J
|
04438J
04438-42201 Boot Kit, Front Drive Shaft Inboard Joint, Rh[04.1997 - 04.1998] CE110..GEN; CE110 |
04438-42201 |
from US $66.73 |
||
|
04438J
|
04438J
04438-12470 Boot Kit, Front Drive Shaft Inboard Joint, Rh[04.2001 - 08.2002] AE112,CE110..SED..(GEN,VEN) |
04438-12470 |
US $90.27 |
||
| replacement | |||||
|
04438J
|
04438J
04438-42201 Boot Kit, Front Drive Shaft Inboard Joint, Rh[04.2001 - 08.2002] AE112,CE110..SED..(GEN,VEN) |
04438-42201 |
from US $66.73 |
||
|
04438J
|
04438J
04438-20121 Boot Kit, Front Drive Shaft Inboard Joint, Rh[04.1998 - 10.1999] CE110..GEN; CE110 |
04438-20121 |
US $90.27 |
||
| replacement | |||||
|
04438J
|
04438J
04438-42201 Boot Kit, Front Drive Shaft Inboard Joint, Rh[04.1998 - 10.1999] CE110..GEN; CE110 |
04438-42201 |
from US $66.73 |
||
|
41336E
|
41336E
41336-12060 Cover, Front Drive Shaft Dust, Rh[11.2000 - 09.2001] CE110 |
41336-12060 |
US $3.20 |
||
|
41336E
|
41336E
41336-32020 Cover, Dust(For Differential Side Gear Shaft)[04.1997 - 10.1999] CE110 |
41336-32020 |
US $4.89 |
||
|
43040B
|
43040B
90521-27005 Ring, Hole Snap (For Rear Differential Side Gear Shaft)[04.1997 - 10.1999] CE110 |
90521-27005 |
from US $1.76 |
||
|
43247C
|
43247C
43247-33010 Deflector, Front Wheel Bearing Dust, No.2[05.1995 - 09.1998] AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..ARL,GCC,GEN |
43247-33010 |
US $36.48 |
||
|
43403B
|
43403B
43040-20010
Joint Assy, Front Drive Inboard, Rh
[04.1997 - 06.1998] CE110..GEN; CE110 |
43040-20010 |
— | ||
| replacement | |||||
|
43403B
|
43403B
43040-32040 Joint Assy, Drive Shaft Inboard, Lh[04.1997 - 06.1998] CE110..GEN; CE110 |
43040-32040 |
from US $227.14 |
||
|
43403B
|
43403B
43040-32040 Joint Assy, Drive Shaft Inboard, Lh[06.1998 - 10.1999] CE110 |
43040-32040 |
from US $227.14 |
||
|
43412B
|
43412B
90520-22005 Ring, Snap (For Rear Drive Shaft)[05.1995 - 08.1998] EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111. .GCC,GEN,VEN |
90520-22005 |
from US $1.24 |
||
|
43420
|
43420
43420-12320 Shaft Assy, Front Drive, Lh[04.1997 - 09.1997] CE110 |
43420-12320 |
US $963.87 |
||
| replacements | |||||
|
43420
|
43420
43420-12323 Shaft Assy, Front Drive, Lh[04.1997 - 09.1997] CE110 |
43420-12323 |
US $963.87 |
||
|
43420
|
43420
90178-22001 Nut (For Axle Shaft)[04.1997 - 09.1997] CE110 |
90178-22001 |
from US $2.15 |
||
|
43420
|
43420
43420-12321 Shaft Assy, Front Drive, Lh[09.1997 - 01.1999] CE110..GEN; CE110 |
43420-12321 |
US $963.87 |
||
| replacement | |||||
|
43420
|
43420
43420-12323 Shaft Assy, Front Drive, Lh[09.1997 - 01.1999] CE110..GEN; CE110 |
43420-12323 |
US $963.87 |
||
|
43420
|
43420
43420-12322 Shaft Assy, Front Drive, Lh[01.1999 - 10.1999] CE110 |
43420-12322 |
US $963.87 |
||
| replacement | |||||
|
43420
|
43420
43420-12323 Shaft Assy, Front Drive, Lh[01.1999 - 10.1999] CE110 |
43420-12323 |
US $963.87 |
||
|
43420
|
43420
43420-12323 Shaft Assy, Front Drive, Lh[04.2001 - 09.2001] CE110 |
43420-12323 |
US $963.87 |
||
|
43420H
|
43420H
90311-35033 Seal, Oil, No.2(For Transaxle Case)[04.1997 - 10.1999] CE110 |
90311-35033 |
from US $6.40 |
||
|
43420H
|
43420H
90311-35048 Oil Seal, Front Drive Shaft, Lh[07.2000 - 09.2001] CE110 |
90311-35048 |
from US $4.64 |
||
|
43447E
|
43447E
42345-12150 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)[04.2001 - 08.2002] AE112,CE110..ARL,GEN,VEN ID=29.6 |
42345-12150 |
US $4.95 |
||
| replacement | |||||
|
43447E
|
43447E
42345-12190 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)[04.2001 - 08.2002] AE112,CE110..ARL,GEN,VEN ID=29.6 |
42345-12190 |
US $2.91 |
||
|
43447E
|
43447E
42345-16030 Clamp, Rear Drive Shaft Boot[04.1997 - 01.1999] AE112,CE110..ARL,GCC,GEN ID=35.45; CE110;AE112..ARL,BZ,GCC,GEN,IDN ID=35.45 |
42345-16030 |
US $8.56 |
||
|
43447E
|
43447E
42345-20100 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)[01.1999 - 04.2001] AE112,CE110..ARL,GCC,GEN,VEN ID=31.1; AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN) ID=31.1 |
42345-20100 |
US $7.13 |
||
|
43447F
|
43447F
42345-12140 Clamp, No.2 (For Rear Drive Shaft Outboard Joint Boot Rh)[04.2001 - 08.2002] AE112,CE110..ARL,GEN,VEN ID=92.0 |
42345-12140 |
US $7.72 |
||
| replacement | |||||
|
43447F
|
43447F
42345-12180 Clamp (For Front Axle Outboard Joint Boot Lh)[04.2001 - 08.2002] AE112,CE110..ARL,GEN,VEN ID=92.0 |
42345-12180 |
US $5.28 |
||
|
43447F
|
43447F
42345-16040
Clamp (For Rear Drive Shaft Outboard Joint Boot)
[04.1997 - 01.1999] AE112,CE110..ARL,GCC,GEN ID=91.9; CE110;AE112..ARL,BZ,GCC,GEN,IDN ID=91.9 |
42345-16040 |
— | ||
|
43447F
|
43447F
42345-20110 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[01.1999 - 10.1999] AE112,CE110..ARL,GCC,GEN,VEN ID=87.25; AE112,CE110 ID=87.25 |
42345-20110 |
US $6.84 |
||
| replacement | |||||
|
43447F
|
43447F
42345-20120 Clamp, No.2 (For Rear Drive Shaft Outboard Joint Boot Rh)[01.1999 - 10.1999] AE112,CE110..ARL,GCC,GEN,VEN ID=87.25; AE112,CE110 ID=87.25 |
42345-20120 |
US $8.30 |
||
|
43447F
|
43447F
42345-20120 Clamp, No.2 (For Rear Drive Shaft Outboard Joint Boot Rh)[01.1999 - 10.1999] AE112,CE110..ARL,GCC,GEN,VEN ID=90.6; AE112,CE110 ID=90.6 |
42345-20120 |
US $8.30 |
||
|
43448F
|
43448F
90949-01078 Clamp (For Rear Drive Shaft Outboard Joint Boot)[04.1997 - 08.1998] AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI )..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN); AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
90949-01078 |
US $0.61 |
||
|
43448G
|
43448G
90949-01076
Clamp (For Rear Drive Shaft Outboard Joint Boot)
[01.1999 - 02.2002] EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110 ,ZZE11#..GCC,GEN,TUR,VEN; AE111..WG..5F;AE112..GLI,SEG;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(ARL,G CC,GEN,GENKD,MA,TH,TUR,VEN);AE110,CE110,EE1 |
90949-01076 |
— | ||
| replacement | |||||
|
43448G
|
43448G
42345-12160 Clamp, No.2 (For Drive Shaft Inboard Joint Boot)Big [01.1999 - 02.2002] EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110 ,ZZE11#..GCC,GEN,TUR,VEN; AE111..WG..5F;AE112..GLI,SEG;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(ARL,G CC,GEN,GENKD,MA,TH,TUR,VEN);AE110,CE110,EE1 |
42345-12160 |
from US $4.64 |
||
|
43470
|
43470
43470-29345 Shaft Assy, Front Drive Outboard Joint, Rh[04.1997 - 09.1997] AE112,CE110 |
43470-29345 |
US $559.10 |
||
| replacements | |||||
|
43470
|
43470
43470-29349 Shaft Assy, Front Drive Outboard Joint, Rh[04.1997 - 09.1997] AE112,CE110 |
43470-29349 |
from US $453.43 |
||
|
43470
|
43470
90178-22001 Nut (For Axle Shaft)[04.1997 - 09.1997] AE112,CE110 |
90178-22001 |
from US $2.15 |
||
|
43470
|
43470
43470-29346 Shaft Assy, Front Drive Outboard Joint, Lh[09.1997 - 04.1998] AE112,CE110..GCC,GEN; CE110;AE112..GCC,IDN |
43470-29346 |
US $560.56 |
||
| replacement | |||||
|
43470
|
43470
43470-29349 Shaft Assy, Front Drive Outboard Joint, Rh[09.1997 - 04.1998] AE112,CE110..GCC,GEN; CE110;AE112..GCC,IDN |
43470-29349 |
from US $453.43 |
||
|
43470
|
43470
43470-29347 Shaft Assy, Front Drive Outboard Joint, Rh[04.1998 - 01.1999] AE112,CE110..ARL,GCC,GEN; CE110;AE112..ARL,BZ,GCC,GEN,IDN |
43470-29347 |
US $560.56 |
||
| replacement | |||||
|
43470
|
43470
43470-29349 Shaft Assy, Front Drive Outboard Joint, Rh[04.1998 - 01.1999] AE112,CE110..ARL,GCC,GEN; CE110;AE112..ARL,BZ,GCC,GEN,IDN |
43470-29349 |
from US $453.43 |
||
|
43470
|
43470
43470-29348
Shaft Assy, Front Drive Outboard Joint, Rh
[01.1999 - 04.2001] AE112,CE110..ARL,GCC,GEN; AE112..XLI..(BZ,GCC,GEN,IDN);AE112,CE110..(GLI,SEG,XL)..(ARL,BZ,GCC,GEN,IDN,PHL) |
43470-29348 |
— | ||
| replacement | |||||
|
43470
|
43470
43470-29349 Shaft Assy, Front Drive Outboard Joint, Rh[01.1999 - 04.2001] AE112,CE110..ARL,GCC,GEN; AE112..XLI..(BZ,GCC,GEN,IDN);AE112,CE110..(GLI,SEG,XL)..(ARL,BZ,GCC,GEN,IDN,PHL) |
43470-29349 |
from US $453.43 |
||
|
43470
|
43470
43470-29349 Shaft Assy, Front Drive Outboard Joint, Rh[04.2001 - 09.2001] AE112,CE110..ARL,GEN |
43470-29349 |
from US $453.43 |
||
