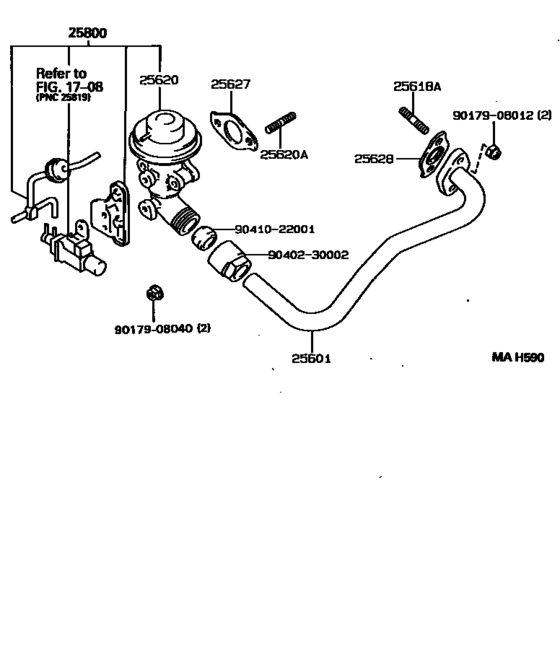

Exhaust Gas Recirculation System ([10.1997 - ] (9710- )2CE) Diagram Toyota COROLLA
- Year
- 1999 - 2000
- Sales region
- General
- Frame
- CE110
- grade
- XLI
- body
- SED
- ENGINE
- 2CE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 10.1999
- To
- 10.2000
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25601
|
25601
25601-64071 Pipe Sub-Assy, Egr, No.1[10.1999 - 10.2000] 2CE..CE110 |
25601-64071 |
US $72.36 |
||
|
25618A
|
25618A
92122-60822 Stud[10.1999 - 10.2000] 2CE..CE110 |
92122-60822 |
US $1.31 |
||
|
25620
|
25620
25620-64200 Valve Assy, Egr[10.1999 - 10.2000] 2CE..CE110 |
25620-64200 |
US $260.62 |
||
|
25620A
|
25620A
90116-08198 Bolt, Stud(For Egr Valve)[10.1999 - 10.2000] 2CE..CE110 |
90116-08198 |
US $3.20 |
||
|
25627
|
25627
25627-64030
Gasket, Egr Valve
[10.1999 - 10.2000] 2CE..CE110 |
25627-64030 |
— | ||
|
25628
|
25628
25628-64030 Gasket, Egr Inlet[10.1999 - 10.2000] 2CE..CE110 |
25628-64030 |
from US $11.66 |
||
|
25800
|
25800
25800-64151 Valve Assy, Electric Egr ControlELECTRIC EGR CONTROL [10.1999 - 10.2000] 2CE..CE110 |
25800-64151 |
US $396.03 |
||
|
9017908012
|
9017908012
90179-08012 NUT |
90179-08012 |
US $3.68 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.13 |
||
|
9040230002
|
9040230002
90402-30002 Nut, Union, Egr Pipe, No.1 |
90402-30002 |
US $11.07 |
||
|
9041022001
|
9041022001
90410-22001 Sleeve, Ball, Egr Pipe, No.1 |
90410-22001 |
US $2.62 |
