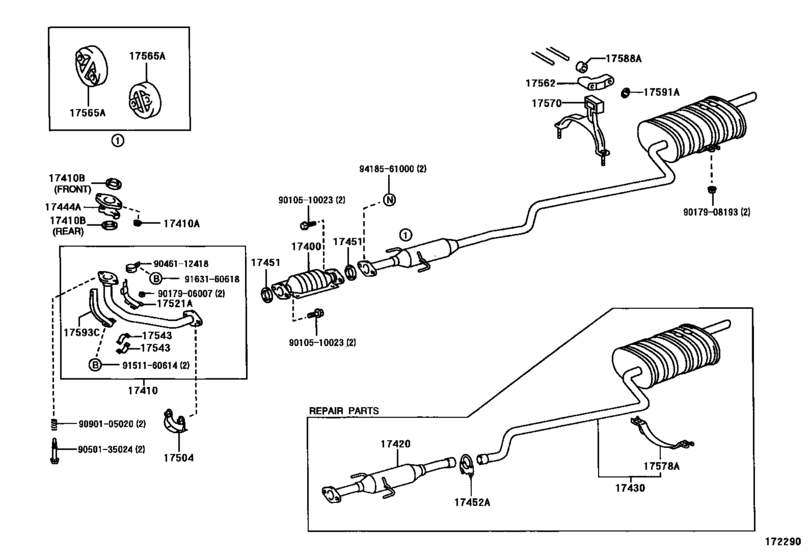

Exhaust Pipe ([10.1999 - ] (9910- )2CE) Diagram Toyota COROLLA
- Year
- 1999 - 2000
- Sales region
- General
- Frame
- CE110
- grade
- XLI
- body
- SED
- ENGINE
- 2CE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 10.1999
- To
- 10.2000
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17400
|
17400
18450-64010 Converter Assy, W/catalystW/CATALYST [10.1999 - 10.2000] 2CE..CE110 *115=TOYOTA/-99/N |
18450-64010 |
US $978.43 |
||
|
17410
|
17410
17410-64790 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [10.1999 - 10.2000] 2CE..CE110 |
17410-64790 |
US $168.90 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[10.1999 -] 5AFE,2C#..AE110,CE110; 5AFE..AE110..4FC |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[10.1999 -] 5AFE,2C#..AE110,CE110; 5AFE..AE110..4FC |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06061 Gasket, Exhaust Pipe[04.1997 - 09.2001] 2C#..CE110..GEN FRONT |
90917-06061 |
from US $5.17 |
||
|
17410B
|
17410B
90917-06080 Gasket, Exhaust Pipe[10.1999 - 02.2000] 2C#,2E,4EFE..CE110,EE11#..GCC,GEN,VEN REAR; 2E,4EFE..EE11#..GENKD,MA,PHL,TUR,VEN REAR |
90917-06080 |
from US $16.03 |
||
|
17420
|
17420
17420-64281
Pipe Assy, Exhaust, Center
[10.1999 - 10.2000] 2CE..CE110 |
17420-64281 |
— | ||
|
17430
|
17430
17430-6A210 Pipe Assy, Exhaust, TailEXHAUST, TAIL [10.1999 - 10.2000] 2CE..CE110 |
17430-6A210 |
US $505.23 |
||
|
17444A
|
17444A
17444-64030 Spacer, Exhaust Front Pipe[04.1997 - 09.2001] 2C#..CE110..GEN |
17444-64030 |
US $90.27 |
||
|
17451
|
17451
90917-06045 Gasket, Exhaust Pipe[10.1999 - 10.2000] 2CE..CE110 |
90917-06045 |
from US $1.70 |
||
| replacement | |||||
|
17451
|
17451
90080-43028 Gasket, Exhaust Pipe[10.1999 - 10.2000] 2CE..CE110 |
90080-43028 |
US $19.44 |
||
|
17452A
|
17452A
17452-16120 Clamp, Exhaust Pipe[10.1999 - 09.2001] 4AFE..AE111..WG..4FC;4AFE..AE111..LHD..(GCC,GEN);4AF,7AFE,2CE,2E..AE111,112,CE110, EE110..GCC,GEN W/O(CONVERTER) |
17452-16120 |
US $31.62 |
||
|
17504
|
17504
17582-41030 Bracket, Catalytic Converter Support, Upper[10.1999 - 10.2000] 2CE..CE110 |
17582-41030 |
US $18.78 |
||
|
17521A
|
17521A
17521-64180 Protector, Exhaust Pipe, Upper No.1EXHAUST PIPE, UPPER NO.1 [10.1999 - 10.2000] 2CE..CE110 |
17521-64180 |
US $40.04 |
||
|
17543
|
17543
17543-26010 Stay, Exhaust Pipe Protector, No.3[04.1997 - 09.2001] 2C#..CE110..GEN |
17543-26010 |
US $7.43 |
||
|
17562
|
17562
17562-16240 Support, Exhaust Pipe, No.2[05.1995 -] 2E..EE110..GCC,GEN;4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE,2C#,4EFE..AE11#,CE110,EE111 ..ARL,GCC,GEN,VEN;4AFE,3ZZFE,4ZZFE..AE111,ZZE11#..LHD..SED..(GCC,GEN,TUR,VEN) |
17562-16240 |
from US $18.60 |
||
|
17565A
|
17565A
17565-11160 Support, Exhaust Pipe, No.1[04.1997 - 01.2002] 2C#,3ZZFE,4ZZFE..CE110,ZZE11#..GEN,TUR |
17565-11160 |
from US $9.17 |
||
|
17570
|
17570
17570-11010 Bracket Assy, Exhaust Pipe SupportEXHAUST PIPE SUPPORT [10.1999 - 10.2000] 2CE..CE110 |
17570-11010 |
US $29.70 |
||
|
17578A
|
17578A
17578-11020 Clamp, Muffler[11.1998 -] 5AFE,2C#,4EFE..AE110,CE110,EE111..GEN,VEN; 5AFE..AE110..4FC..GEN |
17578-11020 |
from US $23.58 |
||
|
17588A
|
17588A
17588-16020 Spacer, Exhaust Pipe Hanger[05.1995 -] 2E..EE110..GCC,GEN;4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE,2C#,4EFE..AE11#,CE110,EE111 ..ARL,GCC,GEN,VEN;4AFE,3ZZFE,4ZZFE..AE111,ZZE11#..LHD..SED..(GCC,GEN,TUR,VEN) |
17588-16020 |
US $6.88 |
||
|
17591A
|
17591A
17591-16020 Stopper, Exhaust Pipe Support[05.1995 -] 2E..EE110..GCC,GEN;4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE,2C#,4EFE..AE11#,CE110,EE111 ..ARL,GCC,GEN,VEN;4AFE,3ZZFE,4ZZFE..AE111,ZZE11#..LHD..SED..(GCC,GEN,TUR,VEN) |
17591-16020 |
from US $0.82 |
||
|
17593C
|
17593C
17593-64150 Protector, Exhaust Pipe, Lower No.1EXHAUST PIPE, LOWER NO.1 [10.1999 - 10.2000] 2CE..CE110 |
17593-64150 |
US $40.04 |
||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $2.72 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $1.01 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9017908193
|
9017908193
90179-08193 NUT |
90179-08193 |
US $2.72 |
||
|
9046112418
|
9046112418
90461-12418 Clamp |
90461-12418 |
US $11.20 |
||
|
9050135024
|
9050135024
90501-35024 SPRING COMPRESSION |
90501-35024 |
from US $4.52 |
||
|
9090105020
|
9090105020
90901-05020 Bolt Or Ring, Exhaust Pipe Front (For Front) |
90901-05020 |
from US $3.68 |
||
|
9151160614
|
9151160614
91511-60614
LEXBOLT
|
91511-60614 |
— | ||
| replacement | |||||
|
9151160614
|
9151160614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.74 |
||
|
9163160618
|
9163160618
91631-60618 BOLT WWASHER |
91631-60618 |
US $1.46 |
||
| replacement | |||||
|
9163160618
|
9163160618
91631-B0618 BOLT WWASHER |
91631-B0618 |
from US $0.86 |
||
|
9418561000
|
9418561000
94185-61000 NUTLOCK |
94185-61000 |
from US $1.01 |
||
