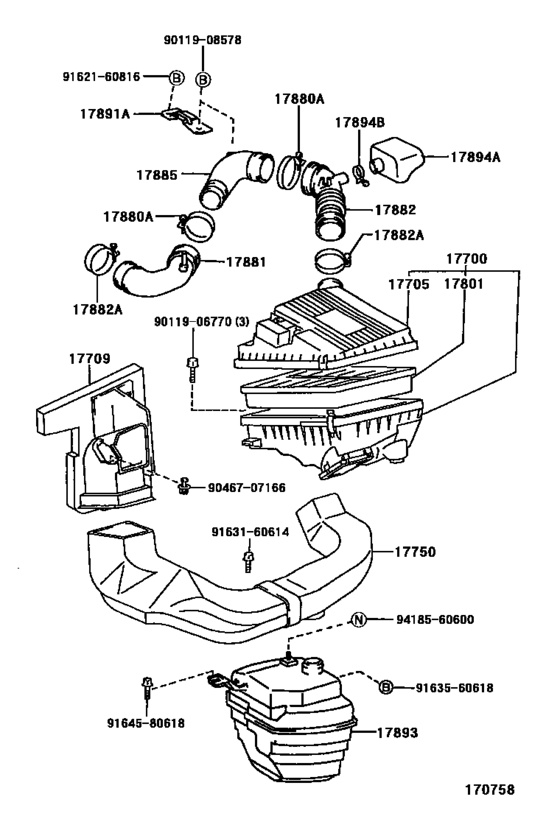

Air Cleaner ([04.1997 - 10.1999] (9704-9910)2CE) Diagram Toyota COROLLA
- Year
- 1997 - 1999
- Sales region
- Europe
- Frame
- CE110
- grade
- TERRA
- body
- SED
- ENGINE
- 2CE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 04.1997
- To
- 10.1999
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-64400 Cleaner Assy, AirAIR [04.1997 - 09.1997] 2CE..CE110 |
17700-64400 |
US $336.34 |
||
| replacement | |||||
|
17700
|
17700
17700-64401 Cleaner Assy, AirAIR [04.1997 - 09.1997] 2CE..CE110 |
17700-64401 |
US $336.34 |
||
|
17700
|
17700
17700-64401 Cleaner Assy, AirAIR [09.1997 - 10.1999] 2CE..CE110 |
17700-64401 |
US $336.34 |
||
|
17705
|
17705
17705-64280
Cap Sub-Assy, Air Cleaner
[04.1997 - 09.1997] 2CE..CE110 |
17705-64280 |
— | ||
|
17705
|
17705
17705-64281
Cap Sub-Assy, Air Cleaner
[09.1997 - 10.1999] 2CE..CE110 |
17705-64281 |
— | ||
|
17709
|
17709
17709-64020 Inlet Sub-Assy, Air Cleaner[04.1997 - 10.1999] 2CE..CE110 |
17709-64020 |
US $90.27 |
||
|
17750
|
17750
17750-64020 Cover Assy, Air Cleaner Inlet, Seal[04.1997 - 10.1999] 2CE..CE110 |
17750-64020 |
US $74.26 |
||
|
17801
|
17801
17801-64070 Element Sub-Assy, Air Cleaner Filter[04.1997 - 10.1999] 2CE..CE110 |
17801-64070 |
from US $26.73 |
||
|
17880A
|
17880A
96111-10630 Clamp, Hose[04.1997 - 10.1999] 2CE..CE110 |
96111-10630 |
US $3.68 |
||
|
17881
|
17881
17881-64360
Hose, Air Cleaner, No.1
[04.1997 - 10.1999] 2CE..CE110 |
17881-64360 |
— | ||
|
17882
|
17882
17882-64110
Hose, Air Cleaner, No.2
[04.1997 - 10.1999] 2CE..CE110 |
17882-64110 |
— | ||
|
17882A
|
17882A
96111-10650 Clamp(For Air Cleaner Inlet, No.1)[04.1997 - 10.1999] 2CE..CE110 |
96111-10650 |
from US $2.89 |
||
|
17885
|
17885
17885-64010
Pipe, Air Cleaner
[04.1997 - 10.1999] 2CE..CE110 |
17885-64010 |
— | ||
|
17891A
|
17891A
17891-64020 Clamp, Air Cleaner Hose[04.1997 - 10.1999] 2CE..CE110 |
17891-64020 |
US $6.99 |
||
|
17893
|
17893
17893-15050 Resonator, Intake Air[04.1997 - 10.1999] 2CE..CE110; 4EFE..EE111; 4AFE,7AFE..AE11# |
17893-15050 |
US $168.90 |
||
|
17894A
|
17894A
17894-64070 Resonator, Intake Air, No.2[04.1997 - 10.1999] 2CE..CE110 |
17894-64070 |
US $46.45 |
||
|
17894B
|
17894B
96111-10330 Clamp Or Clip, Hose(For Water By-Pass Hose)[04.1997 - 10.1999] 2CE..CE110 |
96111-10330 |
US $2.08 |
||
|
9011906770
|
9011906770
90119-06770 New Genuine Part |
90119-06770 |
US $1.75 |
||
| replacement | |||||
|
9011906770
|
9011906770
90119-06859 BOLT WWASHER |
90119-06859 |
from US $1.09 |
||
|
9011908578
|
9011908578
90119-08578 New Genuine Part |
90119-08578 |
US $1.89 |
||
| replacement | |||||
|
9011908578
|
9011908578
90119-08B80 New Genuine Part |
90119-08B80 |
US $1.75 |
||
|
9046707166
|
9046707166
90467-07166 Clip(For Front Fender Apron Seal) |
90467-07166 |
from US $0.90 |
||
|
9162160816
|
9162160816
91621-60816
New Genuine Part
|
91621-60816 |
— | ||
| replacement | |||||
|
9162160816
|
9162160816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.88 |
||
|
9163160614
|
9163160614
91631-60614 BOLT |
91631-60614 |
US $1.60 |
||
| replacement | |||||
|
9163160614
|
9163160614
91661-60616 BOLT |
91661-60616 |
from US $0.74 |
||
|
9163560618
|
9163560618
91635-60618 New Genuine Part |
91635-60618 |
US $2.62 |
||
| replacement | |||||
|
9163560618
|
9163560618
91631-B0614 BOLT WWASHER |
91631-B0614 |
from US $0.92 |
||
|
9164580618
|
9164580618
91645-80618
Direct
|
91645-80618 |
— | ||
| replacement | |||||
|
9164580618
|
9164580618
91641-C0614 Bolt |
91641-C0614 |
from US $0.74 |
||
|
9418560600
|
9418560600
94185-60600 Nut, Wire Adjusting, No.1 |
94185-60600 |
from US $0.76 |
||
