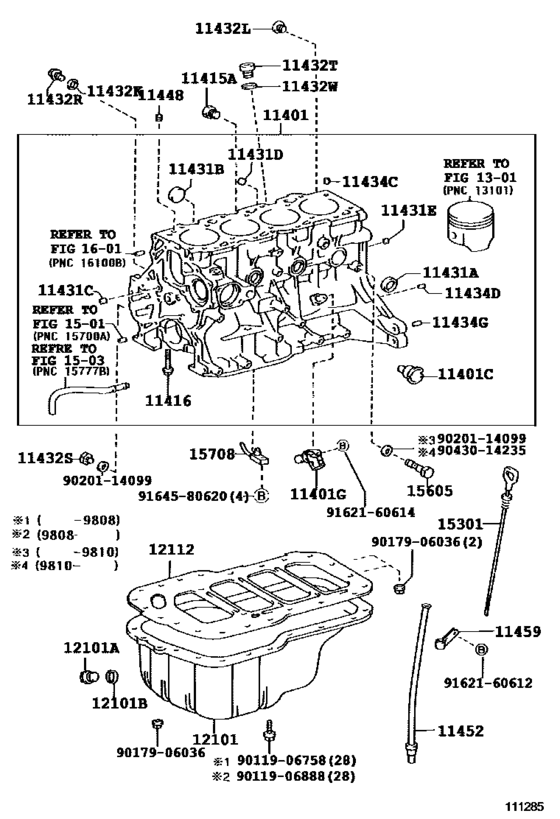

Cylinder Block ([04.1997 - 10.1999] (9704-9910)2CE) Diagram Toyota COROLLA
- Year
- 1997 - 1999
- Sales region
- Europe
- Frame
- CE110
- grade
- TERRA
- body
- SED
- ENGINE
- 2CE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 04.1997
- To
- 10.1999
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-69725 Block Sub-Assy, CylinderCYLINDER [04.1997 - 12.1998] 2CE..CE110 |
11401-69725 |
US $3,800.16 |
||
| replacements | |||||
|
11401
|
11401
11701-27013-01
Bearing, Crankshaft
[04.1997 - 12.1998] 2CE..CE110 |
11701-27013-01 |
— | ||
|
11401
|
11401
11401-69727 Block Sub-Assy, CylinderCYLINDER [04.1997 - 12.1998] 2CE..CE110 |
11401-69727 |
US $3,407.04 |
||
|
11401
|
11401
11381-64020 Retainer, Engine Rear Oil Seal[04.1997 - 12.1998] 2CE..CE110 |
11381-64020 |
US $63.77 |
||
|
11401
|
11401
11701-27013-02 Bearing, CrankshaftCRANKSHAFT [04.1997 - 12.1998] 2CE..CE110 |
11701-27013-02 |
from US $10.92 |
||
|
11401
|
11401
11701-27013-03 Bearing, CrankshaftCRANKSHAFT [04.1997 - 12.1998] 2CE..CE110 |
11701-27013-03 |
US $31.45 |
||
|
11401
|
11401
11701-27013-04 Bearing, CrankshaftCRANKSHAFT [04.1997 - 12.1998] 2CE..CE110 |
11701-27013-04 |
US $31.45 |
||
|
11401
|
11401
11701-27013-05 Bearing, CrankshaftCRANKSHAFT [04.1997 - 12.1998] 2CE..CE110 |
11701-27013-05 |
US $31.45 |
||
|
11401
|
11401
15703-27010 Valve Sub-Assy, Oil Check[04.1997 - 12.1998] 2CE..CE110 |
15703-27010 |
US $17.47 |
||
|
11401
|
11401
11401-69726 Block Sub-Assy, CylinderCYLINDER [12.1998 - 08.1999] 2CE..CE110 |
11401-69726 |
US $3,407.04 |
||
| replacement | |||||
|
11401
|
11401
11401-69727 Block Sub-Assy, CylinderCYLINDER [12.1998 - 08.1999] 2CE..CE110 |
11401-69727 |
US $3,407.04 |
||
|
11401
|
11401
11401-69727 Block Sub-Assy, CylinderCYLINDER [08.1999 - 10.1999] 2CE..CE110 |
11401-69727 |
US $3,407.04 |
||
|
11401C
|
11401C
16353-64011 Flange(For Water By-Pass)[04.1997 - 10.1999] 2CE..CE110 |
16353-64011 |
US $6.12 |
||
|
11401G
|
11401G
90919-05031 Sensor, Crank Position[04.1997 - 10.1999] 2CE..CE110 |
90919-05031 |
from US $82.99 |
||
|
11415A
|
11415A
90345-52003 Cock Sub-Assy, Water Drain(For Cylinder Block)[04.1997 - 10.1999] 2CE..CE110; 4AFE,7AFE..AE11# |
90345-52003 |
from US $2.71 |
||
|
11416
|
11416
90910-02061 Bolt(For Cylinder Head Set)[04.1997 - 12.1998] 2CE..CE110 |
90910-02061 |
US $3.68 |
||
|
11416
|
11416
90910-02135 Bolt(For Crankshaft Bearing Cap Set)[12.1998 - 10.1999] 2CE..CE110 |
90910-02135 |
US $3.64 |
||
|
11431A
|
11431A
96411-63500 Plug, Tight[04.1997 - 10.1999] 2CE..CE110 |
96411-63500 |
from US $3.20 |
||
|
11431B
|
11431B
96411-63000 Plug, Tight[04.1997 - 10.1999] 2CE..CE110 |
96411-63000 |
from US $3.36 |
||
|
11431C
|
11431C
96411-41800 Plug, Tight, No.1[04.1997 - 10.1999] 2CE..CE110 |
96411-41800 |
from US $1.72 |
||
|
11431D
|
11431D
96411-41800 Plug, Tight, No.1[04.1997 - 10.1999] 2CE..CE110 |
96411-41800 |
from US $1.72 |
||
|
11431E
|
11431E
96411-41800 Plug, Tight, No.1[04.1997 - 10.1999] 2CE..CE110 |
96411-41800 |
from US $1.72 |
||
|
11432K
|
11432K
90430-10027 Gasket, W/head Straight Screw Plug[04.1997 - 10.1999] 2CE..CE110 |
90430-10027 |
US $2.88 |
||
|
11432L
|
11432L
90339-23002 Plug, W/head Straight Screw, No.4(For Cylinder Block)[04.1997 - 10.1999] 2CE..CE110 |
90339-23002 |
US $10.48 |
||
|
11432R
|
11432R
90341-10002 Plug, W/head Straight Screw, No.5[04.1997 - 10.1999] 2CE..CE110 |
90341-10002 |
US $1.89 |
||
|
11432S
|
11432S
90341-14032 Plug, W/head Taper Screw, No.1[04.1997 - 10.1999] 2CE..CE110 |
90341-14032 |
US $2.53 |
||
|
11432T
|
11432T
90341-22001
Plug, W/head Straight Screw, No.3(For Cylinder Block)
[04.1997 - 10.1999] 2CE..CE110 |
90341-22001 |
— | ||
|
11432W
|
11432W
90430-22003 Gasket, Straight Screw Plug No.3(For Cylinder Block)[04.1997 - 10.1999] 2CE..CE110 |
90430-22003 |
from US $1.15 |
||
|
11434C
|
11434C
90253-14002 Pin, Straight (For Cylinder Head Set)[04.1997 - 08.1997] 2CE..CE110 L=16,OD=14 |
90253-14002 |
US $3.06 |
||
|
11434C
|
11434C
90253-14004 Pin, Straight (For Cylinder Head Set)[08.1997 - 10.1999] 2CE..CE110 L=20,OD=14 |
90253-14004 |
from US $5.05 |
||
|
11434D
|
11434D
90250-06068 Pin, Straight[04.1997 - 10.1999] 2CE..CE110 L=11,OD=6; 2E,4EFE..EE11# L=11,OD=6 |
90250-06068 |
US $3.67 |
||
|
11434G
|
11434G
90250-10113 Pin, Straight(For Timing Gear Cover Set)[04.1997 - 10.1999] 2CE..CE110 |
90250-10113 |
from US $1.03 |
||
|
11448
|
11448
11448-64020 Orifice, Cylinder Block Oil[04.1997 - 10.1999] 2CE..CE110 |
11448-64020 |
US $1.89 |
||
|
11452
|
11452
11452-64030 Guide, Oil Level Gage[04.1997 - 10.1999] 2CE..CE110 |
11452-64030 |
US $20.82 |
||
|
11459
|
11459
90929-01049 Support, Oil Level Gage Guide[04.1997 - 10.1999] 2CE..CE110 |
90929-01049 |
US $2.48 |
||
|
12101
|
12101
12101-64140 Pan Sub-Assy, Oil[04.1997 - 01.1998] 2CE..CE110 |
12101-64140 |
US $262.08 |
||
| replacement | |||||
|
12101
|
12101
12101-64141 Pan Sub-Assy, Oil[04.1997 - 01.1998] 2CE..CE110 |
12101-64141 |
US $179.09 |
||
|
12101
|
12101
12101-64141 Pan Sub-Assy, Oil[01.1998 - 10.1999] 2CE..CE110 |
12101-64141 |
US $179.09 |
||
|
12101A
|
12101A
90341-12026
Plug, Drain
[04.1997 - 10.1999] 2CE..CE110; 2E,4EFE..EE11#; 4AFE,7AFE..AE11# |
90341-12026 |
— | ||
| replacement | |||||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[04.1997 - 10.1999] 2CE..CE110; 2E,4EFE..EE11#; 4AFE,7AFE..AE11# |
90341-12012 |
from US $2.56 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[04.1997 - 10.1999] 2CE..CE110; 2E,4EFE..EE11#; 4AFE,7AFE..AE11# |
90430-12031 |
from US $0.88 |
||
|
12112
|
12112
12112-64040 Pan, Oil No.2[04.1997 - 10.1999] 2CE..CE110 |
12112-64040 |
US $96.10 |
||
|
15301
|
15301
15301-64090
Gage Sub-Assy, Oil Level
[04.1997 - 10.1999] 2CE..CE110 |
15301-64090 |
— | ||
|
15605
|
15605
15605-64020
Valve Sub-Assy, Oil Check
[04.1997 - 10.1998] 2CE..CE110 |
15605-64020 |
— | ||
|
15605
|
15605
15703-27010 Valve Sub-Assy, Oil Check[10.1998 - 10.1999] 2CE..CE110 |
15703-27010 |
US $17.47 |
||
|
15708
|
15708
15790-64021 Nozzle Sub-Assy, Oil, No.1[04.1997 - 10.1999] 2CE..CE110 |
15790-64021 |
US $19.07 |
||
| replacements | |||||
|
15708
|
15708
15790-64030 Nozzle Sub-Assy, Oil, No.1[04.1997 - 10.1999] 2CE..CE110 |
15790-64030 |
US $13.10 |
||
|
15708
|
15708
90110-06034
New Genuine Part
[04.1997 - 10.1999] 2CE..CE110 |
90110-06034 |
— | ||
|
9011906758
|
9011906758
90119-06758 New Genuine Part |
90119-06758 |
US $1.60 |
||
|
9011906888
|
9011906888
90119-06888 New Genuine Part |
90119-06888 |
US $1.76 |
||
|
9017906036
|
9017906036
90179-06036
Nut, Cap(For Cylinder Head Cover)
|
90179-06036 |
— | ||
| replacement | |||||
|
9017906036
|
9017906036
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.72 |
||
|
9020114099
|
9020114099
90201-14099 Gasket(For Vacuum Pump Union) |
90201-14099 |
from US $3.24 |
||
|
9043014235
|
9043014235
90430-14235 Gasket, W/head Taper Screw Plug |
90430-14235 |
US $3.68 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
9162160614
|
9162160614
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9164580620
|
9164580620
91645-80620 New Genuine Part |
91645-80620 |
US $1.46 |
||
| replacement | |||||
|
9164580620
|
9164580620
91641-80616 BOLT W-WASHER |
91641-80616 |
from US $1.01 |
||
