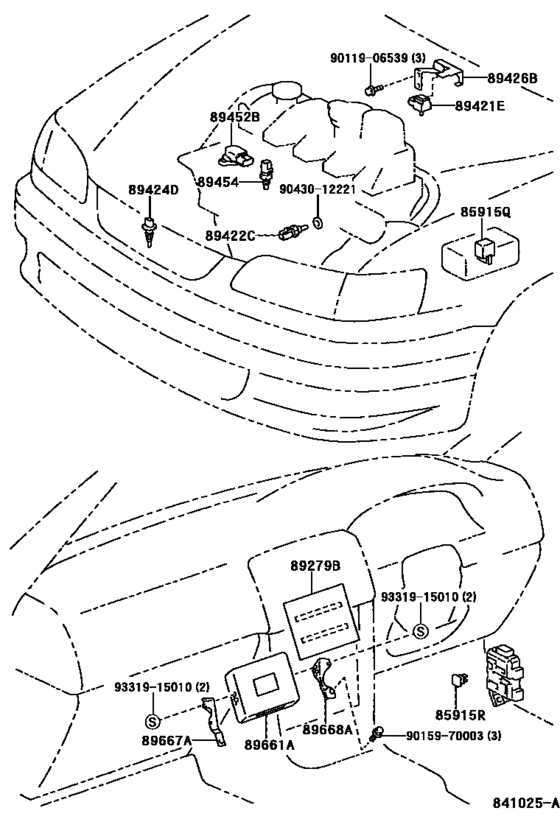

Electronic Controled Diesel (Ecd) ([04.1997 - ] (9704- )CE110) Diagram Toyota COROLLA
- Year
- 1997 - 1999
- Sales region
- Europe
- Frame
- CE110
- grade
- TERRA
- body
- SED
- ENGINE
- 2CE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 04.1997
- To
- 10.1999
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85915Q
|
85915Q
90987-02012 Relay, Ignition, No.1[04.1997 - 10.1999] CE110 |
90987-02012 |
from US $27.85 |
||
|
85915R
|
85915R
90987-02012 Relay, Ignition, No.1[04.1997 - 10.1999] CE110 |
90987-02012 |
from US $27.85 |
||
|
89279B
|
89279B
89279-13020 Cover, Engine Control Computer[04.1997 - 10.1999] CE110 |
89279-13020 |
US $24.75 |
||
|
89421E
|
89421E
89420-12110 Sensor, Vacuum[04.1997 - 10.1999] CE110 |
89420-12110 |
US $126.67 |
||
|
89422C
|
89422C
89422-35010 Sensor, Water Temperature (For E.f.i.)[04.1997 - 10.1999] CE110 |
89422-35010 |
from US $40.58 |
||
|
89424D
|
89424D
89424-12010 Sensor, Inlet Air Temperature (For E.f.i.)[04.1997 - 10.1999] CE110 |
89424-12010 |
from US $57 |
||
|
89426B
|
89426B
89426-12150 Bracket, Vacuum Sensor[04.1997 - 10.1999] CE110 |
89426-12150 |
US $19.80 |
||
|
89452B
|
89452B
89452-28090
Sensor, Throttle Position
[04.1997 - 10.1999] CE110 |
89452-28090 |
— | ||
| replacement | |||||
|
89452B
|
89452B
89452-22090 Sensor, Throttle Position[04.1997 - 10.1999] CE110 |
89452-22090 |
from US $138.55 |
||
|
89454
|
89454
89454-60010 Sensor, Fuel Temperature[04.1997 - 10.1999] CE110 |
89454-60010 |
from US $36.78 |
||
|
89661A
|
89661A
89661-1A770
Computer, Engine Control
[04.1997 - 10.1999] CE110 |
89661-1A770 |
— | ||
|
89667A
|
89667A
89667-12130 Bracket, Engine Control Computer[04.1997 - 10.1999] CE110 |
89667-12130 |
US $9.61 |
||
|
89668A
|
89668A
89668-12060 Bracket, Engine Control Computer, No.2[04.1997 - 10.1999] CE110 |
89668-12060 |
US $6.84 |
||
|
9011906539
|
9011906539
90119-06539 New Genuine Part |
90119-06539 |
US $1.46 |
||
|
9015970003
|
9015970003
90159-70003 Bolt, W/washer |
90159-70003 |
from US $0.52 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.13 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
