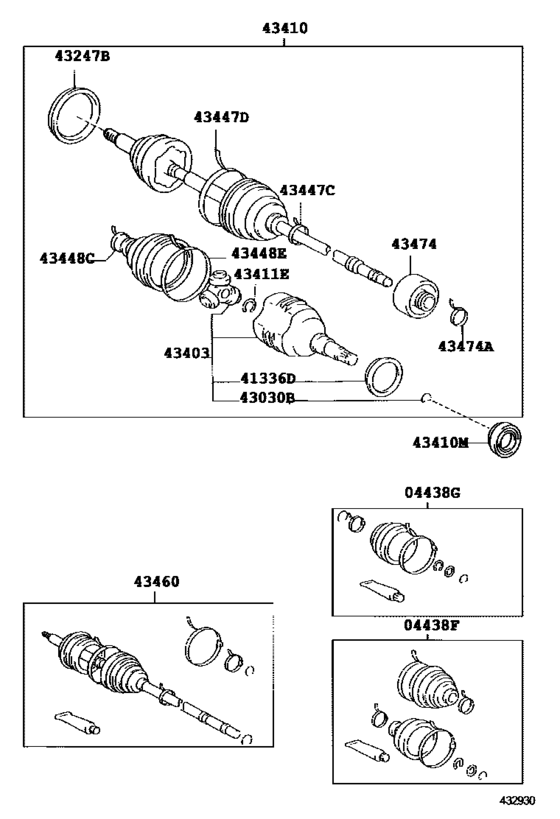

Front Drive Shaft ([04.1997 - ] RH (9704- )AE111,CE110,EE11#,ZZE11#) Diagram Toyota COROLLA
- Year
- 1997 - 1999
- Sales region
- Europe
- Frame
- CE110
- grade
- TERRA
- body
- SED
- ENGINE
- 2CE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 04.1997
- To
- 10.1999
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438F
|
04438F
04438-12290
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[04.1997 - 04.1998] CE110 |
04438-12290 |
— | ||
| replacement | |||||
|
04438F
|
04438F
04438-20134
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[04.1997 - 04.1998] CE110 |
04438-20134 |
— | ||
|
04438F
|
04438F
04438-20131 Boot Kit, Front Drive Shaft, In & Outboard, Rh[04.1998 - 01.1999] CE110 |
04438-20131 |
US $145.60 |
||
| replacement | |||||
|
04438F
|
04438F
04438-20134
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[04.1998 - 01.1999] CE110 |
04438-20134 |
— | ||
|
04438F
|
04438F
04438-20132 Boot Kit, Front Drive Shaft, In & Outboard, Rh[01.1999 - 10.1999] CE110 |
04438-20132 |
US $145.60 |
||
| replacement | |||||
|
04438F
|
04438F
04438-20133 Boot Kit, Front Drive Shaft, In & Outboard, Rh[01.1999 - 10.1999] CE110 |
04438-20133 |
US $145.60 |
||
|
04438G
|
04438G
04438-12420 Boot Kit, Front Drive Shaft Inboard Joint, Rh[04.1997 - 04.1998] CE110 |
04438-12420 |
US $90.27 |
||
| replacement | |||||
|
04438G
|
04438G
04438-42201 Boot Kit, Front Drive Shaft Inboard Joint, Rh[04.1997 - 04.1998] CE110 |
04438-42201 |
from US $66.73 |
||
|
04438G
|
04438G
04438-20121 Boot Kit, Front Drive Shaft Inboard Joint, Rh[04.1998 - 10.1999] CE110 |
04438-20121 |
US $90.27 |
||
| replacement | |||||
|
04438G
|
04438G
04438-42201 Boot Kit, Front Drive Shaft Inboard Joint, Rh[04.1998 - 10.1999] CE110 |
04438-42201 |
from US $66.73 |
||
|
41336D
|
41336D
41336-32010 Cover, Dust(For Differential Side Gear Shaft)[04.1997 - 10.1999] CE110 |
41336-32010 |
US $2.80 |
||
|
43030B
|
43030B
90521-27005 Ring, Hole Snap (For Rear Differential Side Gear Shaft)[04.1997 - 10.1999] CE110 |
90521-27005 |
from US $1.76 |
||
|
43247B
|
43247B
43247-12010 Deflector, Rear Wheel Bearing Dust, No.1[04.1997 - 10.1999] AE11#,CE110,EE111 W(ABS) |
43247-12010 |
from US $9.50 |
||
|
43247B
|
43247B
43247-33010 Deflector, Front Wheel Bearing Dust, No.2[04.1997 - 10.1999] AE11#,CE110,EE11# |
43247-33010 |
US $36.48 |
||
|
43403
|
43403
43030-20020
Joint Assy, Front Drive Inboard, Rh
[04.1997 - 10.1999] CE110 |
43030-20020 |
— | ||
|
43410
|
43410
43410-12350 Shaft Assy, Front Drive, Rh[04.1997 - 09.1997] CE110 W(ABS) |
43410-12350 |
US $1,116.75 |
||
| replacements | |||||
|
43410
|
43410
43410-12353 Shaft Assy, Front Drive, Rh[04.1997 - 09.1997] CE110 W(ABS) |
43410-12353 |
US $1,113.84 |
||
|
43410
|
43410
90178-22001 Nut (For Axle Shaft)[04.1997 - 09.1997] CE110 W(ABS) |
90178-22001 |
from US $4.96 |
||
|
43410
|
43410
43410-12351 Shaft Assy, Front Drive, Rh[09.1997 - 01.1999] CE110 W(ABS) |
43410-12351 |
US $1,113.84 |
||
| replacement | |||||
|
43410
|
43410
43410-12353 Shaft Assy, Front Drive, Rh[09.1997 - 01.1999] CE110 W(ABS) |
43410-12353 |
US $1,113.84 |
||
|
43410
|
43410
43410-12352 Shaft Assy, Front Drive, Rh[01.1999 - 10.1999] CE110 W(ABS) |
43410-12352 |
US $1,113.84 |
||
| replacement | |||||
|
43410
|
43410
43410-12353 Shaft Assy, Front Drive, Rh[01.1999 - 10.1999] CE110 W(ABS) |
43410-12353 |
US $1,113.84 |
||
|
43410
|
43410
43410-20341 Shaft Assy, Front Drive, Rh[04.1997 - 09.1997] CE110 |
43410-20341 |
US $1,116.75 |
||
| replacements | |||||
|
43410
|
43410
43410-20344 Shaft Assy, Front Drive, Rh[04.1997 - 09.1997] CE110 |
43410-20344 |
US $1,113.84 |
||
|
43410
|
43410
90178-22001 Nut (For Axle Shaft)[04.1997 - 09.1997] CE110 |
90178-22001 |
from US $4.96 |
||
|
43410
|
43410
43410-20342 Shaft Assy, Front Drive, Rh[09.1997 - 01.1999] CE110 |
43410-20342 |
US $1,113.84 |
||
| replacement | |||||
|
43410
|
43410
43410-20344 Shaft Assy, Front Drive, Rh[09.1997 - 01.1999] CE110 |
43410-20344 |
US $1,113.84 |
||
|
43410
|
43410
43410-20343 Shaft Assy, Front Drive, Rh[01.1999 - 10.1999] CE110 |
43410-20343 |
US $1,113.84 |
||
| replacement | |||||
|
43410
|
43410
43410-20344 Shaft Assy, Front Drive, Rh[01.1999 - 10.1999] CE110 |
43410-20344 |
US $1,113.84 |
||
|
43410M
|
43410M
90311-35033 Seal, Oil, No.2(For Transaxle Case)[04.1997 - 10.1999] CE110 |
90311-35033 |
from US $6.40 |
||
|
43411E
|
43411E
90520-22005 Ring, Snap (For Rear Drive Shaft)[04.1997 - 10.1999] AE11#,CE110,EE11# |
90520-22005 |
from US $1.24 |
||
|
43447C
|
43447C
42345-16030 Clamp, Rear Drive Shaft Boot[04.1997 - 01.1999] AE115,CE110 ID=35.45 |
42345-16030 |
US $8.56 |
||
|
43447C
|
43447C
42345-20100 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)[01.1999 - 08.1999] AE115,CE110 ID=31.1 |
42345-20100 |
US $7.13 |
||
|
43447D
|
43447D
42345-16040
Clamp (For Rear Drive Shaft Outboard Joint Boot)
[04.1997 - 01.1999] AE115,CE110 ID=91.9 |
42345-16040 |
— | ||
|
43447D
|
43447D
42345-20120 Clamp, No.2 (For Rear Drive Shaft Outboard Joint Boot Rh)[01.1999 - 10.1999] CE110 ID=90.6 |
42345-20120 |
US $8.30 |
||
|
43448C
|
43448C
90949-01078 Clamp (For Rear Drive Shaft Outboard Joint Boot)[04.1997 - 10.1999] EE110; AE11#,CE110,EE11# |
90949-01078 |
US $0.61 |
||
|
43448E
|
43448E
90949-01076
Clamp (For Rear Drive Shaft Outboard Joint Boot)
[01.1999 - 10.1999] AE111,CE110,EE11# |
90949-01076 |
— | ||
| replacement | |||||
|
43448E
|
43448E
42345-12160 Clamp, No.2 (For Drive Shaft Inboard Joint Boot)Big [01.1999 - 10.1999] AE111,CE110,EE11# |
42345-12160 |
from US $4.80 |
||
|
43460
|
43460
43460-19655 Shaft Assy, Front Drive Outboard Joint, Rh[04.1997 - 09.1997] CE110 W(ABS) |
43460-19655 |
US $652.29 |
||
| replacements | |||||
|
43460
|
43460
43460-19659 Shaft Assy, Front Drive Outboard Joint, Rh[04.1997 - 09.1997] CE110 W(ABS) |
43460-19659 |
US $650.83 |
||
|
43460
|
43460
90178-22001 Nut (For Axle Shaft)[04.1997 - 09.1997] CE110 W(ABS) |
90178-22001 |
from US $4.96 |
||
|
43460
|
43460
43460-19656 Shaft Assy, Front Drive Outboard Joint, Rh[09.1997 - 04.1998] CE110 W(ABS) |
43460-19656 |
US $650.83 |
||
| replacement | |||||
|
43460
|
43460
43460-19659 Shaft Assy, Front Drive Outboard Joint, Rh[09.1997 - 04.1998] CE110 W(ABS) |
43460-19659 |
US $650.83 |
||
|
43460
|
43460
43460-19657 Shaft Assy, Front Drive Outboard Joint, Rh[04.1998 - 01.1999] CE110 W(ABS) |
43460-19657 |
US $650.83 |
||
| replacement | |||||
|
43460
|
43460
43460-19659 Shaft Assy, Front Drive Outboard Joint, Rh[04.1998 - 01.1999] CE110 W(ABS) |
43460-19659 |
US $650.83 |
||
|
43460
|
43460
43460-19658 Shaft Assy, Front Drive Outboard Joint, Rh[01.1999 - 10.1999] CE110 W(ABS) |
43460-19658 |
US $650.83 |
||
| replacement | |||||
|
43460
|
43460
43460-19659 Shaft Assy, Front Drive Outboard Joint, Rh[01.1999 - 10.1999] CE110 W(ABS) |
43460-19659 |
US $650.83 |
||
|
43460
|
43460
43460-29147 Shaft Assy, Front Drive Outboard Joint, Rh[04.1997 - 09.1997] CE110 |
43460-29147 |
US $661.02 |
||
| replacements | |||||
|
43460
|
43460
43460-29151 Shaft Assy, Front Drive Outboard Joint, Rh[04.1997 - 09.1997] CE110 |
43460-29151 |
from US $492.92 |
||
|
43460
|
43460
90178-22001 Nut (For Axle Shaft)[04.1997 - 09.1997] CE110 |
90178-22001 |
from US $4.96 |
||
|
43460
|
43460
43460-29148 Shaft Assy, Front Drive Outboard Joint, Rh[09.1997 - 04.1998] CE110 |
43460-29148 |
US $690.14 |
||
| replacement | |||||
|
43460
|
43460
43460-29151 Shaft Assy, Front Drive Outboard Joint, Rh[09.1997 - 04.1998] CE110 |
43460-29151 |
from US $492.92 |
||
|
43460
|
43460
43460-29149 Shaft Assy, Front Drive Outboard Joint, Rh[04.1998 - 01.1999] CE110 |
43460-29149 |
US $690.14 |
||
| replacement | |||||
|
43460
|
43460
43460-29151 Shaft Assy, Front Drive Outboard Joint, Rh[04.1998 - 01.1999] CE110 |
43460-29151 |
from US $492.92 |
||
|
43460
|
43460
43460-29150 Shaft Assy, Front Drive Outboard Joint, Rh[01.1999 - 10.1999] CE110 |
43460-29150 |
US $690.14 |
||
| replacement | |||||
|
43460
|
43460
43460-29151 Shaft Assy, Front Drive Outboard Joint, Rh[01.1999 - 10.1999] CE110 |
43460-29151 |
from US $492.92 |
||
|
43474
|
43474
43474-12020
Damper, Drive Shaft
[04.1997 - 10.1999] CE110 |
43474-12020 |
— | ||
|
43474A
|
43474A
42345-14010 Clamp, Rear Drive Shaft Boot[04.1997 - 10.1999] AE111,CE110,EE11# |
42345-14010 |
US $11.20 |
||
