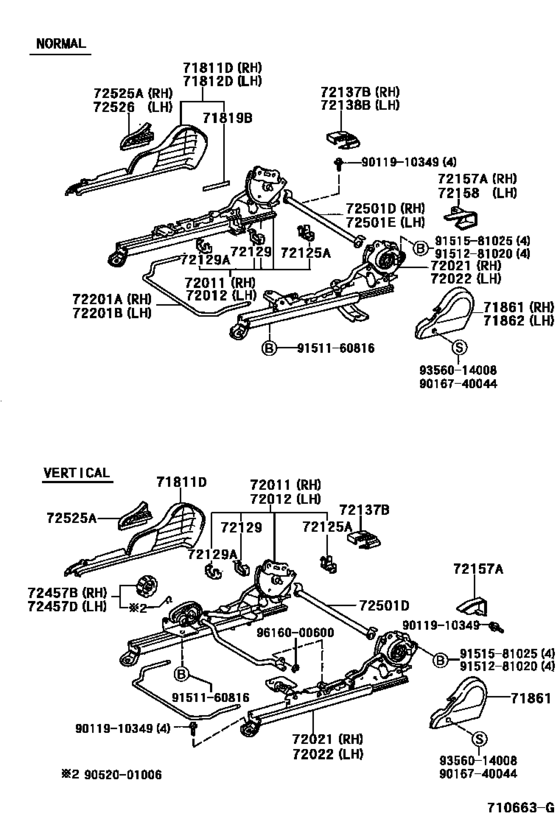

Front Seat & Seat Track ([04.1997 - ] (9704- )) Diagram Toyota COROLLA
- Year
- 1997 - 1999
- Sales region
- Europe
- Frame
- CE110
- grade
- TERRA
- body
- SED
- ENGINE
- 2CE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 04.1997
- To
- 10.1999
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71811D
|
71811D
71811-12290-A0 Shield, Front Seat Cushion, RhFRONT SEAT CUSHION, RH [04.1997 - 10.1999] AE111,CE110,EE111..SED..(LUNA,TERRA) W(*80,SIDE),IVORY,TRIM0# |
71811-12290-A0 |
US $44.84 |
||
| replacement | |||||
|
71811D
|
71811D
71811-16240-B2 Shield, Front Seat Cushion, RhFRONT SEAT CUSHION, RH [04.1997 - 10.1999] AE111,CE110,EE111..SED..(LUNA,TERRA) W(*80,SIDE),IVORY,TRIM0# |
71811-16240-B2 |
US $44.84 |
||
|
71811D
|
71811D
71811-12290-B0 Shield, Front Seat Cushion, RhFRONT SEAT CUSHION, RH [01.1999 - 10.1999] AE111,CE110,EE111..SED..(LUNA,TERRA) W(*80,SIDE),SHADOW GRAY,TRIM12 |
71811-12290-B0 |
US $44.84 |
||
|
71811D
|
71811D
71811-12290-B1 Shield, Front Seat Cushion, RhFRONT SEAT CUSHION, RH [04.1997 - 01.1999] AE111,CE110,EE111..SED..(LUNA,TERRA) W(*80,SIDE),MD.CHARCOAL,TRIM1# |
71811-12290-B1 |
US $44.84 |
||
| replacement | |||||
|
71811D
|
71811D
71811-16240-B2 Shield, Front Seat Cushion, RhFRONT SEAT CUSHION, RH [04.1997 - 01.1999] AE111,CE110,EE111..SED..(LUNA,TERRA) W(*80,SIDE),MD.CHARCOAL,TRIM1# |
71811-16240-B2 |
US $44.84 |
||
|
71811D
|
71811D
71811-16230-A0 Shield, Front Seat Cushion, RhFRONT SEAT CUSHION, RH [04.1997 - 10.1999] EE110 IVORY,TRIM0#; AE111,CE110,EE11#..SED..(LUNA,TERRA) IVORY,TRIM0# |
71811-16230-A0 |
US $44.70 |
||
| replacement | |||||
|
71811D
|
71811D
71811-16240-B2 Shield, Front Seat Cushion, RhFRONT SEAT CUSHION, RH [04.1997 - 10.1999] EE110 IVORY,TRIM0#; AE111,CE110,EE11#..SED..(LUNA,TERRA) IVORY,TRIM0# |
71811-16240-B2 |
US $44.84 |
||
|
71811D
|
71811D
71811-16230-B0 Shield, Front Seat Cushion, Rh[01.1999 - 10.1999] EE110 SHADOW GRAY,TRIM12; AE111,CE110,EE11#..SED..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
71811-16230-B0 |
US $44.84 |
||
| replacement | |||||
|
71811D
|
71811D
71811-16240-B2 Shield, Front Seat Cushion, RhFRONT SEAT CUSHION, RH [01.1999 - 10.1999] EE110 SHADOW GRAY,TRIM12; AE111,CE110,EE11#..SED..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
71811-16240-B2 |
US $44.84 |
||
|
71811D
|
71811D
71811-16230-B8 Shield, Front Seat Cushion, Rh[04.1997 - 01.1999] AE111,CE110,EE11#..SED..(LUNA,TERRA) MD.CHARCOAL,TRIM1# |
71811-16230-B8 |
US $44.99 |
||
| replacement | |||||
|
71811D
|
71811D
71811-16240-B2 Shield, Front Seat Cushion, RhFRONT SEAT CUSHION, RH [04.1997 - 01.1999] AE111,CE110,EE11#..SED..(LUNA,TERRA) MD.CHARCOAL,TRIM1# |
71811-16240-B2 |
US $44.84 |
||
|
71812D
|
71812D
71812-12300-A0 Shield, Front Seat Cushion, LhFRONT SEAT CUSHION, LH [04.1997 - 10.1999] AE111,CE110,EE111..SED..(LUNA,TERRA) W(*80,SIDE),IVORY,TRIM0# |
71812-12300-A0 |
US $44.84 |
||
| replacement | |||||
|
71812D
|
71812D
71812-12320-B0 Shield, Front Seat Cushion, LhFRONT SEAT CUSHION, LH [04.1997 - 10.1999] AE111,CE110,EE111..SED..(LUNA,TERRA) W(*80,SIDE),IVORY,TRIM0# |
71812-12320-B0 |
US $46.59 |
||
|
71812D
|
71812D
71812-12300-B0 Shield, Front Seat Cushion, LhFRONT SEAT CUSHION, LH [01.1999 - 10.1999] AE111,CE110,EE111..SED..(LUNA,TERRA) W(*80,SIDE),SHADOW GRAY,TRIM12 |
71812-12300-B0 |
US $44.84 |
||
| replacement | |||||
|
71812D
|
71812D
71812-12320-B0 Shield, Front Seat Cushion, LhFRONT SEAT CUSHION, LH [01.1999 - 10.1999] AE111,CE110,EE111..SED..(LUNA,TERRA) W(*80,SIDE),SHADOW GRAY,TRIM12 |
71812-12320-B0 |
US $46.59 |
||
|
71812D
|
71812D
71812-12300-B1 Shield, Front Seat Cushion, LhFRONT SEAT CUSHION, LH [04.1997 - 01.1999] AE111,CE110,EE111..SED..(LUNA,TERRA) W(*80,SIDE),MD.CHARCOAL,TRIM1# |
71812-12300-B1 |
US $44.84 |
||
| replacement | |||||
|
71812D
|
71812D
71812-16200-B2 Shield, Front Seat Cushion, Lh[04.1997 - 01.1999] AE111,CE110,EE111..SED..(LUNA,TERRA) W(*80,SIDE),MD.CHARCOAL,TRIM1# |
71812-16200-B2 |
US $44.84 |
||
|
71812D
|
71812D
71812-16190-A0 Shield, Front Seat Cushion, LhFRONT SEAT CUSHION, LH [04.1997 - 10.1999] EE110 IVORY,TRIM0#; AE111,CE110,EE11#..SED..(LUNA,TERRA) IVORY,TRIM0# |
71812-16190-A0 |
US $44.70 |
||
| replacement | |||||
|
71812D
|
71812D
71812-16200-B2 Shield, Front Seat Cushion, Lh[04.1997 - 10.1999] EE110 IVORY,TRIM0#; AE111,CE110,EE11#..SED..(LUNA,TERRA) IVORY,TRIM0# |
71812-16200-B2 |
US $44.84 |
||
|
71812D
|
71812D
71812-16190-B0 Shield, Front Seat Cushion, Lh[01.1999 - 10.1999] EE110 SHADOW GRAY,TRIM12; AE111,CE110,EE11#..SED..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
71812-16190-B0 |
US $44.84 |
||
| replacement | |||||
|
71812D
|
71812D
71812-16200-B2 Shield, Front Seat Cushion, Lh[01.1999 - 10.1999] EE110 SHADOW GRAY,TRIM12; AE111,CE110,EE11#..SED..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
71812-16200-B2 |
US $44.84 |
||
|
71812D
|
71812D
71812-16190-B8 Shield, Front Seat Cushion, Lh[04.1997 - 01.1999] AE111,CE110,EE11#..SED..(LUNA,TERRA) MD.CHARCOAL,TRIM1# |
71812-16190-B8 |
US $44.99 |
||
| replacement | |||||
|
71812D
|
71812D
71812-16200-B2 Shield, Front Seat Cushion, Lh[04.1997 - 01.1999] AE111,CE110,EE11#..SED..(LUNA,TERRA) MD.CHARCOAL,TRIM1# |
71812-16200-B2 |
US $44.84 |
||
|
71819B
|
71819B
71819-12020-B4 Label, Side Air Bag Name[04.1997 - 08.1998] AE11#,CE110,EE111 MD.CHARCOAL,TRIM1# |
71819-12020-B4 |
US $2.62 |
||
|
71819B
|
71819B
71819-12020-E0 Label, Side Air Bag NameSIDE AIR BAG NAME [04.1997 - 10.1999] AE111,CE110,EE111..SED..(LUNA,TERRA) DARK NEUTRAL BONE,TRIM0# |
71819-12020-E0 |
US $2.48 |
||
| replacement | |||||
|
71819B
|
71819B
71819-12020-B2 Label, Side Air Bag Name[04.1997 - 10.1999] AE111,CE110,EE111..SED..(LUNA,TERRA) DARK NEUTRAL BONE,TRIM0# |
71819-12020-B2 |
US $2.62 |
||
|
71861
|
71861
71861-20130-A0 Shield, Front Seat Cushion, Inner RhFRONT SEAT CUSHION, INNER RH [04.1997 - 10.1999] EE110 IVORY,TRIM0#; AE111,CE110,EE11#..SED..(LUNA,TERRA) IVORY,TRIM0# |
71861-20130-A0 |
US $24.46 |
||
| replacement | |||||
|
71861
|
71861
71861-20130-B6 Shield, Front Seat Cushion, Inner Rh[04.1997 - 10.1999] EE110 IVORY,TRIM0#; AE111,CE110,EE11#..SED..(LUNA,TERRA) IVORY,TRIM0# |
71861-20130-B6 |
US $24.46 |
||
|
71861
|
71861
71861-20130-B0 Shield, Front Seat Cushion, Inner Rh[01.1999 - 10.1999] EE110 SHADOW GRAY,TRIM12; AE111,CE110,EE11#..SED..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
71861-20130-B0 |
US $24.46 |
||
| replacement | |||||
|
71861
|
71861
71861-20130-B6 Shield, Front Seat Cushion, Inner Rh[01.1999 - 10.1999] EE110 SHADOW GRAY,TRIM12; AE111,CE110,EE11#..SED..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
71861-20130-B6 |
US $24.46 |
||
|
71861
|
71861
71861-20130-B6 Shield, Front Seat Cushion, Inner Rh[04.1997 - 01.1999] AE111,CE110,EE11#..SED..(LUNA,TERRA) MD.CHARCOAL,TRIM1# |
71861-20130-B6 |
US $24.46 |
||
|
71862
|
71862
71862-20130-A0 Shield, Front Seat Cushion, Inner LhFRONT SEAT CUSHION, INNER LH [04.1997 - 10.1999] EE110 IVORY,TRIM0#; AE111,CE110,EE11#..SED..(LUNA,TERRA) IVORY,TRIM0# |
71862-20130-A0 |
US $24.46 |
||
|
71862
|
71862
71862-20130-B0 Shield, Front Seat Cushion, Inner Lh[01.1999 - 10.1999] EE110 SHADOW GRAY,TRIM12; AE111,CE110,EE11#..SED..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
71862-20130-B0 |
US $24.46 |
||
| replacement | |||||
|
71862
|
71862
71862-20130-B6 Shield, Front Seat Cushion, Inner Lh[01.1999 - 10.1999] EE110 SHADOW GRAY,TRIM12; AE111,CE110,EE11#..SED..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
71862-20130-B6 |
US $24.46 |
||
|
71862
|
71862
71862-20130-B6 Shield, Front Seat Cushion, Inner Lh[04.1997 - 01.1999] AE111,CE110,EE11#..SED..(LUNA,TERRA) MD.CHARCOAL,TRIM1# |
71862-20130-B6 |
US $24.46 |
||
|
72011
|
72011
72011-12260 Adjuster Sub-Assy, Front Seat, Outer Rh[04.1997 - 10.1999] AE111,CE110,EE111..RHD |
72011-12260 |
US $371.28 |
||
|
72012
|
72012
72012-12210 Adjuster Sub-Assy, Front Seat, Outer Lh[04.1997 - 10.1999] EE111..STD;AE111,CE110,EE111..RHD |
72012-12210 |
US $285.38 |
||
|
72021
|
72021
72021-12230 Adjuster Sub-Assy, Front Seat, Inner Rh[04.1997 - 10.1999] AE111,CE110,EE111..RHD |
72021-12230 |
US $283.92 |
||
|
72022
|
72022
72022-12270 Adjuster Sub-Assy, Front Seat, Inner Lh[04.1997 - 10.1999] EE111..STD;AE111,CE110,EE111..RHD |
72022-12270 |
US $285.38 |
||
|
72125A
|
72125A
72125-10010 Cover, Seat Track, Upper Rear[04.1997 - 10.1999] EE110; AE11#,CE110,EE11# |
72125-10010 |
US $2.18 |
||
|
72129
|
72129
72129-12010 Protector, Seat Track Lower Rail, No.1[04.1997 - 10.1999] EE110; AE11#,CE110,EE11# |
72129-12010 |
US $5.24 |
||
|
72129A
|
72129A
72129-20020 Protector, Seat Track Lower Rail, No.1[04.1997 - 02.1999] EE110; AE11#,CE110,EE11# |
72129-20020 |
US $3.20 |
||
|
72137B
|
72137B
72137-12070-C0 Cover, Seat Track, Rh[04.1997 - 01.1999] EE110 BLACK,TRIM0#,1#; AE111,CE110,EE11#..SED..TERRA BLACK,TRIM0#,1#; AE111,EE111..SED..LUNA BLACK,TRIM1# |
72137-12070-C0 |
US $12.67 |
||
|
72138B
|
72138B
72138-12080-C0 Cover, Seat Track, Lh[04.1997 - 01.1999] EE110 BLACK,TRIM0#,1#; AE111,CE110,EE11#..SED..TERRA BLACK,TRIM0#,1#; AE111,EE111..SED..LUNA BLACK,TRIM1# |
72138-12080-C0 |
US $12.67 |
||
|
72157A
|
72157A
72157-12030-C0
Cover, Seat Track Bracket, Inner Rh
[04.1997 - 01.1999] EE110 BLACK,TRIM0#,1#; AE111,CE110,EE11#..SED..(LUNA,TERRA) BLACK,TRIM0#,1# |
72157-12030-C0 |
— | ||
|
72158
|
72158
72158-12030-C0
Cover, Seat Track Bracket, Inner Lh
[04.1997 - 01.1999] EE110 BLACK,TRIM0#,1#; AE111,CE110,EE11#..SED..(LUNA,TERRA) BLACK,TRIM0#,1# |
72158-12030-C0 |
— | ||
|
72201A
|
72201A
72201-12030 Handle Sub-Assy, Seat Track Rh[04.1997 - 10.1999] AE11#,CE110,EE11# |
72201-12030 |
US $28.25 |
||
|
72201B
|
72201B
72201-12030 Handle Sub-Assy, Seat Track Rh[04.1997 - 10.1999] AE11#,CE110,EE11# |
72201-12030 |
US $28.25 |
||
|
72457B
|
72457B
72457-18010-A1 Knob, Vertical Seat Adjuster[04.1997 - 10.1999] AE111,CE110,EE111..RHD..SED IVORY,TRIM0# |
72457-18010-A1 |
US $14.27 |
||
|
72457B
|
72457B
72457-18010-B3 Knob, Vertical Seat Adjuster[01.1999 - 10.1999] AE111,CE110,EE111..RHD SHADOW GRAY,TRIM12 |
72457-18010-B3 |
US $17.33 |
||
| replacement | |||||
|
72457B
|
72457B
72457-18010-S1 Knob, Vertical Seat Adjuster[01.1999 - 10.1999] AE111,CE110,EE111..RHD SHADOW GRAY,TRIM12 |
72457-18010-S1 |
US $10.63 |
||
|
72457B
|
72457B
72457-18010-P0 Knob, Vertical Seat Adjuster[04.1997 - 08.1998] AE111,CE110,EE111..RHD MD.CHARCOAL,TRIM1# |
72457-18010-P0 |
US $16.89 |
||
| replacement | |||||
|
72457B
|
72457B
72457-18010-S1 Knob, Vertical Seat Adjuster[04.1997 - 08.1998] AE111,CE110,EE111..RHD MD.CHARCOAL,TRIM1# |
72457-18010-S1 |
US $10.63 |
||
|
72501D
|
72501D
72345-12040 Pipe Sub-Assy, Reclining Connecting, Rh[04.1997 - 10.1999] AE11#,CE110,EE11# |
72345-12040 |
US $27.08 |
||
|
72501E
|
72501E
72345-12040 Pipe Sub-Assy, Reclining Connecting, Rh[04.1997 - 10.1999] AE11#,CE110,EE11# |
72345-12040 |
US $27.08 |
||
|
72525A
|
72525A
72525-16010-A0 Handle, Reclining Adjuster Release, Rh[04.1997 - 10.1999] EE110 IVORY,TRIM0#; AE111,CE110,EE11#..SED..(LUNA,TERRA) IVORY,TRIM0# |
72525-16010-A0 |
US $16.42 |
||
|
72525A
|
72525A
72525-16010-B0
Handle, Reclining Adjuster Release, Rh
[01.1999 - 10.1999] EE110 SHADOW GRAY,TRIM12; AE111,CE110,EE11#..SED..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
72525-16010-B0 |
— | ||
|
72525A
|
72525A
72525-16010-B8 Handle, Reclining Adjuster Release, Rh[04.1997 - 01.1999] AE111,CE110,EE11#..SED..(LUNA,TERRA) MD.CHARCOAL,TRIM1# |
72525-16010-B8 |
US $16.89 |
||
| replacement | |||||
|
72525A
|
72525A
72525-16010-S5
Handle, Reclining Adjuster Release, Rh
[04.1997 - 01.1999] AE111,CE110,EE11#..SED..(LUNA,TERRA) MD.CHARCOAL,TRIM1# |
72525-16010-S5 |
— | ||
|
72526
|
72526
72526-16010-A0 Handle, Reclining Adjuster Release, Lh[04.1997 - 10.1999] EE110 IVORY,TRIM0#; AE111,CE110,EE11#..SED..(LUNA,TERRA) IVORY,TRIM0# |
72526-16010-A0 |
US $13.98 |
||
|
72526
|
72526
72526-16010-B0
Handle, Reclining Adjuster Release, Lh
[01.1999 - 10.1999] EE110 SHADOW GRAY,TRIM12; AE111,CE110,EE11#..SED..(LUNA,TERRA) SHADOW GRAY,TRIM12 |
72526-16010-B0 |
— | ||
|
72526
|
72526
72526-16010-B8 Handle, Reclining Adjuster Release, Lh[04.1997 - 01.1999] AE111,CE110,EE11#..SED..(LUNA,TERRA) MD.CHARCOAL,TRIM1# |
72526-16010-B8 |
US $16.89 |
||
| replacement | |||||
|
72526
|
72526
72526-16010-S5
Handle, Reclining Adjuster Release, Lh
[04.1997 - 01.1999] AE111,CE110,EE11#..SED..(LUNA,TERRA) MD.CHARCOAL,TRIM1# |
72526-16010-S5 |
— | ||
|
9011910349
|
9011910349
90119-10349
BOLT
|
90119-10349 |
— | ||
| replacement | |||||
|
9011910349
|
9011910349
91651-G1020 BOLT |
91651-G1020 |
from US $1.11 |
||
|
9016740044
|
9016740044
90167-40044 BOLT |
90167-40044 |
from US $0.76 |
||
|
9052001006
|
9052001006
90520-01006 Ring, Shaft Snap(For Lumber Support Lever) |
90520-01006 |
US $1.28 |
||
|
9151160816
|
9151160816
91511-60816
BOLT
|
91511-60816 |
— | ||
| replacement | |||||
|
9151160816
|
9151160816
91511-B0816 BOLT |
91511-B0816 |
US $0.92 |
||
|
9151281020
|
9151281020
91512-81020 BOLT FLANGE |
91512-81020 |
US $1.31 |
||
|
9151581025
|
9151581025
91515-81025 New Genuine Part |
91515-81025 |
US $1.31 |
||
|
9356014008
|
9356014008
93560-14008 New Genuine Part |
93560-14008 |
US $1.16 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
||
