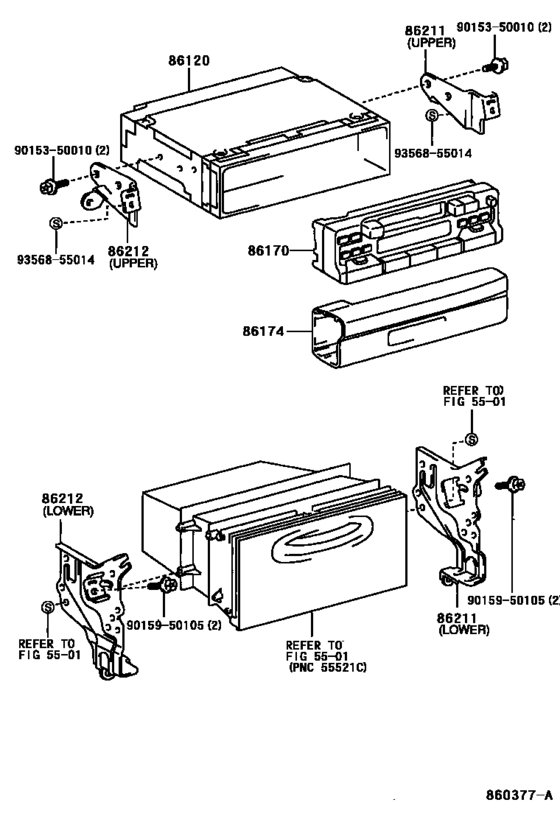

Radio Receiver & Amplifier & Condenser ([04.1997 - 10.1999] (9704-9910)) Diagram Toyota COROLLA
- Year
- 1997 - 1999
- Sales region
- Europe
- Frame
- CE110
- grade
- TERRA
- body
- SED
- ENGINE
- 2CE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 04.1997
- To
- 10.1999
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86120
|
86120
86120-60210 Receiver Assy, RadioRADIO [04.1997 - 10.1999] EE110 MATSUSHITA, ID=58408; AE11#,CE110,EE11# MATSUSHITA, ID=58408 |
86120-60210 |
US $1,572.48 |
||
|
86170
|
86170
86170-60010 Switch And Volume Assy, RadioRADIO [04.1997 - 10.1999] EE110; AE11#,CE110,EE11# |
86170-60010 |
US $433.89 |
||
|
86174
|
86174
86174-60010
Case, Switch & Volume
[04.1997 - 10.1999] EE110; AE11#,CE110,EE11# |
86174-60010 |
— | ||
|
86211
|
86211
86211-12340 Bracket, Radio, No.1[04.1997 - 10.1999] EE110 UPPER; AE11#,CE110,EE11# UPPER |
86211-12340 |
US $6.64 |
||
|
86211
|
86211
86211-12350 Bracket, Radio, No.1[04.1997 - 10.1999] EE110 LOWER; AE11#,CE110,EE11#..STD,TERRA LOWER |
86211-12350 |
US $9.26 |
||
|
86212
|
86212
86212-12320 Bracket, Radio, No.2[04.1997 - 10.1999] EE110 UPPER; AE11#,CE110,EE11# UPPER |
86212-12320 |
US $6.64 |
||
|
86212
|
86212
86212-12330 Bracket, Radio, No.2[04.1997 - 10.1999] EE110 LOWER; AE11#,CE110,EE11#..STD,TERRA LOWER |
86212-12330 |
US $9.61 |
||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.74 |
||
|
9015950105
|
9015950105
90159-50105 SCREW |
90159-50105 |
from US $0.68 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $1.12 |
