Wiring & Clamp ([04.1997 - ] CLAMP & BRACKET (9704- )) Diagram Toyota COROLLA
- Year
- 1997 - 1999
- Sales region
- Europe
- Frame
- CE110
- grade
- TERRA
- body
- SED
- ENGINE
- 2CE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 04.1997
- To
- 10.1999
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?

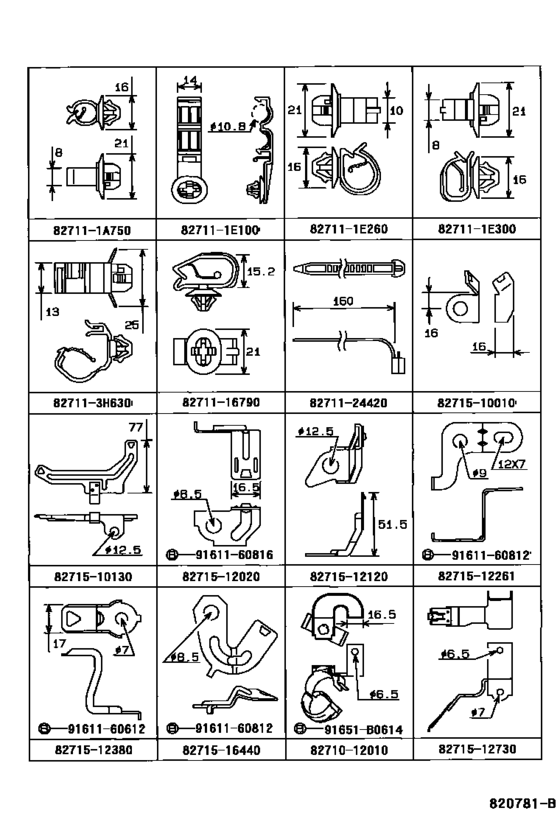

| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
91651B0614
|
91651B0614
91651-B0614 BOLT WWASHER |
91651-B0614 |
US $1.60 |
||
|
827111A750
|
827111A750
82711-1A750 Clamp, No.1(For Back Door Lock Control Cable) |
82711-1A750 |
US $0.96 |
||
|
827111E100
|
827111E100
82711-1E100 Wire, Fuse To Fuse(for Combustion Heater) |
82711-1E100 |
US $5.10 |
||
|
827111E260
|
827111E260
82711-1E260 Clamp (For Fuel Lid Lock Control Cable) |
82711-1E260 |
from US $1.01 |
||
|
827111E300
|
827111E300
82711-1E300 Clamp, Wiring Harness |
82711-1E300 |
US $1.12 |
||
|
827113H630
|
827113H630
82711-3H630 Wire, Fuse To Fuse(for Combustion Heater) |
82711-3H630 |
US $2.24 |
||
|
8271012010
|
8271012010
82710-12010 Harness Assy, Oil Heater |
82710-12010 |
US $11.07 |
||
|
8271116790
|
8271116790
82711-16790 Clamp, Wiring Harness |
82711-16790 |
from US $1.40 |
||
|
8271124420
|
8271124420
82711-24420 Wire, Fuse To Fuse(for Combustion Heater) |
82711-24420 |
US $6.41 |
||
|
8271510010
|
8271510010
82715-10010 Bracket,wiring Harness Clamp |
82715-10010 |
US $5.10 |
||
|
8271510130
|
8271510130
82715-10130 Bracket,wiring Harness Clamp |
82715-10130 |
US $13.69 |
||
|
8271512020
|
8271512020
82715-12020
Bracket,wiring Harness Clamp
|
82715-12020 |
— | ||
|
8271512120
|
8271512120
82715-12120 Bracket,wiring Harness Clamp |
82715-12120 |
US $7.28 |
||
|
8271512261
|
8271512261
82715-12261 Bracket,wiring Harness Clamp |
82715-12261 |
US $6.70 |
||
|
8271512380
|
8271512380
82715-12380 Bracket,wiring Harness Clamp |
82715-12380 |
US $6.12 |
||
|
8271512730
|
8271512730
82715-12730 Bracket,wiring Harness Clamp |
82715-12730 |
US $10.92 |
||
|
8271516440
|
8271516440
82715-16440 Bracket,wiring Harness Clamp |
82715-16440 |
US $5.10 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt |
91611-G0612 |
from US $0.82 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
