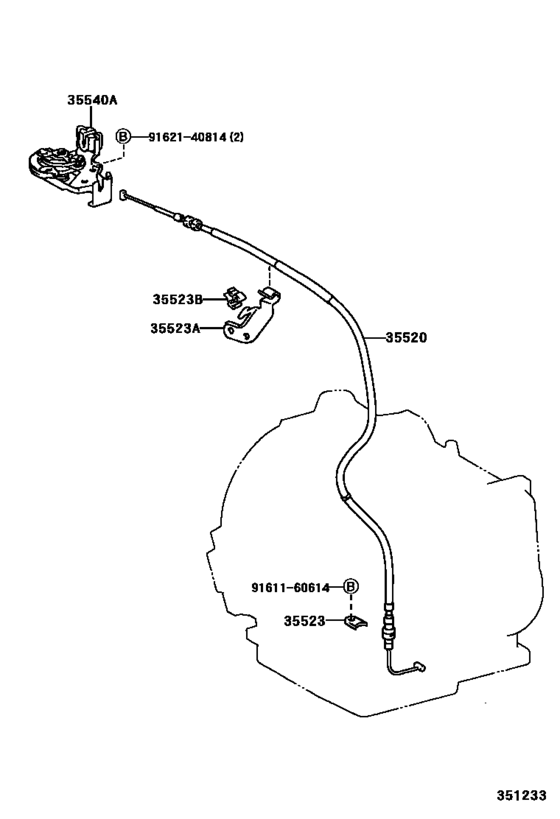

Throttle Link & Valve Lever (Atm) ([04.1998 - ] A241L (9804- )CE113..4FC) Diagram Toyota COROLLA
- Year
- 1998 - 2000
- Sales region
- Japan
- Frame
- CE113
- grade
- SESAL
- body
- SED
- ENGINE
- 3CE
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 04.1998
- To
- 08.2000
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35520
|
35520
35520-12480 Cable Assy, Throttle[04.1998 - 08.2000] CE113..4FC |
35520-12480 |
US $50.23 |
||
|
35523
|
35523
35523-12080
Clamp, Throttle Cable
[04.1997 - 08.2000] AE110,114,CE110,113..4FC |
35523-12080 |
— | ||
|
35523A
|
35523A
35523-12270 Clamp, Throttle Cable, No.1[04.1998 - 08.2000] CE113..4FC |
35523-12270 |
US $6.41 |
||
|
35523B
|
35523B
90929-01352
Clamp, Throttle Cable, No.3
[04.1998 - 08.2000] CE113..4FC |
90929-01352 |
— | ||
|
35540A
|
35540A
35540-21020 Bracket Assy, Throt Link Bellcrank[04.1998 - 08.2000] CE113..4FC |
35540-21020 |
US $51.11 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.88 |
||
|
9162140814
|
9162140814
91621-40814 Bolt |
91621-40814 |
US $1.44 |
||
