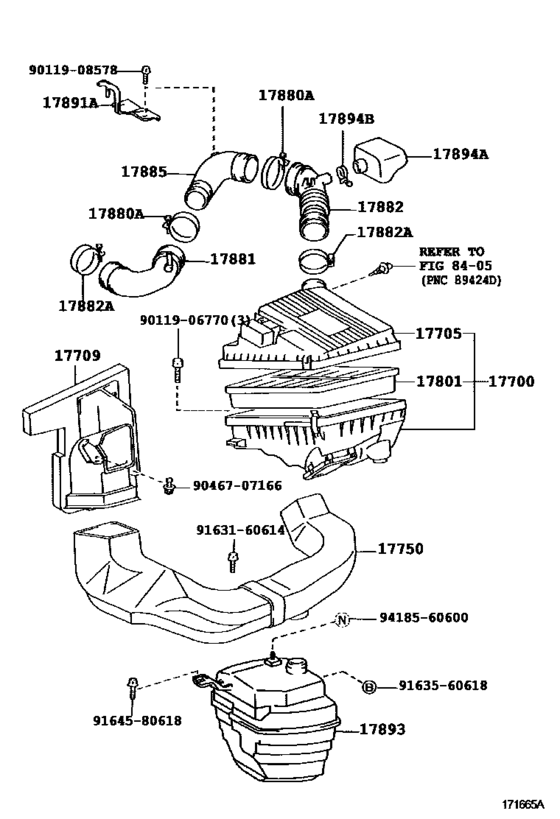

Air Cleaner ([04.1998 - ] (9804- )3CE) Diagram Toyota COROLLA
- Year
- 1998 - 2000
- Sales region
- Japan
- Frame
- CE116
- grade
- LX
- body
- SED
- ENGINE
- 3CE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 04.1998
- To
- 08.2000
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-64440 Cleaner Assy, Air[04.1998 - 08.2000] 3CE..CE11# |
17700-64440 |
US $336.34 |
||
|
17705
|
17705
17705-64310
Cap Sub-Assy, Air Cleaner
[04.1998 - 08.2000] 3CE..CE11# |
17705-64310 |
— | ||
|
17709
|
17709
17709-64020 Inlet Sub-Assy, Air Cleaner[04.1997 - 08.2000] 2C,3CE..CE11# |
17709-64020 |
US $90.27 |
||
|
17750
|
17750
17750-64020 Cover Assy, Air Cleaner Inlet, Seal[04.1997 - 08.2000] 2C,3CE..CE11# |
17750-64020 |
US $74.26 |
||
|
17801
|
17801
17801-64070 Element Sub-Assy, Air Cleaner Filter[04.1997 - 08.2000] 2C,3CE..CE11# |
17801-64070 |
from US $26.73 |
||
|
17880A
|
17880A
96111-10630 Clamp, Hose[04.1997 - 08.2000] 2C,3CE..CE11# |
96111-10630 |
US $3.68 |
||
|
17881
|
17881
17881-64360
Hose, Air Cleaner, No.1
[04.1998 - 08.2000] 3CE..CE11# |
17881-64360 |
— | ||
|
17882
|
17882
17882-64110
Hose, Air Cleaner, No.2
[04.1998 - 08.2000] 3CE..CE11# |
17882-64110 |
— | ||
|
17882A
|
17882A
96111-10650 Clamp(For Air Cleaner Inlet, No.1)[04.1997 - 08.2000] 2C,3CE..CE11# |
96111-10650 |
from US $2.89 |
||
|
17885
|
17885
17885-64010
Pipe, Air Cleaner
[04.1998 - 08.2000] 3CE..CE11# |
17885-64010 |
— | ||
|
17891A
|
17891A
17891-64010 Clamp, Air Cleaner Hose[04.1997 - 08.2000] 2C,3CE..CE11# |
17891-64010 |
US $5.39 |
||
|
17893
|
17893
17893-15050 Resonator, Intake Air[04.1997 - 08.2000] 2C,3CE..CE11#; 4EFE..EE111; 4A#,5AFE..AE11# |
17893-15050 |
US $168.90 |
||
|
17894A
|
17894A
17894-64070 Resonator, Intake Air, No.2[04.1998 - 08.2000] 3CE..CE11# |
17894-64070 |
US $46.45 |
||
|
17894B
|
17894B
96111-10330 Clamp Or Clip, Hose(For Water By-Pass Hose)[04.1998 - 08.2000] 3CE..CE11# |
96111-10330 |
US $2.08 |
||
|
9011906770
|
9011906770
90119-06770 New Genuine Part |
90119-06770 |
US $1.75 |
||
| replacement | |||||
|
9011906770
|
9011906770
90119-06859 BOLT WWASHER |
90119-06859 |
from US $1.09 |
||
|
9011908578
|
9011908578
90119-08578 New Genuine Part |
90119-08578 |
US $1.89 |
||
| replacement | |||||
|
9011908578
|
9011908578
90119-08B80 New Genuine Part |
90119-08B80 |
US $1.75 |
||
|
9046707166
|
9046707166
90467-07166 Clip(For Front Fender Apron Seal) |
90467-07166 |
from US $0.90 |
||
|
9163160614
|
9163160614
91631-60614 BOLT |
91631-60614 |
US $1.60 |
||
| replacement | |||||
|
9163160614
|
9163160614
91661-60616 BOLT |
91661-60616 |
from US $0.74 |
||
|
9163560618
|
9163560618
91635-60618 New Genuine Part |
91635-60618 |
US $2.62 |
||
| replacement | |||||
|
9163560618
|
9163560618
91631-B0614 BOLT WWASHER |
91631-B0614 |
from US $0.88 |
||
|
9164580618
|
9164580618
91645-80618
Direct
|
91645-80618 |
— | ||
| replacement | |||||
|
9164580618
|
9164580618
91641-C0614 Bolt |
91641-C0614 |
from US $0.72 |
||
|
9418560600
|
9418560600
94185-60600 Nut, Wire Adjusting, No.1 |
94185-60600 |
from US $0.76 |
||
