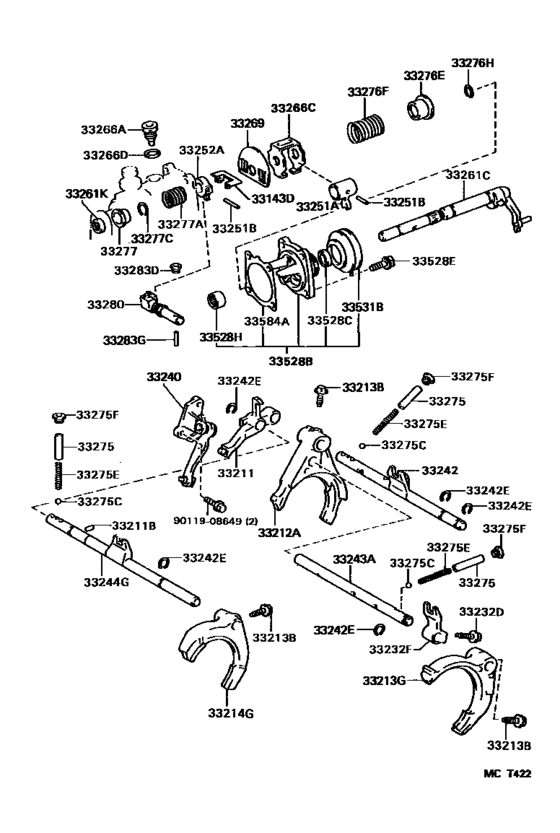

Gear Shift Fork & Lever Shaft (Mtm) ([05.1995 - 12.1999] E55F,E55F5,E59F (9505-9912)AE114,CE114,116..5F) Diagram Toyota COROLLA
- Year
- 1998 - 2000
- Sales region
- Japan
- Frame
- CE116
- grade
- LX
- body
- SED
- ENGINE
- 3CE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 04.1998
- To
- 08.2000
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33143D
|
33143D
33143-12020 Baffle, Transmission Oil[04.1997 - 08.2000] AE114,CE114,116..5F |
33143-12020 |
US $2.77 |
||
|
33211
|
33211
33211-20020 Fork, Reverse Shift[04.1997 - 08.2000] AE114,CE114,116..5F |
33211-20020 |
US $31.16 |
||
|
33211B
|
33211B
90361-08005 Roller(For Reverse Shift Fork)[04.1997 - 08.2000] AE114,CE114,116..5F |
90361-08005 |
US $3.32 |
||
|
33212A
|
33212A
33212-12030
Fork, Gear Shift, No.1
[04.1997 - 08.2000] AE114,CE114,116..5F |
33212-12030 |
— | ||
|
33213B
|
33213B
90105-07002 Bolt(For Shift Fork Set)[04.1997 - 08.2000] AE114,CE114,116..5F |
90105-07002 |
US $1.44 |
||
|
33213G
|
33213G
33213-12032
Fork, Gear Shift, No.2
[04.1997 - 12.1999] AE114,CE114,116..5F |
33213-12032 |
— | ||
|
33213G
|
33213G
33220-28020 Fork, Gear Shift, No.2[12.1999 - 08.2000] AE114,CE116..5F |
33220-28020 |
US $156 |
||
|
33214G
|
33214G
33214-12020 Fork, Gear Shift, No.3[04.1997 - 08.2000] AE114,CE114,116..5F |
33214-12020 |
from US $48.05 |
||
|
33232D
|
33232D
90105-07002 Bolt(For Shift Fork Set)[04.1997 - 08.2000] AE114,CE114,116..5F |
90105-07002 |
US $1.44 |
||
|
33232F
|
33232F
33232-12030
Head, Gear Shift, No.1
[04.1997 - 08.2000] AE114,CE114,116..5F |
33232-12030 |
— | ||
|
33240
|
33240
33240-12021 Bracket Assy, Reverse Shift Arm[04.1997 - 12.1999] AE114,CE114,116..5F |
33240-12021 |
US $112.11 |
||
|
33240
|
33240
33240-28010 Bracket Assy, Reverse Shift Arm[12.1999 - 08.2000] AE114,CE116..5F |
33240-28010 |
US $64.50 |
||
|
33242
|
33242
33242-12061 Shaft, Gear Shift Fork, No.1[04.1997 - 05.1999] AE114,CE114,116..5F |
33242-12061 |
US $57.08 |
||
| replacement | |||||
|
33242
|
33242
33242-12062 Shaft, Gear Shift Fork, No.1[04.1997 - 05.1999] AE114,CE114,116..5F |
33242-12062 |
US $57.08 |
||
|
33242
|
33242
33242-12062 Shaft, Gear Shift Fork, No.1[05.1999 - 12.1999] AE114,CE116..5F |
33242-12062 |
US $57.08 |
||
|
33242
|
33242
33242-28030 Shaft, Gear Shift Fork, No.1[12.1999 - 08.2000] AE114,CE116..5F |
33242-28030 |
US $57.22 |
||
|
33242E
|
33242E
90520-13002 Ring, Shaft Snap (For Shift Fork Shaft)[04.1997 - 08.2000] AE114,CE114,116..5F |
90520-13002 |
from US $1.28 |
||
|
33243A
|
33243A
33243-12111 Shaft, Gear Shift Fork, No.2[04.1997 - 12.1999] AE114,CE114,116..5F |
33243-12111 |
US $56.93 |
||
|
33243A
|
33243A
33243-28040 Shaft, Gear Shift Fork, No.2[12.1999 - 08.2000] AE114,CE116..5F |
33243-28040 |
US $39.46 |
||
|
33244G
|
33244G
33244-12080 Shaft, Gear Shift Fork, No.3[04.1997 - 12.1999] AE114,CE114,116..5F |
33244-12080 |
US $48.63 |
||
|
33244G
|
33244G
33244-28030 Shaft, Gear Shift Fork, No.3[12.1999 - 08.2000] AE114,CE116..5F |
33244-28030 |
US $57.22 |
||
|
33251A
|
33251A
33251-20050
Lever, Shift, Inner No.1
[04.1997 - 12.1999] AE114,CE114,116..5F |
33251-20050 |
— | ||
|
33251A
|
33251A
33251-28040 Lever, Shift, Inner No.1[12.1999 - 08.2000] AE114,CE116..5F |
33251-28040 |
US $67.70 |
||
|
33251B
|
33251B
90254-05007 Pin, Slotted Spring (For Shift Inner Lever)[04.1997 - 08.2000] AE114,CE11#..5F 長さ＝４７．０ |
90254-05007 |
US $3.68 |
||
|
33251B
|
33251B
90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)[04.1997 - 08.2000] AE111,114,CE114,116..MTM 長さ＝２５．５ |
90254-05016 |
from US $2.05 |
||
|
33252A
|
33252A
33252-20020
Lever, Shift, Inner No.2
[04.1997 - 08.2000] AE114,CE114,116..5F |
33252-20020 |
— | ||
|
33261C
|
33261C
33261-20070 Shaft, Shift & Select Lever[04.1997 - 12.1999] AE114,CE114,116..5F |
33261-20070 |
US $41.23 |
||
|
33261C
|
33261C
33261-20071 Shaft, Shift & Select Lever[12.1999 - 08.2000] AE114,CE116..5F |
33261-20071 |
US $126.67 |
||
|
33261K
|
33261K
90364-15003
Bearing, Needle Roller (For Shift & Select Lever Shaft)
[04.1997 - 11.1999] AE114,CE114,116..5F |
90364-15003 |
— | ||
|
33261K
|
33261K
90384-15002 Bush, Bimetal Formed(For Outer Select Lever)[11.1999 - 08.2000] AE114,CE116..5F |
90384-15002 |
US $1.76 |
||
|
33266A
|
33266A
90109-18002
Bolt (For Shift Inter Lock Plate)
[04.1997 - 12.1999] AE114,CE114,116..5F |
90109-18002 |
— | ||
|
33266C
|
33266C
33266-12030
Plate, Shift Inter Lock
[04.1997 - 12.1999] AE114,CE114,116..5F |
33266-12030 |
— | ||
|
33266C
|
33266C
33266-28010
Plate, Shift Inter Lock
[12.1999 - 08.2000] AE114,CE116..5F |
33266-28010 |
— | ||
| replacement | |||||
|
33266C
|
33266C
33266-28011
Plate, Shift Inter Lock
[12.1999 - 08.2000] AE114,CE116..5F |
33266-28011 |
— | ||
|
33266D
|
33266D
90430-18008 Gasket[04.1997 - 07.1999] AE114,CE114,116..5F |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
33266D
|
33266D
90430-T0021
Gasket(For Manual Transmission Filler Plug)
[04.1997 - 07.1999] AE114,CE114,116..5F |
90430-T0021 |
— | ||
|
33269
|
33269
33269-12010 Cover, Shift Inter Lock Plate[04.1997 - 08.2000] AE114,CE114,116..5F |
33269-12010 |
US $2.33 |
||
|
33275
|
33275
33275-20010
Seat, Shift Detent Ball Spring, No.1
[04.1997 - 12.1999] AE114,CE114,116..5F 外径＝４４．１ |
33275-20010 |
— | ||
|
33275C
|
33275C
90360-08009 Ball, Reverse Shift Restrict[04.1997 - 08.2000] AE114,CE114,116..5F |
90360-08009 |
US $1.40 |
||
|
33275E
|
33275E
90501-14104
Spring, Compression (For Shift Detent Ball)
[04.1997 - 12.1999] AE114,CE114,116..5F |
90501-14104 |
— | ||
|
33275F
|
33275F
90341-12004 Plug, Oil Pan(For Oil Cooler)[04.1997 - 08.2000] AE11#,CE114,116,EE111..MTM |
90341-12004 |
US $2.24 |
||
|
33276E
|
33276E
33276-20020 Seat, Select Spring, No.1[04.1997 - 08.2000] AE114,CE114,116..5F |
33276-20020 |
US $5.42 |
||
|
33276F
|
33276F
90501-16133
Spring, Compression, No.1 (For Select Return)
[04.1997 - 12.1999] AE114,CE114,116..5F |
90501-16133 |
— | ||
|
33276F
|
33276F
90501-16134
Spring, Compression, No.1 (For Select Return)
[12.1999 - 08.2000] AE114,CE116..5F |
90501-16134 |
— | ||
|
33276H
|
33276H
90520-15003 Ring, Shaft Snap (For Select Spring No.1 Seat)[04.1997 - 08.2000] AE110,114,CE114,116,EE111..MTM |
90520-15003 |
US $0.79 |
||
|
33277
|
33277
33277-17010 Seat, Select Spring, No.2[04.1997 - 08.2000] AE114,CE114,116..5F |
33277-17010 |
US $10.31 |
||
|
33277A
|
33277A
90501-17028 Spring, Compression, No.2 (For Select Return)[12.1999 - 08.2000] AE114,CE116..5F |
90501-17028 |
US $2.62 |
||
|
33277A
|
33277A
90501-17030
Spring, Compression, No.2 (For Select Return)
[04.1997 - 12.1999] AE114,CE114,116..5F |
90501-17030 |
— | ||
|
33277C
|
33277C
90520-12003 Ring(For Reverse Shift Head)[04.1997 - 08.2000] AE114,CE114,116..5F |
90520-12003 |
from US $0.92 |
||
|
33280
|
33280
33280-20041
Pin Assy, Reverse Restrict
[04.1997 - 08.2000] AE114,CE114,116..5F |
33280-20041 |
— | ||
|
33283D
|
33283D
90341-10065 Plug, Straight, No.1[04.1997 - 08.2000] AE11#,CE11#,EE111..MTM |
90341-10065 |
US $3.52 |
||
|
33283G
|
33283G
90254-05003 Pin, Slotted Spring(For Shift Fork Set)[04.1997 - 08.2000] AE110,114,CE114,116,EE111..5F |
90254-05003 |
US $0.70 |
||
|
33528B
|
33528B
33506-20270
Cover, Control Shaft
[04.1997 - 12.1999] AE114,CE114,116..5F |
33506-20270 |
— | ||
|
33528B
|
33528B
33506-28210 Cover, Control Shaft[12.1999 - 08.2000] AE114,CE116..5F |
33506-28210 |
US $56.64 |
||
|
33528C
|
33528C
90311-18013 Seal, Oil (For Control Shaft Cover)[04.1997 - 08.2000] AE11#,CE11#,EE111..MTM |
90311-18013 |
from US $2.32 |
||
|
33528E
|
33528E
90119-10288 Bolt (For Control Shaft Cover)[04.1997 - 08.2000] AE114,CE114,116..5F ＊１０−１．２５ＰＸ２５−１９．８ |
90119-10288 |
US $0.70 |
||
|
33528H
|
33528H
90364-18009
Bearing, Needle Roller (For Control Shaft Cover)
[04.1997 - 12.1999] AE114,CE114,116..5F |
90364-18009 |
— | ||
|
33531B
|
33531B
33531-12020 Boot, Dust (For Shift & Select Lever Shaft)[04.1997 - 08.2000] AE110,114,CE114,116,EE111..MTM |
33531-12020 |
from US $9.77 |
||
|
33584A
|
33584A
33584-20020
Gasket, Control Shift Lever Retainer
[04.1997 - 08.2000] AE114,CE114,116..5F |
33584-20020 |
— | ||
|
9011908649
|
9011908649
90119-08649 Bolt(For Intake Manifold To Exhaust Manifold) |
90119-08649 |
US $1.89 |
||
| replacement | |||||
|
9011908649
|
9011908649
91611-60822 Bolt |
91611-60822 |
from US $2.48 |
||
