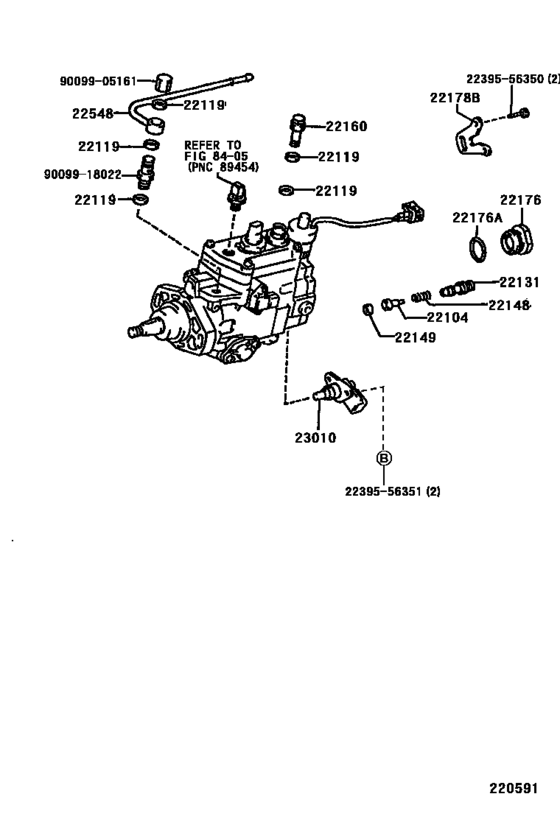

Injection Pump Body ([04.1998 - ] (9804- )3CE) Diagram Toyota COROLLA
- Year
- 1998 - 2000
- Sales region
- Japan
- Frame
- CE116
- grade
- LX
- body
- SED
- ENGINE
- 3CE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 04.1998
- To
- 08.2000
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22104
|
22104
22104-6A640 Valve Sub-Assy, Injection Pump Delivery[04.1998 - 08.2000] 3CE..CE11# |
22104-6A640 |
US $15.20 |
||
|
22119
|
22119
90201-12109 Washer, Air Bleeder Nipple[05.1997 - 08.2000] 2C,3CE..CE110,113,116 |
90201-12109 |
from US $1.38 |
||
|
22131
|
22131
22190-6A680 Holder, Delivery Valve[04.1997 - 08.2000] 2C,3CE..CE11# |
22190-6A680 |
US $19.92 |
||
|
22148
|
22148
22148-54010 Spring, Delivery Valve[04.1997 - 08.2000] 2C,3CE..CE11# |
22148-54010 |
from US $1.40 |
||
|
22149
|
22149
22149-56351 Gasket, Delivery Valve[04.1997 - 08.2000] 2C,3CE..CE11# |
22149-56351 |
US $0.70 |
||
|
22160
|
22160
22160-54271 Screw Sub-Assy, Overflow[04.1998 - 08.2000] 3CE..CE11# |
22160-54271 |
US $14.68 |
||
|
22176
|
22176
22176-54640
Plug, Distributive Head
[04.1998 - 08.2000] 3CE..CE11# |
22176-54640 |
— | ||
|
22176A
|
22176A
22193-54772 Ring, O(For Distributive Head Plug)[04.1997 - 08.2000] 2C,3CE..CE11# |
22193-54772 |
from US $2.97 |
||
|
22178B
|
22178B
22178-64010
Bracket(For Injection Pump Assy)
[04.1997 - 08.2000] 2C,3CE..CE11# |
22178-64010 |
— | ||
|
22548
|
22548
22548-6E150
Nipple, Swivel
[04.1998 - 08.2000] 3CE..CE11# |
22548-6E150 |
— | ||
|
23010
|
23010
23010-64020 Valve Assy, Timing Control[04.1998 - 06.2000] 3CE..CE11# |
23010-64020 |
US $404.77 |
||
| replacement | |||||
|
23010
|
23010
23010-67010 Valve Assy, Timing Control[04.1998 - 06.2000] 3CE..CE11# |
23010-67010 |
from US $236.91 |
||
|
23010
|
23010
23010-67010 Valve Assy, Timing Control[06.2000 - 08.2000] 3CE..CE11# |
23010-67010 |
from US $236.91 |
||
|
2239556350
|
2239556350
22395-56350
Bolt, Socket(for Injection Pump Governor Cover)
|
22395-56350 |
— | ||
|
2239556351
|
2239556351
22395-56351
Bolt, Socket(for Injection Pump Governor Cover)
|
22395-56351 |
— | ||
|
9009905161
|
9009905161
90099-05161 Nut, Timer Round |
90099-05161 |
from US $1.25 |
||
|
9009918022
|
9009918022
90099-18022
SCREW
|
90099-18022 |
— | ||
