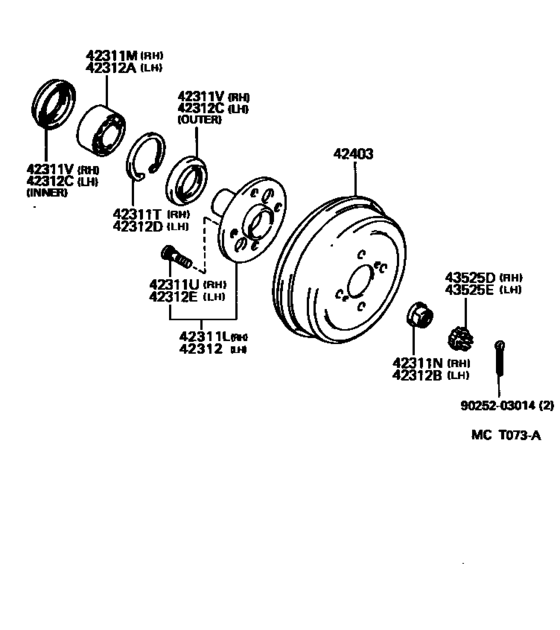

Rear Axle Shaft & Hub ([05.1995 - ] (9505- )AE114,CE114,116) Diagram Toyota COROLLA
- Year
- 1998 - 2000
- Sales region
- Japan
- Frame
- CE116
- grade
- LX
- body
- SED
- ENGINE
- 3CE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 04.1998
- To
- 08.2000
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42311L
|
42311L
42301-12230
Shaft, Rear Axle, Rh
[04.1997 - 08.2000] AE114,CE114,116 |
42301-12230 |
— | ||
|
42311M
|
42311M
90369-38018 Bearing (For Rear Axle Shaft Rh)[04.1997 - 08.2000] AE114,CE114,116 |
90369-38018 |
from US $74.61 |
||
|
42311N
|
42311N
90178-22001 Nut (For Axle Shaft)[09.1997 - 08.2000] AE114,CE114,116 |
90178-22001 |
from US $2.15 |
||
|
42311T
|
42311T
90521-69004 Ring, Snap (For Rear Axle Shaft Rh)[04.1997 - 08.2000] AE114,CE114,116 |
90521-69004 |
US $3.03 |
||
|
42311U
|
42311U
90942-02047 Bolt, Hub[04.1997 - 08.2000] AE11#,CE11#,EE111 |
90942-02047 |
from US $3.68 |
||
|
42311V
|
42311V
90311-52010 Seal, Oil (For Rear Axle Shaft Rh)[04.1997 - 08.2000] AE114,CE114,116 外側 |
90311-52010 |
US $5.60 |
||
|
42311V
|
42311V
90311-56007 Seal, Oil (For Rear Axle Shaft)[04.1997 - 08.2000] AE114,CE114,116 内側 |
90311-56007 |
from US $8.32 |
||
|
42312
|
42312
42301-12230
Shaft, Rear Axle, Rh
[04.1997 - 08.2000] AE114,CE114,116 |
42301-12230 |
— | ||
|
42312A
|
42312A
90369-38018 Bearing (For Rear Axle Shaft Rh)[04.1997 - 08.2000] AE114,CE114,116 |
90369-38018 |
from US $74.61 |
||
|
42312B
|
42312B
90178-22001 Nut (For Axle Shaft)[09.1997 - 08.2000] AE114,CE114,116 |
90178-22001 |
from US $2.15 |
||
|
42312C
|
42312C
90311-52010 Seal, Oil (For Rear Axle Shaft Rh)[04.1997 - 08.2000] AE114,CE114,116 外側 |
90311-52010 |
US $5.60 |
||
|
42312C
|
42312C
90311-56007 Seal, Oil (For Rear Axle Shaft)[04.1997 - 08.2000] AE114,CE114,116 内側 |
90311-56007 |
from US $8.32 |
||
|
42312D
|
42312D
90521-69004 Ring, Snap (For Rear Axle Shaft Rh)[04.1997 - 08.2000] AE114,CE114,116 |
90521-69004 |
US $3.03 |
||
|
42312E
|
42312E
90942-02047 Bolt, Hub[04.1997 - 08.2000] AE11#,CE11#,EE111 |
90942-02047 |
from US $3.68 |
||
|
42403
|
42403
42431-12140 Drum Sub-Assy, Rear Brake[04.1997 - 08.2000] AE114,CE114,116 |
42431-12140 |
US $122.30 |
||
|
43525D
|
43525D
43525-20040 Cap, Rear Wheel Adjusting Lock[04.1997 - 08.2000] AE114,CE114,116 |
43525-20040 |
US $4.80 |
||
|
43525E
|
43525E
43525-20040 Cap, Rear Wheel Adjusting Lock[04.1997 - 08.2000] AE114,CE114,116 |
43525-20040 |
US $4.80 |
||
|
9025203014
|
9025203014
90252-03014 PIN COTTER |
90252-03014 |
US $1.92 |
