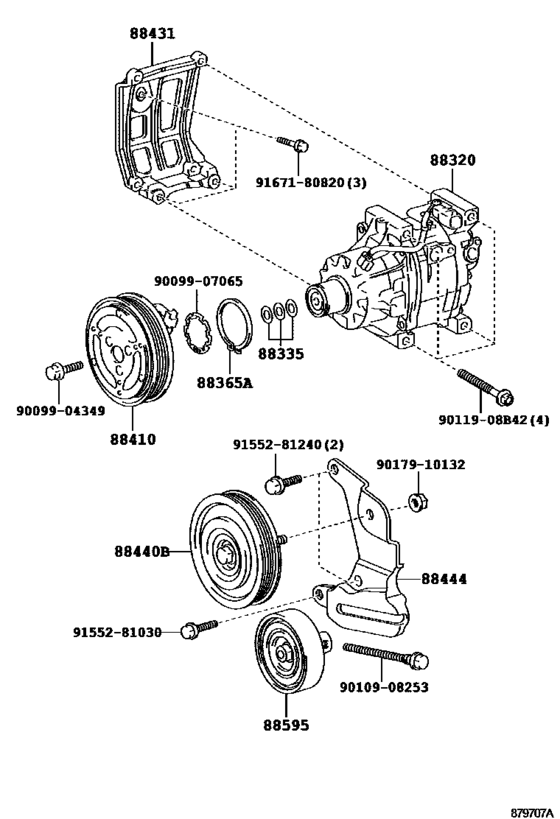

Heating & Air Conditioning - Compressor ([08.2007 - ] (0708- )CE140) Diagram Toyota COROLLA
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- CE140
- grade
- XLI
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2007
- To
- 03.2014
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-1A531
Compressor Assy, Cooler
[08.2007 - 07.2010] CE140; CE140 AIR CONDITIONER-WITH OUT |
88320-1A531 |
— | ||
|
88335
|
88335
88335-14020 Washer[08.2007 - 07.2010] CE140; CE140 AIR CONDITIONER-WITH OUT |
88335-14020 |
from US $1.25 |
||
|
88365A
|
88365A
88365-87201 Ring, Snap[08.2007 - 07.2010] CE140; CE140 AIR CONDITIONER-WITH OUT |
88365-87201 |
from US $1.75 |
||
|
88410
|
88410
88410-1A310 Clutch Assy, Magnet[08.2007 - 07.2010] CE140; CE140 AIR CONDITIONER-WITH OUT |
88410-1A310 |
US $384.38 |
||
|
88431
|
88431
88431-12651
Bracket, Compressor Mounting, No.1
[08.2007 - 07.2010] CE140; CE140 AIR CONDITIONER-WITH OUT |
88431-12651 |
— | ||
|
88440B
|
88440B
88440-12270
Pulley Assy, Idle
[08.2007 - 07.2010] CE140; CE140 AIR CONDITIONER-WITH OUT |
88440-12270 |
— | ||
|
88444
|
88444
88444-12070
Bracket, Idle Pulley
[08.2007 - 07.2010] CE140; CE140 AIR CONDITIONER-WITH OUT |
88444-12070 |
— | ||
|
88595
|
88595
44350-12070 Pulley Assy, Power Steering Idle[08.2007 - 07.2010] CE140; CE140 AIR CONDITIONER-WITH OUT |
44350-12070 |
US $185.76 |
||
|
9011908B42
|
9011908B42
90119-08B42 BOLT WWASHER |
90119-08B42 |
from US $1.21 |
||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.19 |
||
|
9010908253
|
9010908253
90109-08253 Bolt, Idle Pulley |
90109-08253 |
from US $1.56 |
||
|
9017910132
|
9017910132
90179-10132 Nut |
90179-10132 |
from US $0.98 |
||
|
9155281030
|
9155281030
91552-81030 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91552-81030 |
from US $1.11 |
||
|
9155281240
|
9155281240
91552-81240 BOLT FLANGE |
91552-81240 |
from US $1.43 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.88 |
