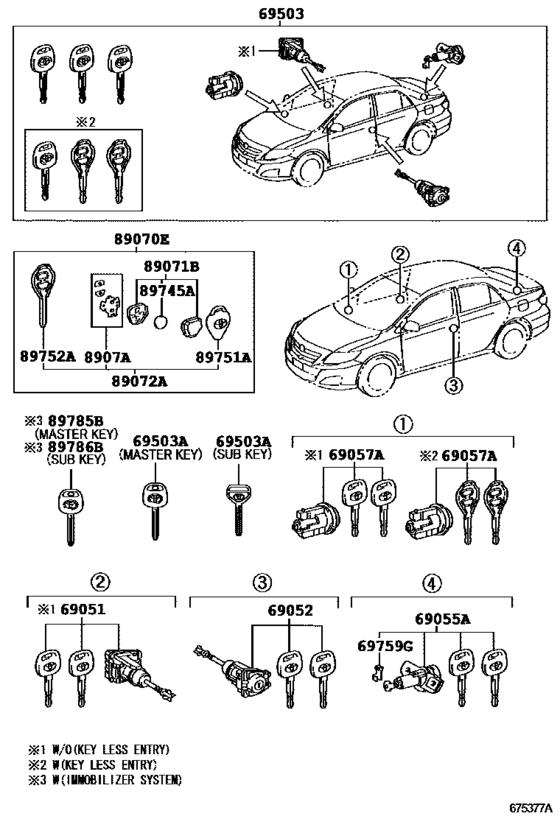

Lock Cylinder Set ([08.2007 - ] (0708- )LHD) Diagram Toyota COROLLA
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- CE140
- grade
- XLI
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2007
- To
- 03.2014
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8907A
|
8907A
8907A-28010 Switch Set, Transmitter[08.2007 - 07.2010] NZE141..GLI WIRELESS DOOR LOCK-WITH; ZZE142..LHD..GLI..GEN WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER); CE140,NZE141..LX,XLI;ZZE142..LHD..XLI..GEN WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY |
8907A-28010 |
from US $11.27 |
||
|
69051
|
69051
69051-12650
Cylinder & Key Set, Door Lock, Rh
[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..LX,XLI; NZE141..GLI WIRELESS DOOR LOCK-WITH |
69051-12650 |
— | ||
|
69052
|
69052
69052-21090 Cylinder & Key Set, Door Lock, LhDOOR LOCK, LH [08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
69052-21090 |
from US $37.42 |
||
|
69055A
|
69055A
69055-12A20 Cylinder & Key Set, Luggage Compartment LockLUGGAGE COMPARTMENT LOCK [08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
69055-12A20 |
US $64.66 |
||
|
69057A
|
69057A
69057-12750
Cylinder & Key Set, Ignition Switch Lock
[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..LX,XLI WIRELESS DOOR LOCK-WITH |
69057-12750 |
— | ||
|
69057A
|
69057A
69057-52530 Cylinder & Key Set, Ignition Switch LockIGNITION SWITCH LOCK [08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..LX,XLI |
69057-52530 |
US $93.31 |
||
|
69503
|
69503
69005-12D40 Cylinder Set, LockLOCK [08.2007 - 07.2010] ZZE14#..GEN;CE140,NZE141..LX,XLI |
69005-12D40 |
US $220.02 |
||
|
69503
|
69503
69005-12D50
Cylinder Set, Lock
[08.2007 - 07.2010] ZZE141..GLI WIRELESS DOOR LOCK-WITH; ZZE142..LHD..GLI..GEN WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER); CE140,ZZE14#..LHD..XLI..GEN WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSE |
69005-12D50 |
— | ||
|
69503A
|
69503A
90999-00188 Key, Blank[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..LX,XLI SUB KEY; CE140,NZE141..LX,XLI SUB KEY,WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY C YLINDER)&POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN) |
90999-00188 |
from US $5.88 |
||
|
69503A
|
69503A
90999-00199 Key, Blank[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..LX,XLI MASTER KEY,W(*68) |
90999-00199 |
from US $10.53 |
||
|
69759G
|
69759G
69759-24080 Snap, Front Door Lock Control Rod[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
69759-24080 |
from US $2.50 |
||
|
89070E
|
89070E
89070-26222
Transmitter Assy, Door Control
[08.2007 - 08.2009] ZZE141..GLI,LX;ZZE142..RHD..GLI WIRELESS DOOR LOCK-WITH; ZZE142..LHD..GLI..GEN WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER); ZZE141..XLI..GEN;CE140,NZE141,ZZE142..(LX,XLI)..GEN WIRELESS DOOR LOCK-W |
89070-26222 |
— | ||
|
89070E
|
89070E
89070-26270
Transmitter Assy, Door Control
[09.2009 - 07.2010] ZZE142..LHD..GLI..GEN WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER); CE140,NZE141..LX,XLI;ZZE142..LHD..XLI..GEN WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER) &PO |
89070-26270 |
— | ||
|
89071B
|
89071B
89071-28202
Module Set, Transmitter Sub-Assy, Door Control
[08.2007 - 07.2010] ZZE142..LHD..GLI..GEN WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER); CE140,ZZE142..LHD..XLI..GEN WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER) &POWER WINDOW-WITH |
89071-28202 |
— | ||
|
89072A
|
89072A
89072-12100 Housing Set, Door Control Transmitter[08.2007 - 09.2009] ZZE141..GLI,LX;ZZE142..RHD..GLI WIRELESS DOOR LOCK-WITH; ZZE142..LHD..GLI..GEN WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER); ZZE141..XLI..GEN;CE140,NZE141,ZZE142..(LX,XLI)..GEN WIRELESS DOOR LOCK-W |
89072-12100 |
US $59.13 |
||
|
89072A
|
89072A
89072-28380 Housing Set, Door Control Transmitter[09.2009 - 07.2010] ZZE142..LHD..GLI..GEN WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER); CE140,NZE141..LX,XLI;ZZE142..LHD..XLI..GEN WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER) &PO |
89072-28380 |
US $58.06 |
||
|
89745A
|
89745A
89745-48030 Battery, Transmitter[08.2007 - 07.2010] NZE141..GLI WIRELESS DOOR LOCK-WITH; ZZE142..LHD..GLI..GEN WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER); CE140,NZE141..LX,XLI;ZZE142..LHD..XLI..GEN WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY |
89745-48030 |
US $5.82 |
||
|
89751A
|
89751A
89751-28070 Cover, Transmitter Housing[08.2007 - 09.2009] ZZE141..GLI,LX;NZE141,ZZE142..RHD..GLI WIRELESS DOOR LOCK-WITH; ZZE142..LHD..GLI..GEN WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER); ZZE141..XLI;ZZE142..GCC;CE140,NZE141,ZZE142..(LX,XLI)..GEN WIRELE |
89751-28070 |
from US $10.16 |
||
|
89751A
|
89751A
89751-52140 Cover, Transmitter Housing[09.2009 - 07.2010] NZE141..GLI WIRELESS DOOR LOCK-WITH; ZZE142..LHD..GLI..GEN WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER); CE140,NZE141..LX,XLI;ZZE142..LHD..XLI..GEN WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY |
89751-52140 |
from US $11.08 |
||
|
89752A
|
89752A
89752-12080 Case, Transmitter Housing[08.2007 - 07.2010] ZZE142..LHD..GLI..GEN WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER); CE140,NZE141..LX,XLI;ZZE142..LHD..XLI..GEN WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER) &PO |
89752-12080 |
US $27.97 |
