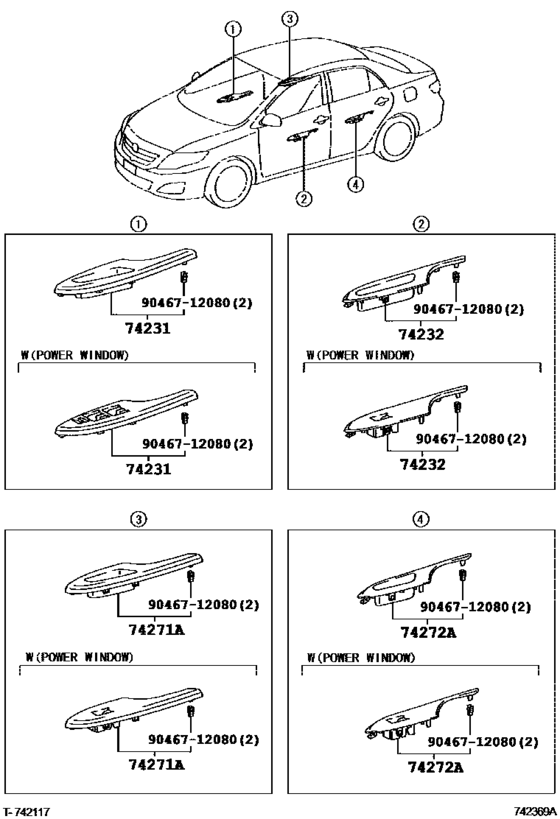

Armrest & Visor ([08.2007 - ] ARMREST (0708- )RHD..SED) Diagram Toyota COROLLA
- Year
- 2007 - 2013
- Sales region
- General
- Frame
- CE140
- grade
- XLI
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2007
- To
- 11.2013
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74231
|
74231
74231-12830-B0
Panel, Front Armrest Base, Upper Rh
[08.2007 - 07.2010] CE140,NZE141..RHD..(LX,XLI) POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN)&INSTRUMENT PANEL CENTER CLUSTER-SILVER & DARK SILVER,SILVER,TRIM1#,4#; ZZE141..LX;NZE141,ZZE142..RHD..GLI INSTRUMENT PANEL CENTER CLUSTER-SILVER & DARK SILVER,SILV |
74231-12830-B0 |
— | ||
|
74231
|
74231
74231-12A20-B1
Panel, Front Armrest Base, Upper Rh
[08.2007 - 07.2010] ZZE141..LX;NZE141,ZZE142..RHD..GLI GRAY,TRIM1#; CE140,NZE141,ZZE142..RHD..(LX,XLI) POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN),GRAY,TRIM1# |
74231-12A20-B1 |
— | ||
|
74231
|
74231
74231-12A20-E0
Panel, Front Armrest Base, Upper Rh
[08.2007 - 07.2010] ZZE141..LX;NZE141,ZZE142..RHD..GLI GREGE,TRIM4#; CE140,NZE141,ZZE142..RHD..(LX,XLI) POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN),GREGE,TRIM4# |
74231-12A20-E0 |
— | ||
|
74231
|
74231
74231-12A40-B0
Panel, Front Armrest Base, Upper Rh
[08.2007 - 07.2010] ZZE141..XLI;ZZE142..GCC;CE140,NZE141,ZZE142..(LX,XLI)..GEN GRAY,TRIM1# |
74231-12A40-B0 |
— | ||
|
74231
|
74231
74231-12A40-E0
Panel, Front Armrest Base, Upper Rh
[08.2007 - 07.2010] ZZE141..XLI;ZZE142..GCC;CE140,NZE141,ZZE142..(LX,XLI)..GEN GREGE,TRIM4# |
74231-12A40-E0 |
— | ||
|
74232
|
74232
74232-12640-B0
Panel, Front Armrest Base, Upper Lh
[08.2007 - 07.2010] CE140,NZE141..RHD..(LX,XLI) POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN)&INSTRUMENT PANEL CENTER CLUSTER-SILVER & DARK SILVER,SILVER,TRIM1#,4#; ZZE141..LX;NZE141,ZZE142..RHD..GLI INSTRUMENT PANEL CENTER CLUSTER-SILVER & DARK SILVER,SILV |
74232-12640-B0 |
— | ||
|
74232
|
74232
74232-12720-B1
Panel, Front Armrest Base, Upper Lh
[08.2007 - 07.2010] ZZE141..LX;NZE141,ZZE142..RHD..GLI GRAY,TRIM1#; CE140,NZE141,ZZE142..RHD..(LX,XLI) POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN),GRAY,TRIM1# |
74232-12720-B1 |
— | ||
|
74232
|
74232
74232-12720-E0
Panel, Front Armrest Base, Upper Lh
[08.2007 - 07.2010] ZZE141..LX;NZE141,ZZE142..RHD..GLI GREGE,TRIM4#; CE140,NZE141,ZZE142..RHD..(LX,XLI) POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN),GREGE,TRIM4# |
74232-12720-E0 |
— | ||
|
74232
|
74232
74232-12730-B0
Panel, Front Armrest Base, Upper Lh
[08.2007 - 07.2010] ZZE141..XLI;ZZE142..GCC;CE140,NZE141,ZZE142..(LX,XLI)..GEN GRAY,TRIM1# |
74232-12730-B0 |
— | ||
|
74232
|
74232
74232-12730-E0
Panel, Front Armrest Base, Upper Lh
[08.2007 - 07.2010] ZZE141..XLI;ZZE142..GCC;CE140,NZE141,ZZE142..(LX,XLI)..GEN GREGE,TRIM4# |
74232-12730-E0 |
— | ||
|
74271A
|
74271A
74271-12230-B0
Panel, Rear Door Armrest Base, Upper Rh
[08.2007 - 07.2010] ZZE14#..GCC;CE140,NZE141..LX,XLI POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN)&INSTRUMENT PANEL CENTER CLUSTER-SILVER & DARK SILVER,SILVER,TRIM1#,4#; ZZE141..GLI,LX;NZE141,ZZE142..GLI..GEN INSTRUMENT PANEL CENTER CLUSTER-SILVER & DARK SI |
74271-12230-B0 |
— | ||
|
74271A
|
74271A
74271-12290-B1
Panel, Rear Door Armrest Base, Upper Rh
[08.2007 - 07.2010] ZZE141..GLI,LX;NZE141,ZZE142..GLI..GEN GRAY,TRIM1#; ZZE141..XLI;ZZE142..GCC;CE140,NZE141,ZZE142..(LX,XLI)..GEN POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN),GRAY,TRIM1# |
74271-12290-B1 |
— | ||
|
74271A
|
74271A
74271-12290-E0
Panel, Rear Door Armrest Base, Upper Rh
[08.2007 - 07.2010] ZZE141..GLI,LX;NZE141,ZZE142..GLI..GEN GREGE,TRIM4#; ZZE141..XLI;ZZE142..GCC;CE140,NZE141,ZZE142..(LX,XLI)..GEN POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN),GREGE,TRIM4# |
74271-12290-E0 |
— | ||
|
74271A
|
74271A
74271-12300-B1
Panel, Rear Door Armrest Base, Upper Rh
[08.2007 - 07.2010] ZZE141..XLI;ZZE142..GCC;CE140,NZE141,ZZE142..(LX,XLI)..GEN GRAY,TRIM1# |
74271-12300-B1 |
— | ||
|
74271A
|
74271A
74271-12300-E0
Panel, Rear Door Armrest Base, Upper Rh
[08.2007 - 07.2010] ZZE141..XLI;ZZE142..GCC;CE140,NZE141,ZZE142..(LX,XLI)..GEN GREGE,TRIM4# |
74271-12300-E0 |
— | ||
|
74272A
|
74272A
74272-12230-B0
Panel, Rear Door Armrest Base, Upper Lh
[08.2007 - 07.2010] ZZE14#..GCC;CE140,NZE141..LX,XLI POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN)&INSTRUMENT PANEL CENTER CLUSTER-SILVER & DARK SILVER,SILVER,TRIM1#,4#; ZZE141..GLI,LX;NZE141,ZZE142..GLI..GEN INSTRUMENT PANEL CENTER CLUSTER-SILVER & DARK SI |
74272-12230-B0 |
— | ||
|
74272A
|
74272A
74272-12290-B1
Panel, Rear Door Armrest Base, Upper Lh
[08.2007 - 07.2010] ZZE141..GLI,LX;NZE141,ZZE142..GLI..GEN GRAY,TRIM1#; ZZE141..XLI;ZZE142..GCC;CE140,NZE141,ZZE142..(LX,XLI)..GEN POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN),GRAY,TRIM1# |
74272-12290-B1 |
— | ||
|
74272A
|
74272A
74272-12290-E0
Panel, Rear Door Armrest Base, Upper Lh
[08.2007 - 07.2010] ZZE141..GLI,LX;NZE141,ZZE142..GLI..GEN GREGE,TRIM4#; ZZE141..XLI;ZZE142..GCC;CE140,NZE141,ZZE142..(LX,XLI)..GEN POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN),GREGE,TRIM4# |
74272-12290-E0 |
— | ||
|
74272A
|
74272A
74272-12300-B1
Panel, Rear Door Armrest Base, Upper Lh
[08.2007 - 07.2010] ZZE141..XLI;ZZE142..GCC;CE140,NZE141,ZZE142..(LX,XLI)..GEN GRAY,TRIM1# |
74272-12300-B1 |
— | ||
|
74272A
|
74272A
74272-12300-E0
Panel, Rear Door Armrest Base, Upper Lh
[08.2007 - 07.2010] ZZE141..XLI;ZZE142..GCC;CE140,NZE141,ZZE142..(LX,XLI)..GEN GREGE,TRIM4# |
74272-12300-E0 |
— | ||
|
9046712080
|
9046712080
90467-12080 Clip(For Panel, Instrument Cluster Finish) |
90467-12080 |
from US $0.80 |
