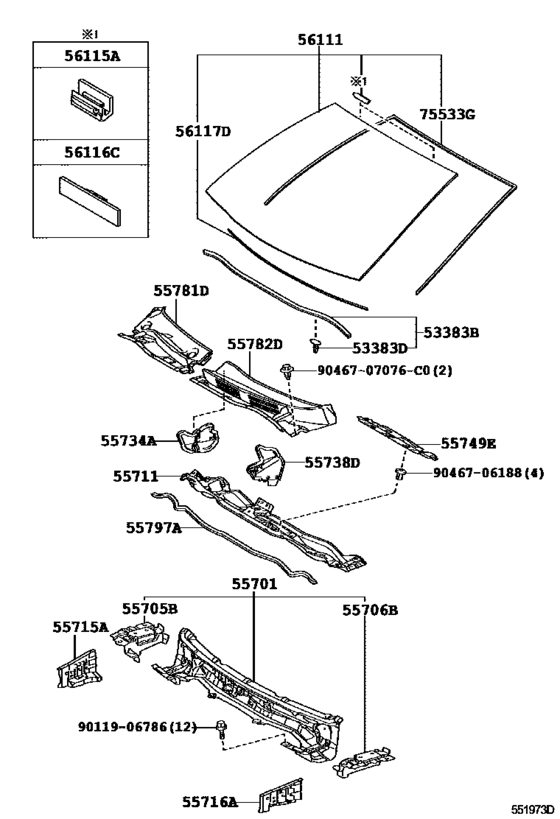

Cowl Panel & Windshield Glass ([08.2007 - ] (0708- )RHD..SED) Diagram Toyota COROLLA
- Year
- 2007 - 2013
- Sales region
- General
- Frame
- CE140
- grade
- XLI
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2007
- To
- 11.2013
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53383B
|
53383B
53383-12160 Seal, Hood To Cowl TopHOOD TO COWL TOP [08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
53383-12160 |
US $13.71 |
||
|
53383D
|
53383D
67867-12150 Clip(For Hood Air Intake Duct Seal)[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED WHITE |
67867-12150 |
from US $1.60 |
||
|
53383D
|
53383D
67867-52030 Retainer(For Front Door Weatherstrip)[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED PINK |
67867-52030 |
US $1.60 |
||
|
55701
|
55701
55700-12B30 Panel Sub-Assy, CowlCOWL [08.2007 - 07.2010] CE140,NZE141..RHD..SED |
55700-12B30 |
US $263.54 |
||
|
55705B
|
55705B
55705-12100
Panel Sub-Assy, Cowl Top Side, Rh
[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
55705-12100 |
— | ||
|
55706B
|
55706B
55706-12110
Panel Sub-Assy, Cowl Top Side, Lh
[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
55706-12110 |
— | ||
|
55711
|
55711
55701-12A41 Panel, Cowl Top, Outer[08.2007 - 07.2010] CE140,NZE141..RHD..SED |
55701-12A41 |
US $117.94 |
||
|
55715A
|
55715A
55715-12110 Brace, Cowl Top To Apron, Rh[08.2007 - 07.2010] CE140,NZE141,ZZE14#..SED |
55715-12110 |
US $22.28 |
||
|
55716A
|
55716A
55716-12110 Brace, Cowl Top To Apron, Lh[08.2007 - 07.2010] CE140,NZE141,ZZE14#..SED |
55716-12110 |
US $22.28 |
||
|
55734A
|
55734A
55734-12170
Plate, Water Guard, Rh
[08.2007 - 07.2010] CE140,NZE141..RHD..SED |
55734-12170 |
— | ||
|
55738D
|
55738D
55737-12100
Seal, Heater Air Duct Splash Shield, No.2
[08.2007 - 07.2010] CE140,NZE141..RHD..SED |
55737-12100 |
— | ||
|
55749E
|
55749E
55749-12080 Plate, Cowl Top Insulator, No.2[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
55749-12080 |
US $32.91 |
||
|
55781D
|
55781D
55708-12350 Louver, Cowl Top Ventilator, RhCOWL TOP VENTILATOR, RH [08.2007 - 07.2010] CE140,NZE141..RHD..SED |
55708-12350 |
US $178.96 |
||
|
55782D
|
55782D
55709-12120
Louver, Cowl Top Ventilator, Lh
[08.2007 - 07.2010] CE140,NZE141..RHD..SED |
55709-12120 |
— | ||
|
55797A
|
55797A
55737-74010 Seal, Heater Air Duct Splash Shield, No.1HEATER AIR DUCT SPLASH SHIELD, NO.1 [06.2008 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
55737-74010 |
US $14.12 |
||
|
55797A
|
55797A
55797-12040
Seal, Cowl Water Extract
[08.2007 - 05.2008] CE140,NZE141,ZZE14#..SED |
55797-12040 |
— | ||
|
56111
|
56111
56101-12440
Glass, Windshield
[08.2007 - 10.2007] CE140,NZE141,ZZE14#..RHD..SED *LAM,T=4.7,GREEN |
56101-12440 |
— | ||
| replacements | |||||
|
56111
|
56111
56101-12442
Glass, Windshield
[08.2007 - 10.2007] CE140,NZE141,ZZE14#..RHD..SED *LAM,T=4.7,GREEN |
56101-12442 |
— | ||
|
56111
|
56111
56117-12300
Dam, Windshield Glass Adhesive
[08.2007 - 10.2007] CE140,NZE141,ZZE14#..RHD..SED *LAM,T=4.7,GREEN |
56117-12300 |
— | ||
|
56111
|
56111
56101-12441
Glass, Windshield
[11.2007 - 07.2008] CE140,NZE141,ZZE14#..RHD..SED *LAM,T=4.7,GREEN |
56101-12441 |
— | ||
| replacement | |||||
|
56111
|
56111
56101-12442
Glass, Windshield
[11.2007 - 07.2008] CE140,NZE141,ZZE14#..RHD..SED *LAM,T=4.7,GREEN |
56101-12442 |
— | ||
|
56111
|
56111
56101-12442
Glass, Windshield
[08.2008 - 07.2010] CE140,NZE141..RHD..SED *LAM,T=4.7,GREEN |
56101-12442 |
— | ||
|
56111
|
56111
56101-12530
Glass, Windshield
[07.2010 - 11.2013] CE140,NZE141,ZRE14#..RHD..SED *LAM,T=4.7,GREEN |
56101-12530 |
— | ||
|
56115A
|
56115A
56115-30120 Stopper, Windshield Glass, No.1[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
56115-30120 |
from US $1.81 |
||
|
56116C
|
56116C
56116-22050 Stopper, Windshield Glass, No.1[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
56116-22050 |
from US $1.38 |
||
|
56117D
|
56117D
56117-12300
Dam, Windshield Glass Adhesive
[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED L=1303 |
56117-12300 |
— | ||
|
75533G
|
75533G
75531-12690 Moulding, Windshield, OutsideWINDSHIELD, OUTSIDE [08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
75531-12690 |
from US $27.66 |
||
|
9011906786
|
9011906786
90119-06786 BOLT WWASHER |
90119-06786 |
from US $0.96 |
||
|
9046706188
|
9046706188
90467-06188 Retainer, Dash Panel Silencer |
90467-06188 |
US $2.56 |
||
|
9046707076C0
|
9046707076C0
90467-07076-C0 Clip, Radiator Grille |
90467-07076-C0 |
from US $0.99 |
||
