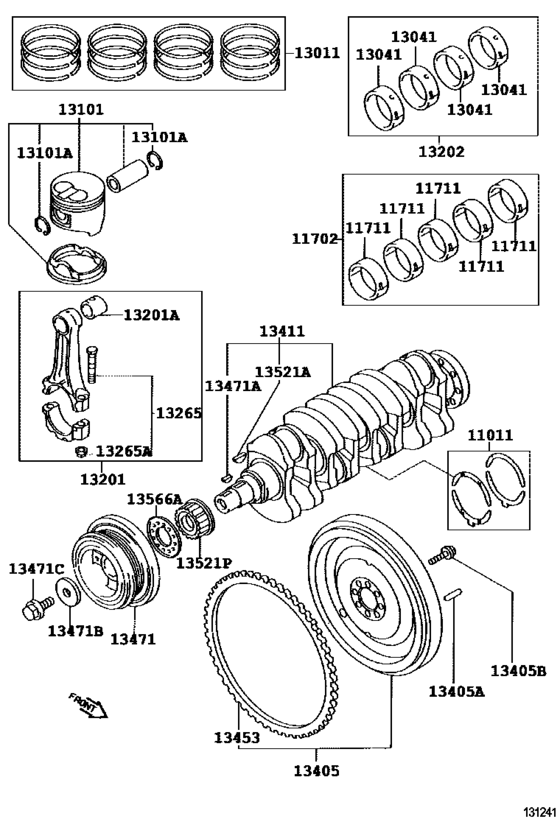

Crankshaft & Piston ([08.2007 - ] (0708- )2C) Diagram Toyota COROLLA
- Year
- 2007 - 2013
- Sales region
- General
- Frame
- CE140
- grade
- XLI
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2007
- To
- 11.2013
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-64010 Washer Set, Crankshaft Thrust[08.2007 - 07.2010] 2C..CE140 STD |
11011-64010 |
US $32.15 |
||
|
11011
|
11011
11012-64010 Washer Set, Crankshaft Thrust[08.2007 - 07.2010] 2C..CE140 O/S 0.125 |
11012-64010 |
US $25.92 |
||
|
11011
|
11011
11013-64010 Washer Set, Crankshaft Thrust[08.2007 - 07.2010] 2C..CE140 O/S 0.250 |
11013-64010 |
US $25.92 |
||
|
11702
|
11702
11704-27023 Bearing Set, Crankshaft[08.2007 - 07.2010] 2C..CE140 U/S 0.25 |
11704-27023 |
US $242.86 |
||
|
11711
|
11711
11701-27012-01
Bearing, Crankshaft
[08.2007 - 01.2008] 2C..CE140 MARK 1,REFER REPAIR MANUAL |
11701-27012-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-27013-01
Bearing, Crankshaft
[08.2007 - 01.2008] 2C..CE140 MARK 1,REFER REPAIR MANUAL |
11701-27013-01 |
— | ||
|
11711
|
11711
11701-27012-02 Bearing, Crankshaft[08.2007 - 01.2008] 2C..CE140 MARK 2,REFER REPAIR MANUAL |
11701-27012-02 |
US $45.43 |
||
| replacement | |||||
|
11711
|
11711
11701-27013-02 Bearing, CrankshaftCRANKSHAFT [08.2007 - 01.2008] 2C..CE140 MARK 2,REFER REPAIR MANUAL |
11701-27013-02 |
from US $10.92 |
||
|
11711
|
11711
11701-27012-03 Bearing, Crankshaft[08.2007 - 01.2008] 2C..CE140 MARK 3,REFER REPAIR MANUAL |
11701-27012-03 |
US $45.43 |
||
| replacement | |||||
|
11711
|
11711
11701-27013-03 Bearing, CrankshaftCRANKSHAFT [08.2007 - 01.2008] 2C..CE140 MARK 3,REFER REPAIR MANUAL |
11701-27013-03 |
US $31.45 |
||
|
11711
|
11711
11701-27012-04 Bearing, Crankshaft[08.2007 - 01.2008] 2C..CE140 MARK 4,REFER REPAIR MANUAL |
11701-27012-04 |
US $45.43 |
||
| replacement | |||||
|
11711
|
11711
11701-27013-04 Bearing, CrankshaftCRANKSHAFT [08.2007 - 01.2008] 2C..CE140 MARK 4,REFER REPAIR MANUAL |
11701-27013-04 |
US $31.45 |
||
|
11711
|
11711
11701-27012-05 Bearing, Crankshaft[08.2007 - 01.2008] 2C..CE140 MARK 5,REFER REPAIR MANUAL |
11701-27012-05 |
US $45.43 |
||
| replacement | |||||
|
11711
|
11711
11701-27013-05 Bearing, CrankshaftCRANKSHAFT [08.2007 - 01.2008] 2C..CE140 MARK 5,REFER REPAIR MANUAL |
11701-27013-05 |
US $31.45 |
||
|
11711
|
11711
11701-27012-A0 Bearing, Crankshaft[08.2007 - 01.2008] 2C..CE140 MARK A,REFER REPAIR MANUAL |
11701-27012-A0 |
US $45.43 |
||
| replacement | |||||
|
11711
|
11711
11701-27013-A0 Bearing, CrankshaftCRANKSHAFT [08.2007 - 01.2008] 2C..CE140 MARK A,REFER REPAIR MANUAL |
11701-27013-A0 |
US $31.45 |
||
|
11711
|
11711
11701-27012-B0 Bearing, Crankshaft[08.2007 - 01.2008] 2C..CE140 MARK B,REFER REPAIR MANUAL |
11701-27012-B0 |
US $45.43 |
||
| replacement | |||||
|
11711
|
11711
11701-27013-B0 Bearing, CrankshaftCRANKSHAFT [08.2007 - 01.2008] 2C..CE140 MARK B,REFER REPAIR MANUAL |
11701-27013-B0 |
US $31.45 |
||
|
11711
|
11711
11701-27013-01
Bearing, Crankshaft
[01.2008 - 07.2010] 2C..CE140 MARK1,REFER REPAIR MANUAL |
11701-27013-01 |
— | ||
|
11711
|
11711
11701-27013-02 Bearing, CrankshaftCRANKSHAFT [01.2008 - 07.2010] 2C..CE140 MARK2,REFER REPAIR MANUAL |
11701-27013-02 |
from US $10.92 |
||
|
11711
|
11711
11701-27013-03 Bearing, CrankshaftCRANKSHAFT [01.2008 - 07.2010] 2C..CE140 MARK3,REFER REPAIR MANUAL |
11701-27013-03 |
US $31.45 |
||
|
11711
|
11711
11701-27013-04 Bearing, CrankshaftCRANKSHAFT [01.2008 - 07.2010] 2C..CE140 MARK4,REFER REPAIR MANUAL |
11701-27013-04 |
US $31.45 |
||
|
11711
|
11711
11701-27013-05 Bearing, CrankshaftCRANKSHAFT [01.2008 - 07.2010] 2C..CE140 MARK5,REFER REPAIR MANUAL |
11701-27013-05 |
US $31.45 |
||
|
11711
|
11711
11701-27013-A0 Bearing, CrankshaftCRANKSHAFT [01.2008 - 07.2010] 2C..CE140 MARKA,REFER REPAIR MANUAL |
11701-27013-A0 |
US $31.45 |
||
|
11711
|
11711
11701-27013-B0 Bearing, CrankshaftCRANKSHAFT [01.2008 - 07.2010] 2C..CE140 MARKB,REFER REPAIR MANUAL |
11701-27013-B0 |
US $31.45 |
||
|
13011
|
13011
13011-64213 Ring Set, Piston[08.2007 - 07.2010] 2C..CE140 STD |
13011-64213 |
from US $178.52 |
||
|
13011
|
13011
13013-64213 Ring Set, Piston[08.2007 - 07.2010] 2C..CE140 O/S 0.50 |
13013-64213 |
US $204.40 |
||
|
13041
|
13041
13041-64072-01
Bearing, Connecting Rod
[08.2007 - 05.2008] 2C..CE140 MARK 1,REFER REPAIR MANUAL |
13041-64072-01 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-64073-01 Bearing, Connecting Rod[08.2007 - 05.2008] 2C..CE140 MARK 1,REFER REPAIR MANUAL |
13041-64073-01 |
US $37.27 |
||
|
13041
|
13041
13041-64072-02
Bearing, Connecting Rod
[08.2007 - 05.2008] 2C..CE140 MARK 2,REFER REPAIR MANUAL |
13041-64072-02 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-64073-02 Bearing, Connecting Rod[08.2007 - 05.2008] 2C..CE140 MARK 2,REFER REPAIR MANUAL |
13041-64073-02 |
from US $12.64 |
||
|
13041
|
13041
13041-64072-03
Bearing, Connecting Rod
[08.2007 - 05.2008] 2C..CE140 MARK 3,REFER REPAIR MANUAL |
13041-64072-03 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-64073-03 Bearing, Connecting Rod[08.2007 - 05.2008] 2C..CE140 MARK 3,REFER REPAIR MANUAL |
13041-64073-03 |
US $37.27 |
||
|
13041
|
13041
13041-64072-04
Bearing, Connecting Rod
[08.2007 - 05.2008] 2C..CE140 MARK 4,REFER REPAIR MANUAL |
13041-64072-04 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-64073-04 Bearing, Connecting Rod[08.2007 - 05.2008] 2C..CE140 MARK 4,REFER REPAIR MANUAL |
13041-64073-04 |
US $52.42 |
||
|
13041
|
13041
13041-64072-05
Bearing, Connecting Rod
[08.2007 - 05.2008] 2C..CE140 MARK 5,REFER REPAIR MANUAL |
13041-64072-05 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-64073-05 Bearing, Connecting Rod[08.2007 - 05.2008] 2C..CE140 MARK 5,REFER REPAIR MANUAL |
13041-64073-05 |
US $37.27 |
||
|
13041
|
13041
13041-64073-01 Bearing, Connecting Rod[05.2008 - 07.2010] 2C..CE140 MARK1,REFER REPAIR MANUAL |
13041-64073-01 |
US $37.27 |
||
|
13041
|
13041
13041-64073-02 Bearing, Connecting Rod[05.2008 - 07.2010] 2C..CE140 MARK2,REFER REPAIR MANUAL |
13041-64073-02 |
from US $12.64 |
||
|
13041
|
13041
13041-64073-03 Bearing, Connecting Rod[05.2008 - 07.2010] 2C..CE140 MARK3,REFER REPAIR MANUAL |
13041-64073-03 |
US $37.27 |
||
|
13041
|
13041
13041-64073-04 Bearing, Connecting Rod[05.2008 - 07.2010] 2C..CE140 MARK4,REFER REPAIR MANUAL |
13041-64073-04 |
US $52.42 |
||
|
13041
|
13041
13041-64073-05 Bearing, Connecting Rod[05.2008 - 07.2010] 2C..CE140 MARK5,REFER REPAIR MANUAL |
13041-64073-05 |
US $37.27 |
||
|
13101
|
13101
13101-64190-01 Piston Sub-Assy, W/pinW/PIN [08.2007 - 07.2010] 2C..CE140 STD,MARK 1,REFER REPAIR MANUAL |
13101-64190-01 |
US $157.25 |
||
|
13101
|
13101
13101-64190-02 Piston Sub-Assy, W/pinW/PIN [08.2007 - 07.2010] 2C..CE140 STD,MARK 2,REFER REPAIR MANUAL |
13101-64190-02 |
from US $157.25 |
||
|
13101
|
13101
13101-64190-03 Piston Sub-Assy, W/pinW/PIN [08.2007 - 07.2010] 2C..CE140 STD,MARK 3,REFER REPAIR MANUAL |
13101-64190-03 |
US $157.25 |
||
|
13101
|
13101
13103-64190 Piston Sub-Assy, W/pinW/PIN [08.2007 - 07.2010] 2C..CE140 O/S 0.50 |
13103-64190 |
from US $125.22 |
||
|
13101A
|
13101A
90521-29003 Ring, Hole Snap(For Piston Pin)[08.2007 - 07.2010] 2C..CE140 |
90521-29003 |
US $2.04 |
||
|
13201
|
13201
13201-64032 Rod Sub-Assy, Connecting[08.2007 - 07.2010] 2C..CE140 |
13201-64032 |
US $195.10 |
||
|
13201A
|
13201A
90999-73138 Bush(For Connecting Rod Small End)[08.2007 - 07.2010] 2C..CE140 |
90999-73138 |
US $9.09 |
||
|
13202
|
13202
13204-64072
Bearing Set, Connecting Rod
[08.2007 - 05.2008] 2C..CE140 U/S 0.25 |
13204-64072 |
— | ||
| replacement | |||||
|
13202
|
13202
13204-64073 Bearing Set, Connecting Rod[08.2007 - 05.2008] 2C..CE140 U/S 0.25 |
13204-64073 |
from US $77.51 |
||
|
13202
|
13202
13204-64073 Bearing Set, Connecting Rod[05.2008 - 07.2010] 2C..CE140 U/S 0.25 |
13204-64073 |
from US $77.51 |
||
|
13265
|
13265
13265-49045
Bolt, Connecting Rod
[08.2007 - 07.2010] 2C..CE140 |
13265-49045 |
— | ||
|
13265A
|
13265A
90179-10042 Nut, Hexagon(For Connecting Rod Bolt)[08.2007 - 07.2010] 2C..CE140 |
90179-10042 |
US $2.56 |
||
|
13405
|
13405
13405-64070 Flywheel Sub-Assy[08.2007 - 07.2010] 2C..CE140 |
13405-64070 |
US $390.21 |
||
|
13405A
|
13405A
90250-08054 Pin, Straight[08.2007 - 07.2010] 2C..CE140 L=23,OD=8; 1ZZFE..ZZE142..LHD..5F..GEN L=23,OD=8 |
90250-08054 |
from US $1.92 |
||
|
13405B
|
13405B
90105-10071 Bolt, Flywheel Setting[08.2007 - 07.2010] 2C..CE140 |
90105-10071 |
US $6.08 |
||
|
13411
|
13411
13401-64010
Crankshaft
[08.2007 - 01.2009] 2C..CE140 |
13401-64010 |
— | ||
|
13411
|
13411
13401-64020
Crankshaft
[01.2009 - 07.2010] 2C..CE140 |
13401-64020 |
— | ||
|
13453
|
13453
13453-64050 Gear, Flywheel Ring[08.2007 - 07.2010] 2C..CE140 |
13453-64050 |
US $107.74 |
||
|
13471
|
13471
13408-64060 Pulley, Crankshaft[08.2007 - 07.2010] 2C..CE140 |
13408-64060 |
US $291.78 |
||
|
13471A
|
13471A
90280-05007 Key, Crankshaft(For Crankshaft Pulley Set)[08.2007 - 07.2010] 2C..CE140 |
90280-05007 |
from US $0.88 |
||
|
13471B
|
13471B
90560-16025 Washer, Plate(For Crankshaft Pulley Set)[08.2007 - 07.2010] 2C..CE140 |
90560-16025 |
US $8.39 |
||
|
13471C
|
13471C
90105-16079 Bolt(For Crankshaft Pulley Set)[08.2007 - 07.2010] 2C..CE140 |
90105-16079 |
from US $4.06 |
||
|
13521A
|
13521A
90280-06001 Key(For Crankshaft Timing Gear)[08.2007 - 07.2010] 2C..CE140 |
90280-06001 |
from US $1.66 |
||
|
13521P
|
13521P
13521-64011 Pulley, Crankshaft Timing[08.2007 - 07.2010] 2C..CE140 |
13521-64011 |
from US $21.18 |
||
|
13566A
|
13566A
13566-64011 Guide, Timing Belt[08.2007 - 07.2010] 2C..CE140 |
13566-64011 |
from US $3.49 |
||
