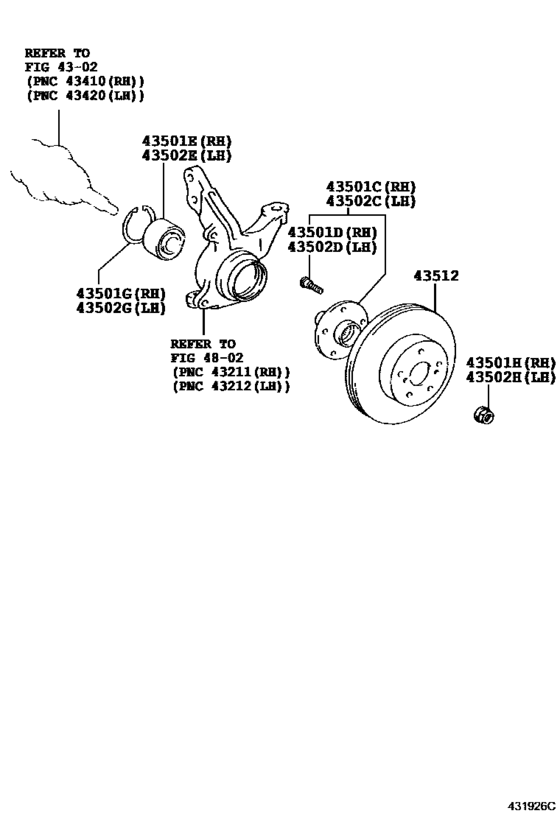

Front Axle Hub ([08.2007 - ] (0708- )SED) Diagram Toyota COROLLA
- Year
- 2007 - 2013
- Sales region
- General
- Frame
- CE140
- grade
- XLI
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2007
- To
- 11.2013
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43501C
|
43501C
43502-32080 Hub Sub-Assy, Front Axle[08.2007 - 07.2010] CE140,NZE141,ZZE14#..SED |
43502-32080 |
from US $87.36 |
||
|
43501D
|
43501D
90942-02049 Bolt, Hub[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
90942-02049 |
US $3.84 |
||
| replacement | |||||
|
43501D
|
43501D
90942-02082 Bolt, Hub[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
90942-02082 |
from US $2.46 |
||
|
43501E
|
43501E
90363-40066 Bearing (For Axle Shaft)[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
90363-40066 |
from US $48.32 |
||
|
43501G
|
43501G
90521-79002 Ring, Snap (For Axle Shaft)[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
90521-79002 |
US $2.24 |
||
|
43501H
|
43501H
90177-22001 Nut (For Axle Shaft)[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
90177-22001 |
from US $2.42 |
||
|
43502C
|
43502C
43502-32080 Hub Sub-Assy, Front Axle[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
43502-32080 |
from US $87.36 |
||
|
43502D
|
43502D
90942-02049 Bolt, Hub[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
90942-02049 |
US $3.84 |
||
| replacement | |||||
|
43502D
|
43502D
90942-02082 Bolt, Hub[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
90942-02082 |
from US $2.46 |
||
|
43502E
|
43502E
90363-40066 Bearing (For Axle Shaft)[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
90363-40066 |
from US $48.32 |
||
|
43502G
|
43502G
90521-79002 Ring, Snap (For Axle Shaft)[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
90521-79002 |
US $2.24 |
||
|
43502H
|
43502H
90177-22001 Nut (For Axle Shaft)[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
90177-22001 |
from US $2.42 |
||
|
43512
|
43512
43512-12710 Disc, Front[08.2007 - 07.2010] CE140,NZE141,ZZE14#..SED |
43512-12710 |
from US $124.32 |
||
