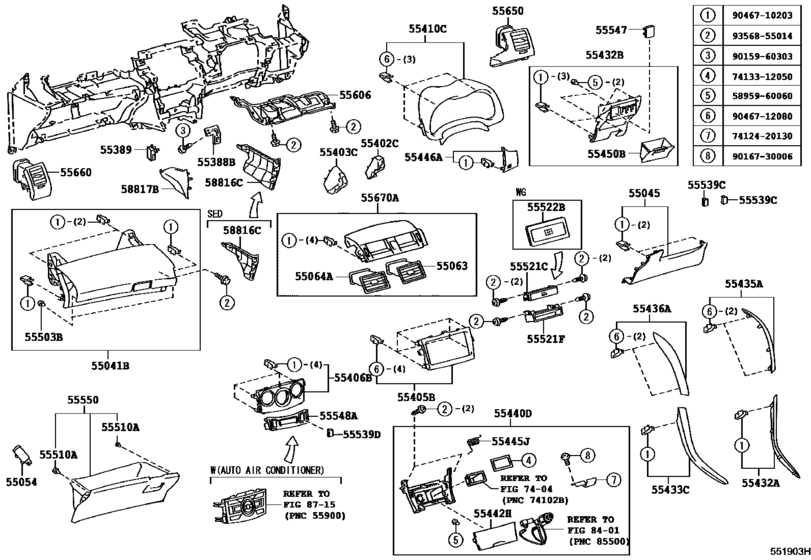

Instrument Panel & Glove Compartment ([04.2007 - ] (0704-0810)N ; (0704- )RHD..SED) Diagram Toyota COROLLA
- Year
- 2007 - 2013
- Sales region
- General
- Frame
- CE140
- grade
- XLI
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2007
- To
- 11.2013
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55041B
|
55041B
55041-12060-B1 Door Sub-Assy, Instrument Panel Box, No.1[08.2007 - 07.2010] CE140,NZE141,ZZE14#..RHD..SED GRAY,TRIM1# |
55041-12060-B1 |
US $151.42 |
||
|
55041B
|
55041B
55041-12060-E0 Door Sub-Assy, Instrument Panel Box, No.1[08.2007 - 07.2010] CE140,NZE141,ZZE14#..RHD..SED GREGE,TRIM4# |
55041-12060-E0 |
US $151.42 |
||
|
55045
|
55045
55045-12370-B1 Panel Sub-Assy, Instrument Panel Finish, Lower[08.2007 - 07.2010] CE140,NZE141,ZZE14#..RHD..SED GRAY,TRIM1# |
55045-12370-B1 |
US $50.52 |
||
|
55045
|
55045
55045-12370-E0 Panel Sub-Assy, Instrument Panel Finish, Lower[08.2007 - 07.2010] CE140,NZE141,ZZE14#..RHD..SED GREGE,TRIM4# |
55045-12370-E0 |
US $50.52 |
||
|
55054
|
55054
55054-12030 Stopper Sub-Assy, Glove Compartment Door[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
55054-12030 |
from US $10.90 |
||
|
55063
|
55063
55063-12180
Register Sub-Assy, Instrument, No.3
[07.2010 - 08.2010] ZRE14#,ZZE142..GEN;CE140,NZE141..LX,XLI |
55063-12180 |
— | ||
| replacement | |||||
|
55063
|
55063
55063-12181
Register Sub-Assy, Instrument, No.3
[07.2010 - 08.2010] ZRE14#,ZZE142..GEN;CE140,NZE141..LX,XLI |
55063-12181 |
— | ||
|
55063
|
55063
55063-12181
Register Sub-Assy, Instrument, No.3
[08.2010 -] ZRE14#,ZZE142..GEN;CE140,NZE141..LX,XLI |
55063-12181 |
— | ||
|
55064A
|
55064A
55064-12140
Register Sub-Assy, Instrument, No.4
[07.2010 - 08.2010] ZRE14#,ZZE142..GEN;CE140,NZE141..LX,XLI |
55064-12140 |
— | ||
| replacement | |||||
|
55064A
|
55064A
55064-12141
Register Sub-Assy, Instrument, No.4
[07.2010 - 08.2010] ZRE14#,ZZE142..GEN;CE140,NZE141..LX,XLI |
55064-12141 |
— | ||
|
55064A
|
55064A
55064-12141
Register Sub-Assy, Instrument, No.4
[08.2010 -] ZRE14#,ZZE142..GEN;CE140,NZE141..LX,XLI |
55064-12141 |
— | ||
|
55388B
|
55388B
55389-42020 Bracket, Finish Panel Mounting, No.1[08.2007 - 07.2010] CE140,NZE141..RHD..SED |
55389-42020 |
US $4.73 |
||
|
55389
|
55389
55388-42020 Bracket, Finish Panel Mounting, No.2[08.2007 - 07.2010] CE140,NZE141..RHD..SED |
55388-42020 |
US $2.71 |
||
|
55405B
|
55405B
55405-12A31 Panel Sub-Assy, Instrument Cluster Finish, Center[08.2007 - 07.2010] CE140,NZE141..SED;ZZE142..LHD..GLI..GEN INSTRUMENT PANEL CENTER CLUSTER-SILVER & DARK SILVER |
55405-12A31 |
US $79.20 |
||
|
55405B
|
55405B
55405-12A71 Panel Sub-Assy, Instrument Cluster Finish, CenterINSTRUMENT CLUSTER FINISH, CENTER [08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED; CE140,NZE141..SED;ZZE142..LHD..GLI..GEN INSTRUMENT PANEL CENTER CLUSTER-SILVER & DARK SILVER&AUDIO-AM/FM CD CHANGER 6SPEAK ER; CE140,NZE141..GLI,XLI;ZZE142..LHD..GLI..GEN INSTRUMENT PANEL CENTER CLUS |
55405-12A71 |
from US $60.28 |
||
|
55406B
|
55406B
55406-12440 Panel Sub-Assy, Instrument Cluster Finish, Lower Center[08.2007 - 07.2010] ZZE14#..GLI,LX;ZZE14#..XLI..GCC;CE140,NZE141..SED INSTRUMENT PANEL CENTER CLUSTER-SILVER & DARK SILVER |
55406-12440 |
US $60.28 |
||
|
55406B
|
55406B
55406-12480 Panel Sub-Assy, Instrument Cluster Finish, Lower CenterINSTRUMENT CLUSTER FINISH, LOWER CENTER [08.2007 - 07.2010] CE140,NZE141,ZZE14#..SED; ZZE142..GLI..GCC POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN)&AIR CONDITIONER-AUTO; ZZE142..GLI..GCC POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN)&AIR CONDITIONER-AUTO&SEAT COVER MATERI AL-LEATHER; NZE141,ZZE14#. |
55406-12480 |
US $60.28 |
||
|
55410C
|
55410C
55410-12A30-B0 Panel Assy, Instrument Cluster Finish[07.2010 - 11.2013] CE140,NZE141,ZRE14#..RHD..SED DK.GRAY,TRIM1#,4# |
55410-12A30-B0 |
US $80.08 |
||
|
55410C
|
55410C
55410-12A30-B1
Panel Assy, Instrument Cluster Finish
[08.2007 - 07.2010] CE140,NZE141,ZZE14#..RHD..SED MD.GRAY,TRIM1# |
55410-12A30-B1 |
— | ||
|
55410C
|
55410C
55410-12A30-E0 Panel Assy, Instrument Cluster Finish[08.2007 - 07.2010] CE140,NZE141,ZZE14#..RHD..SED ASH BROWN,TRIM4# |
55410-12A30-E0 |
US $96.10 |
||
|
55432A
|
55432A
55432-12480 Panel, Instrument Panel Finish, Lower Rh[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
55432-12480 |
US $73.56 |
||
|
55432B
|
55432B
55480-12020-B1 Panel, Instrument Panel Finish, Lower[08.2007 - 07.2010] CE140,NZE141,ZZE14#..RHD..SED GRAY,TRIM1# |
55480-12020-B1 |
US $58.97 |
||
|
55432B
|
55432B
55480-12020-E0 Panel, Instrument Panel Finish, Lower[08.2007 - 07.2010] CE140,NZE141,ZZE14#..RHD..SED GREGE,TRIM4# |
55480-12020-E0 |
US $58.97 |
||
|
55433C
|
55433C
55433-12220 Panel, Instrument Panel Finish, Lower Lh[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
55433-12220 |
US $73.56 |
||
|
55435A
|
55435A
55435-12120 Panel, Instrument Panel Finish, End Rh[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
55435-12120 |
US $59.58 |
||
|
55436A
|
55436A
55436-12090 Panel, Instrument Panel Finish, End Lh[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
55436-12090 |
US $59.58 |
||
|
55440D
|
55440D
55440-12110 Box Assy, Instrument Panel[08.2007 - 07.2010] CE140,NZE141..RHD..SED INSTRUMENT PANEL CENTER CLUSTER-SILVER & DARK SILVER |
55440-12110 |
US $151.42 |
||
|
55440D
|
55440D
55440-12150
Box Assy, Instrument Panel
[08.2007 - 07.2010] CE140,NZE141..RHD..SED |
55440-12150 |
— | ||
|
55442H
|
55442H
55442-12100 Door, Instrument Panel[08.2007 - 07.2010] CE140,NZE141..RHD..SED INSTRUMENT PANEL CENTER CLUSTER-SILVER & DARK SILVER |
55442-12100 |
US $38.73 |
||
|
55442H
|
55442H
55442-12160
Door, Instrument Panel
[08.2007 - 07.2010] CE140,NZE141..RHD..SED |
55442-12160 |
— | ||
|
55445J
|
55445J
55445-12100 Spring, Instrument Panel Box[08.2007 - 07.2010] CE140,NZE141..RHD..SED |
55445-12100 |
US $1.31 |
||
|
55446A
|
55446A
55446-12150-B1 Base, Switch Hole, No.1[08.2007 - 07.2010] CE140,NZE141,ZZE14#..RHD..SED GRAY,TRIM1# |
55446-12150-B1 |
US $20.53 |
||
|
55446A
|
55446A
55446-12150-E0 Base, Switch Hole, No.1[08.2007 - 07.2010] CE140,NZE141,ZZE14#..RHD..SED GREGE,TRIM4# |
55446-12150-E0 |
US $20.53 |
||
|
55450B
|
55450B
55450-12020-B1 Box Assy, Coin[08.2007 - 07.2010] CE140,NZE141,ZZE14#..SED GRAY,TRIM1# |
55450-12020-B1 |
from US $21.08 |
||
|
55450B
|
55450B
55450-12020-E0 Box Assy, Coin[08.2007 - 07.2010] CE140,NZE141,ZZE14#..SED GREGE,TRIM4# |
55450-12020-E0 |
US $19.66 |
||
|
55503B
|
55503B
58959-60060 Cushion, Instrument Panel[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
58959-60060 |
from US $1.44 |
||
|
55510A
|
55510A
55557-53030 Cushion(For Glove Compartment Door)[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
55557-53030 |
US $1.85 |
||
|
55521C
|
55521C
55521-12190 Cover, Stereo OpeningSTEREO OPENING [08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED; ZZE142..LHD..GEN;CE140,NZE141..SED AUDIO-AM/FM CD CHANGER 6SPEAKER; ZZE142..LHD..GEN;CE140,NZE141..SED AUDIO-AM/FM CASSETTE 4SPEAKER; ZZE142..LHD..GEN;CE140,NZE141..SED AUDIO-AM/FM CASSETTE CD 4SPEAK |
55521-12190 |
US $24.47 |
||
|
55521F
|
55521F
55521-16030 Cover, Radio Tuner Opening[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED AUDIO-AM/FM CASSETTE 4SPEAKER |
55521-16030 |
from US $24.02 |
||
|
55521F
|
55521F
55521-52020 Cover, Stereo Opening[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED; ZZE142..LHD..GEN;CE140,NZE141..SED AUDIO-AM/FM CD CHANGER 6SPEAKER; ZZE142..LHD..GEN;CE140,NZE141..SED AUDIO-AM/FM CASSETTE 4SPEAKER; ZZE142..LHD..GEN;CE140,NZE141..SED AUDIO-AM/FM CASSETTE CD 4SPEAK |
55521-52020 |
US $18.39 |
||
|
55539C
|
55539C
55539-52060-B1 Cover, Spare Switch Hole[08.2007 - 07.2010] CE140,NZE141,ZZE14#..SED GRAY,TRIM1# |
55539-52060-B1 |
US $3.20 |
||
|
55539C
|
55539C
55539-52060-E0 Cover, Spare Switch Hole[08.2007 - 07.2010] CE140,NZE141,ZZE14#..SED GREGE,TRIM4# |
55539-52060-E0 |
US $3.20 |
||
|
55539D
|
55539D
55539-52060-B0 Cover, Spare Switch Hole[07.2010 - 10.2013] CE140,NZE141,ZRE14#,ZZE142..SED AUDIO-AM/FM CD-CHANGER 6SPEAKER(EXTRA),DK.GRAY; CE140,NZE141,ZRE14#,ZZE142..SED AUDIO-AM/FM CD 6SPEAKER(EXTRA),DK.GRAY; ZRE14#,ZZE142..GEN;CE140,NZE141..LX,XLI AUDIO-AM/FM CD 6SPEAKER(EXTRA),DK.GRAY; ZRE |
55539-52060-B0 |
from US $4.11 |
||
|
55539D
|
55539D
55539-52060-C0 Cover, Spare Switch Hole[10.2013 - 03.2014] CE140,NZE141,ZRE14#,ZZE142 AUDIO-AM/FM CD-CHANGER 6SPEAKER(EXTRA),BLACK; CE140,NZE141,ZRE14#,ZZE142 AUDIO-AM/FM CD 6SPEAKER(EXTRA),BLACK; CE140,NZE141,ZRE14#,ZZE142..GEN AUDIO-AM/FM CD 6SPEAKER(EXTRA),BLACK; CE140,NZE141,ZRE14#,ZZE142. |
55539-52060-C0 |
from US $3.53 |
||
|
55547
|
55547
55547-28010-B4
Cover, Remote Control Mirror Hole
[08.2007 - 07.2010] CE140,ZZE14#..LX,XLI GRAY,TRIM1# |
55547-28010-B4 |
— | ||
|
55547
|
55547
55547-28010-E2
Cover, Remote Control Mirror Hole
[08.2007 - 07.2010] CE140,ZZE14#..LX,XLI GREGE,TRIM4# |
55547-28010-E2 |
— | ||
|
55548A
|
55548A
55548-12100 Cover, Instrument Panel HoleINSTRUMENT PANEL HOLE [07.2010 -] ZRE14#..GLI,LX;ZRE14#..XLI..GCC;CE140,NZE141..LX,XLI INSTRUMENT PANEL CENTER CLUSTER-GRAY METALLIC & SILVER&AUDIO-AM/FM CD-CHANGER 6SPE AKER(EXTRA); ZRE14#..GLI,LX;ZRE14#..XLI..GCC;CE140,NZE141..LX,XLI INSTRUMENT PANEL CENTER CLUSTER-GRAY META |
55548-12100 |
US $24.32 |
||
|
55548A
|
55548A
55548-12110 Cover, Instrument Panel Hole[08.2007 - 07.2010] NZE141..GLI INSTRUMENT PANEL CENTER CLUSTER-SILVER & DARK SILVER; CE140,NZE141..LX,XLI;ZZE142..LHD..GLI..GEN INSTRUMENT PANEL CENTER CLUSTER-SILVER & DARK SILVER&SRS AIR BAG-WITH(DRIVER & PAS SENGER); CE140..LHD;ZZE142..LHD..GLI..GEN I |
55548-12110 |
US $24.32 |
||
|
55548A
|
55548A
55548-12160 Cover, Instrument Panel HoleINSTRUMENT PANEL HOLE [07.2010 -] ZZE142..XLI;CE140,NZE141,ZRE14#..SED AUDIO-AM/FM CD-CHANGER 6SPEAKER(EXTRA); ZZE142..XLI;CE140,NZE141,ZRE14#..SED AUDIO-AM/FM CD 6SPEAKER(EXTRA); ZRE14#..GEN;CE140,NZE141,ZZE142..LX,XLI AUDIO-AM/FM CD 6SPEAKER(EXTRA); ZRE14#..GEN;CE140,NZE141, |
55548-12160 |
US $33.05 |
||
|
55548A
|
55548A
55548-12170 Cover, Instrument Panel HoleINSTRUMENT PANEL HOLE [08.2007 - 07.2010] NZE141..GLI; ZZE142..LHD..GEN;CE140,NZE141..LX,XLI SRS AIR BAG-WITH(DRIVER & PASSENGER); CE140..LHD;ZZE142..LHD..GLI..GEN SRS AIR BAG-W(*DRP & SIDE & *CUSA) |
55548-12170 |
US $33.05 |
||
|
55548A
|
55548A
55548-12180
Cover, Instrument Panel Hole
[07.2010 -] ZRE14#..GEN;CE140,NZE141,ZZE142..LX,XLI SRS AIR BAG-WITH(DRIVER)&AUDIO-AM/FM CD-CHANGER 6SPEAKER(EXTRA); ZRE14#..GEN;CE140,NZE141,ZZE142..LX,XLI SRS AIR BAG-WITH(DRIVER)&AUDIO-AM/FM CD 6SPEAKER(EXTRA); ZRE14#..GEN;CE140,NZE141,ZZE142..LX,XLI S |
55548-12180 |
— | ||
|
55548A
|
55548A
55548-12190
Cover, Instrument Panel Hole
[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..LX,XLI |
55548-12190 |
— | ||
|
55548A
|
55548A
55548-12210
Cover, Instrument Panel Hole
[08.2007 - 07.2010] CE140,NZE141..LX,XLI;ZZE142..LHD..GLI..GEN INSTRUMENT PANEL CENTER CLUSTER-SILVER & DARK SILVER |
55548-12210 |
— | ||
|
55548A
|
55548A
55548-12290
Cover, Instrument Panel Hole
[07.2010 -] CE140,NZE141..LX,XLI;ZRE14#..(GLI,LX)..GEN INSTRUMENT PANEL CENTER CLUSTER-GRAY METALLIC & SILVER&SRS AIR BAG-WITH(DRIVER)&AU DIO-AM/FM CD-CHANGER 6SPEAKER(EXTRA); CE140,NZE141..LX,XLI;ZRE14#..(GLI,LX)..GEN INSTRUMENT PANEL CENTER CLUSTER-GRAY |
55548-12290 |
— | ||
|
55550
|
55550
55550-12470-B1 Door Assy, Glove Compartment[08.2007 - 07.2010] CE140,NZE141,ZZE14#..RHD..SED GRAY,TRIM1# |
55550-12470-B1 |
US $165.98 |
||
|
55550
|
55550
55550-12470-E0 Door Assy, Glove Compartment[08.2007 - 07.2010] CE140,NZE141,ZZE14#..RHD..SED GREGE,TRIM4# |
55550-12470-E0 |
US $165.98 |
||
|
55606
|
55606
55606-12090
Cover Sub-Assy, Instrument Panel Under, No.1
[08.2007 - 07.2010] CE140..RHD |
55606-12090 |
— | ||
|
55650
|
55650
55650-12390-B1 Register Assy, Instrument Panel, No.1[08.2007 - 06.2010] ZZE142..RHD;CE140,NZE141,ZZE141..RHD..(LX,XLI) GRAY,TRIM1# |
55650-12390-B1 |
US $77.17 |
||
| replacement | |||||
|
55650
|
55650
55650-12391-B1 Register Assy, Instrument Panel, No.1[08.2007 - 06.2010] ZZE142..RHD;CE140,NZE141,ZZE141..RHD..(LX,XLI) GRAY,TRIM1# |
55650-12391-B1 |
US $63.92 |
||
|
55650
|
55650
55650-12390-E0 Register Assy, Instrument Panel, No.1[08.2007 - 06.2010] ZZE142..RHD;CE140,NZE141,ZZE141..RHD..(LX,XLI) GREGE,TRIM4# |
55650-12390-E0 |
US $77.17 |
||
| replacement | |||||
|
55650
|
55650
55650-12391-E0 Register Assy, Instrument Panel, No.1[08.2007 - 06.2010] ZZE142..RHD;CE140,NZE141,ZZE141..RHD..(LX,XLI) GREGE,TRIM4# |
55650-12391-E0 |
US $63.92 |
||
|
55650
|
55650
55650-12391-B1 Register Assy, Instrument Panel, No.1[10.2010 - 11.2013] ZRE142..RHD;CE140,NZE141,ZRE141..RHD..(LX,XLI) GRAY,TRIM1# |
55650-12391-B1 |
US $63.92 |
||
|
55650
|
55650
55650-12391-E0 Register Assy, Instrument Panel, No.1[10.2010 - 11.2013] ZRE142..RHD;CE140,NZE141,ZRE141..RHD..(LX,XLI) GREGE,TRIM4# |
55650-12391-E0 |
US $63.92 |
||
|
55660
|
55660
55660-12420-B1 Register Assy, Instrument Panel, No.2[08.2007 - 06.2010] ZZE142..RHD;CE140,NZE141,ZZE141..RHD..(LX,XLI) GRAY,TRIM1# |
55660-12420-B1 |
US $77.17 |
||
| replacement | |||||
|
55660
|
55660
55660-12421-B1 Register Assy, Instrument Panel, No.2[08.2007 - 06.2010] ZZE142..RHD;CE140,NZE141,ZZE141..RHD..(LX,XLI) GRAY,TRIM1# |
55660-12421-B1 |
US $63.92 |
||
|
55660
|
55660
55660-12420-E0 Register Assy, Instrument Panel, No.2[08.2007 - 06.2010] ZZE142..RHD;CE140,NZE141,ZZE141..RHD..(LX,XLI) GREGE,TRIM4# |
55660-12420-E0 |
US $77.17 |
||
| replacement | |||||
|
55660
|
55660
55660-12421-E0 Register Assy, Instrument Panel, No.2[08.2007 - 06.2010] ZZE142..RHD;CE140,NZE141,ZZE141..RHD..(LX,XLI) GREGE,TRIM4# |
55660-12421-E0 |
US $63.92 |
||
|
55660
|
55660
55660-12421-B1 Register Assy, Instrument Panel, No.2[10.2010 - 11.2013] ZRE142..RHD;CE140,NZE141,ZRE141..RHD..(LX,XLI) GRAY,TRIM1# |
55660-12421-B1 |
US $63.92 |
||
|
55660
|
55660
55660-12421-E0 Register Assy, Instrument Panel, No.2[10.2010 - 11.2013] ZRE142..RHD;CE140,NZE141,ZRE141..RHD..(LX,XLI) GREGE,TRIM4# |
55660-12421-E0 |
US $63.92 |
||
|
55670A
|
55670A
55670-12400
Register Assy, Instrument Panel, Center
[08.2007 - 06.2010] CE140,NZE141..LX,XLI;ZZE14#..(GLI,LX)..GEN INSTRUMENT PANEL CENTER CLUSTER-SILVER & DARK SILVER |
55670-12400 |
— | ||
| replacement | |||||
|
55670A
|
55670A
55670-12401 Register Assy, Instrument Panel, Center[08.2007 - 06.2010] CE140,NZE141..LX,XLI;ZZE14#..(GLI,LX)..GEN INSTRUMENT PANEL CENTER CLUSTER-SILVER & DARK SILVER |
55670-12401 |
US $195.84 |
||
|
55670A
|
55670A
55670-12401 Register Assy, Instrument Panel, Center[08.2010 -] NZE141..N; ZRE14#,ZZE142..GEN;CE140,NZE141..LX,XLI |
55670-12401 |
US $195.84 |
||
|
55670A
|
55670A
55670-12450
Register Assy, Instrument Panel, Center
[08.2007 - 06.2010] ZZE14#..GEN;CE140,NZE141..LX,XLI |
55670-12450 |
— | ||
| replacement | |||||
|
55670A
|
55670A
55670-12451
Register Assy, Instrument Panel, Center
[08.2007 - 06.2010] ZZE14#..GEN;CE140,NZE141..LX,XLI |
55670-12451 |
— | ||
|
58816C
|
58816C
58816-12100-B1
Insert, Console Box, Front No.1
[08.2007 - 09.2007] CE140,NZE141,ZZE14#..RHD..SED GRAY,TRIM1# |
58816-12100-B1 |
— | ||
| replacement | |||||
|
58816C
|
58816C
58816-12101-B1
Insert, Console Box, Front No.1
[08.2007 - 09.2007] CE140,NZE141,ZZE14#..RHD..SED GRAY,TRIM1# |
58816-12101-B1 |
— | ||
|
58816C
|
58816C
58816-12100-E0
Insert, Console Box, Front No.1
[08.2007 - 09.2007] CE140,NZE141,ZZE14#..RHD..SED GREGE,TRIM4# |
58816-12100-E0 |
— | ||
| replacement | |||||
|
58816C
|
58816C
58816-12101-E0
Insert, Console Box, Front No.1
[08.2007 - 09.2007] CE140,NZE141,ZZE14#..RHD..SED GREGE,TRIM4# |
58816-12101-E0 |
— | ||
|
58816C
|
58816C
58816-12101-B1
Insert, Console Box, Front No.1
[09.2007 - 07.2010] CE140,NZE141,ZZE14#..RHD..SED GRAY,TRIM1# |
58816-12101-B1 |
— | ||
|
58816C
|
58816C
58816-12101-E0
Insert, Console Box, Front No.1
[09.2007 - 07.2010] CE140,NZE141,ZZE14#..RHD..SED GREGE,TRIM4# |
58816-12101-E0 |
— | ||
|
58817B
|
58817B
58817-12080-B1
Insert, Console Box, Front No.2
[08.2007 - 09.2007] CE140,NZE141,ZZE14#..RHD..SED GRAY,TRIM1# |
58817-12080-B1 |
— | ||
| replacement | |||||
|
58817B
|
58817B
58817-12081-B1
Insert, Console Box, Front No.2
[08.2007 - 09.2007] CE140,NZE141,ZZE14#..RHD..SED GRAY,TRIM1# |
58817-12081-B1 |
— | ||
|
58817B
|
58817B
58817-12080-E0
Insert, Console Box, Front No.2
[08.2007 - 09.2007] CE140,NZE141,ZZE14#..RHD..SED GREGE,TRIM4# |
58817-12080-E0 |
— | ||
| replacement | |||||
|
58817B
|
58817B
58817-12081-E0
Insert, Console Box, Front No.2
[08.2007 - 09.2007] CE140,NZE141,ZZE14#..RHD..SED GREGE,TRIM4# |
58817-12081-E0 |
— | ||
|
58817B
|
58817B
58817-12081-B1
Insert, Console Box, Front No.2
[09.2007 - 07.2010] CE140,NZE141,ZZE14#..RHD..SED GRAY,TRIM1# |
58817-12081-B1 |
— | ||
|
58817B
|
58817B
58817-12081-E0
Insert, Console Box, Front No.2
[09.2007 - 07.2010] CE140,NZE141,ZZE14#..RHD..SED GREGE,TRIM4# |
58817-12081-E0 |
— | ||
|
5895960060
|
5895960060
58959-60060 Cushion, Instrument Panel |
58959-60060 |
from US $1.44 |
||
|
7412420130
|
7412420130
74124-20130 Spring, Front Ash Receptacle Retainer, Rh |
74124-20130 |
US $3.20 |
||
|
7413312050
|
7413312050
74133-12050 Seal, Front Ash Receptacle |
74133-12050 |
US $1.02 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
from US $1.12 |
||
|
9016730006
|
9016730006
90167-30006
New Genuine Part
|
90167-30006 |
— | ||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9046712080
|
9046712080
90467-12080 Clip(For Panel, Instrument Cluster Finish) |
90467-12080 |
from US $0.80 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $1.12 |
||
