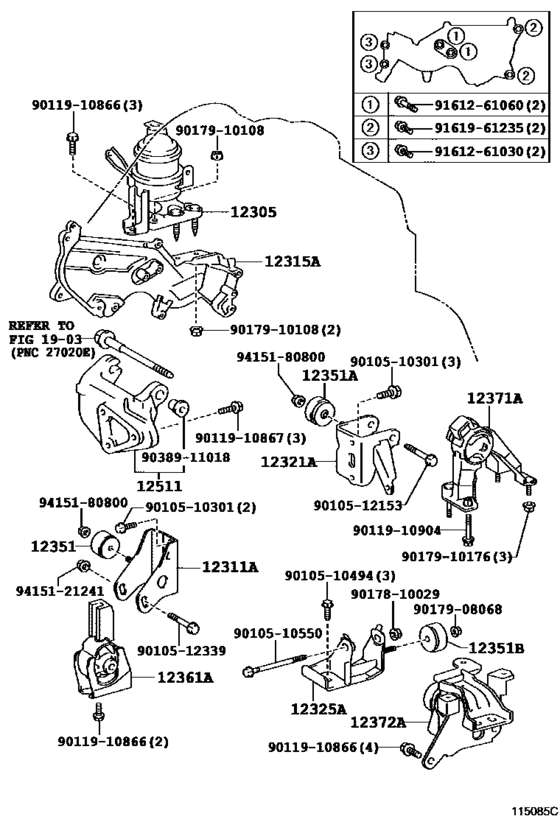

Mounting ([08.2007 - ] (0708- )2C) Diagram Toyota COROLLA
- Year
- 2007 - 2013
- Sales region
- General
- Frame
- CE140
- grade
- XLI
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2007
- To
- 11.2013
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12305
|
12305
12305-64200 Insulator Sub-Assy, Engine Mounting, Rh[08.2007 - 07.2010] 2C..CE140 |
12305-64200 |
from US $161.99 |
||
|
12311A
|
12311A
12311-64240
Bracket, Engine Mounting, Front(For Transverse Engine)
[08.2007 - 07.2010] 2C..CE140 |
12311-64240 |
— | ||
|
12315A
|
12315A
12315-64141 Bracket, Engine Mounting, Rh(For Transverse Engine)[08.2007 - 07.2010] 2C..CE140 |
12315-64141 |
US $72.07 |
||
|
12321A
|
12321A
12321-64360
Bracket, Engine Mounting, Rear(For Transverse Engine)
[08.2007 - 07.2010] 2C..CE140 |
12321-64360 |
— | ||
|
12325A
|
12325A
12325-64220
Bracket, Engine Mounting, Lh(For Transverse Engine)
[08.2007 - 07.2010] 2C..CE140 |
12325-64220 |
— | ||
|
12351
|
12351
12351-27050 Damper, Engine Mounting[08.2007 - 01.2010] 2C..CE140 |
12351-27050 |
US $51.54 |
||
|
12351
|
12351
12351-37120 Damper, Engine MountingENGINE MOUNTING [02.2010 - 07.2010] 2C..CE140 |
12351-37120 |
US $31.01 |
||
|
12351A
|
12351A
12351-11072 Damper, Engine Mounting[08.2007 - 03.2010] 2C..CE140 |
12351-11072 |
US $23.59 |
||
|
12351A
|
12351A
12351-28070
Damper, Engine Mounting
[04.2010 - 07.2010] 2C..CE140 |
12351-28070 |
— | ||
|
12351B
|
12351B
12351-22060 Damper, Engine Mounting[08.2007 - 07.2010] 2C..CE140 |
12351-22060 |
US $21.32 |
||
|
12361A
|
12361A
12361-64410
Insulator, Engine Mounting, Front(For Transverse Engine)
[08.2007 - 07.2010] 2C..CE140 |
12361-64410 |
— | ||
|
12371A
|
12371A
12371-64350 Insulator, Engine Mounting, RearENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) [08.2007 - 07.2010] 2C..CE140 |
12371-64350 |
US $84.45 |
||
|
12372A
|
12372A
12372-64330
Insulator, Engine Mounting, Lh(For Transverse Engine)
[08.2007 - 07.2010] 2C..CE140 |
12372-64330 |
— | ||
|
12511
|
12511
12511-64060
Bracket, Alternator, No.1
[08.2007 - 07.2010] 2C..CE140 |
12511-64060 |
— | ||
|
9010510301
|
9010510301
90105-10301 BOLT WASHER BASED |
90105-10301 |
US $1.76 |
||
|
9010510494
|
9010510494
90105-10494 BOLT FLANGE |
90105-10494 |
US $1.60 |
||
|
9010510550
|
9010510550
90105-10550 BOLT FLANGE |
90105-10550 |
US $3.84 |
||
|
9010512153
|
9010512153
90105-12153 BOLT |
90105-12153 |
US $5.28 |
||
|
9010512339
|
9010512339
90105-12339 New Genuine Part |
90105-12339 |
US $5.28 |
||
|
9011910866
|
9011910866
90119-10866 BOLT WWASHER |
90119-10866 |
from US $0.99 |
||
|
9011910867
|
9011910867
90119-10867 BOLT WWASHER |
90119-10867 |
US $1.46 |
||
|
9011910904
|
9011910904
90119-10904 BOLT WWASHER |
90119-10904 |
US $3.52 |
||
|
9017810029
|
9017810029
90178-10029 Nut(For Front Suspension Support) |
90178-10029 |
from US $0.94 |
||
|
9017908068
|
9017908068
90179-08068 NUT |
90179-08068 |
US $1.60 |
||
|
9017910108
|
9017910108
90179-10108 NUT |
90179-10108 |
US $2.40 |
||
|
9017910176
|
9017910176
90179-10176 NUT |
90179-10176 |
US $2.40 |
||
|
9038911018
|
9038911018
90389-11018 New Genuine Part |
90389-11018 |
US $4.22 |
||
|
9161261030
|
9161261030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.13 |
||
|
9161261060
|
9161261060
91612-61060 Bolt(for Clutch Release Cylinder Setting) |
91612-61060 |
US $1.92 |
||
|
9161961235
|
9161961235
91619-61235 BOLT |
91619-61235 |
from US $2.08 |
||
|
9415121241
|
9415121241
94151-21241 Nut(For Front Stabilizer Link) |
94151-21241 |
from US $0.94 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.82 |
