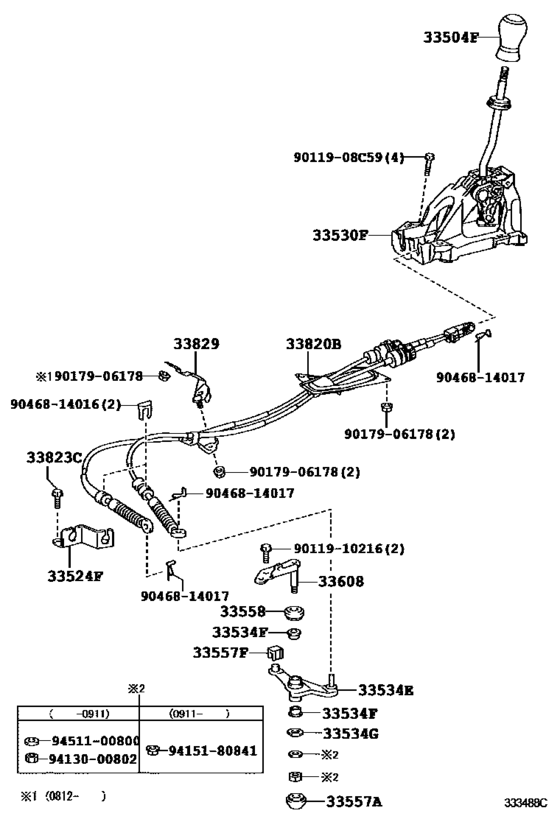

Shift Lever & Retainer ([08.2007 - ] (0708- )CE140) Diagram Toyota COROLLA
- Year
- 2007 - 2013
- Sales region
- General
- Frame
- CE140
- grade
- XLI
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2007
- To
- 11.2013
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-12310-B1
Knob Sub-Assy, Shift Lever
[08.2007 - 07.2010] ZZE142..5F..GLI..GCC DK.GRAY,TRIM1#; CE140;ZZE142..5F..GLI..GEN SHIFT LEVER & KNOB-LEATHER,DK.GRAY,TRIM1#; ZZE141..5F..(GLI,LX) STEERING WHEEL-4-SPOKE,LEATHER,WITH(STEERING SWITCH),DK.GRAY,TRIM1# |
33504-12310-B1 |
— | ||
|
33504F
|
33504F
33504-12310-C0 Knob Sub-Assy, Shift Lever[07.2010 - 03.2014] CE140;ZZE142..5F..GLI SHIFT LEVER & KNOB-LEATHER,BLACK,TRIM1#,4# |
33504-12310-C0 |
US $57.37 |
||
| replacement | |||||
|
33504F
|
33504F
33504-12310-B1
Knob Sub-Assy, Shift Lever
[07.2010 - 03.2014] CE140;ZZE142..5F..GLI SHIFT LEVER & KNOB-LEATHER,BLACK,TRIM1#,4# |
33504-12310-B1 |
— | ||
|
33504F
|
33504F
33504-12310-E0 Knob Sub-Assy, Shift LeverSHIFT LEVER [08.2007 - 07.2010] ZZE142..5F..GLI..GCC ASH BROWN,TRIM4#; CE140;ZZE142..5F..GLI..GEN SHIFT LEVER & KNOB-LEATHER,ASH BROWN,TRIM4#; ZZE141..5F..(GLI,LX) STEERING WHEEL-4-SPOKE,LEATHER,WITH(STEERING SWITCH),ASH BROWN,TRIM4# |
33504-12310-E0 |
US $68.87 |
||
|
33504F
|
33504F
33504-12380-B0
Knob Sub-Assy, Shift Lever
[08.2007 - 07.2010] ZZE142..5F..GEN;CE140,ZZE141..5F;ZZE142..5F..XLI..GCC DK.GRAY,TRIM1# |
33504-12380-B0 |
— | ||
| replacement | |||||
|
33504F
|
33504F
33504-12380-C0 Knob Sub-Assy, Shift Lever (Black)[08.2007 - 07.2010] ZZE142..5F..GEN;CE140,ZZE141..5F;ZZE142..5F..XLI..GCC DK.GRAY,TRIM1# |
33504-12380-C0 |
US $24.29 |
||
|
33504F
|
33504F
33504-12380-C0 Knob Sub-Assy, Shift Lever (Black)[07.2010 - 03.2014] CE140,ZZE142..5F BLACK,TRIM1#,4# |
33504-12380-C0 |
US $24.29 |
||
|
33504F
|
33504F
33504-12380-E0 Knob Sub-Assy, Shift Lever[08.2007 - 07.2010] ZZE142..5F..GEN;CE140,ZZE141..5F;ZZE142..5F..XLI..GCC ASH BROWN,TRIM4# |
33504-12380-E0 |
US $30.43 |
||
|
33524F
|
33524F
33524-28020
Bracket, Control Lever Housing Support (For Floor Shift)
[08.2007 - 07.2010] CE140 |
33524-28020 |
— | ||
|
33530F
|
33530F
33530-12A50 Lever Assy, Shift (For Floor Shift)[08.2007 - 07.2010] CE140,ZZE14#..RHD..5F |
33530-12A50 |
US $57.37 |
||
|
33534E
|
33534E
33534-28090
Crank, Selecting Bell, No.2
[08.2007 - 07.2010] CE140 |
33534-28090 |
— | ||
|
33534F
|
33534F
90386-12022 Bush (For Selecting Bellcrank No.1)[08.2007 - 07.2010] CE140;ZZE142..LHD..5F..GEN |
90386-12022 |
from US $2.08 |
||
|
33534G
|
33534G
90201-08028 Washer, Plate (For Selecting Bellcrank No.2)[08.2007 - 07.2010] CE140 |
90201-08028 |
US $0.96 |
||
|
33557A
|
33557A
33557-32010 Cover, Selecting Bellcrank Dust, No.1[08.2007 - 07.2010] CE140;ZZE142..LHD..5F..GEN |
33557-32010 |
from US $4.48 |
||
|
33557F
|
33557F
33557-33010 Bush (For Shift & Select Lever)[08.2007 - 07.2010] CE140 |
33557-33010 |
from US $7.20 |
||
|
33558
|
33558
33558-10030 Cover, Selecting Bellcrank Dust, No.2[08.2007 - 07.2010] CE140 |
33558-10030 |
from US $3.68 |
||
|
33608
|
33608
33608-12031 Support Sub-Assy, Selecting Bellcrank[08.2007 - 07.2010] CE140 |
33608-12031 |
US $12.38 |
||
|
33820B
|
33820B
33820-12D20
Cable Assy, Transmission Control
[08.2007 - 07.2010] CE140 |
33820-12D20 |
— | ||
|
33823C
|
33823C
91611-G0820 Bolt[08.2007 - 07.2010] CE140 |
91611-G0820 |
from US $1.25 |
||
|
33829
|
33829
33829-12130 Support, Transmission Control Cable[08.2007 - 07.2010] NZE141..4FC;ZZE142..LHD..4FC..GEN NO.2; CE140;ZZE142..LHD..5F..GEN |
33829-12130 |
US $4.80 |
||
|
9011908C59
|
9011908C59
90119-08C59 New Genuine Part |
90119-08C59 |
US $1.28 |
||
|
9011910216
|
9011910216
90119-10216 Bolt (For Control Shaft Cover) |
90119-10216 |
US $2.72 |
||
|
9017906178
|
9017906178
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.80 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9046814017
|
9046814017
90468-14017 Clip, No.2(For Parking Brake) |
90468-14017 |
from US $0.94 |
||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
| replacement | |||||
|
9413000802
|
9413000802
90170-A0001 New Genuine Part |
90170-A0001 |
US $1.59 |
||
|
9415180841
|
9415180841
94151-80841 FLANGE NUT |
94151-80841 |
from US $0.92 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
