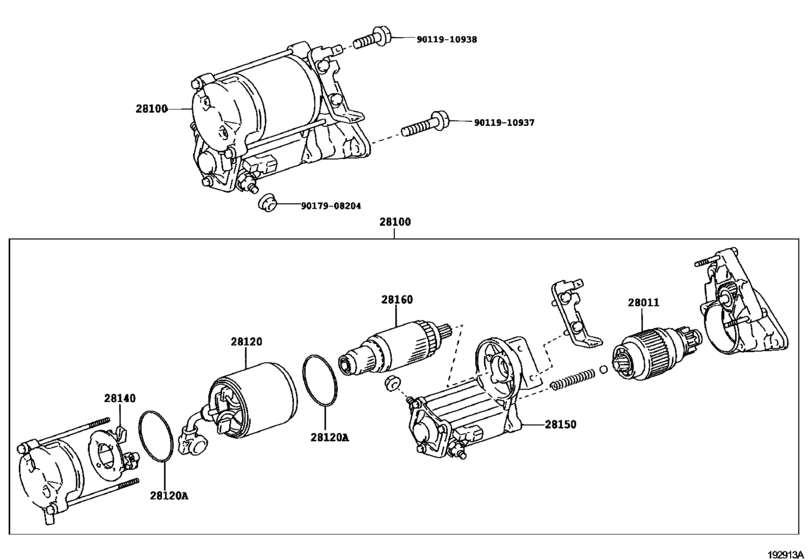

Starter ([08.2007 - ] 12V 1.4KW (0708- )2C) Diagram Toyota COROLLA
- Year
- 2007 - 2013
- Sales region
- General
- Frame
- CE140
- grade
- XLI
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2007
- To
- 11.2013
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-64130 Clutch Sub-Assy, Starter[08.2007 - 07.2010] 2C..CE140 |
28011-64130 |
US $189.28 |
||
|
28100
|
28100
28100-64340 Starter Assy[08.2007 - 05.2009] 2C..CE140 12V 1.4KW |
28100-64340 |
US $1,177.90 |
||
| replacement | |||||
|
28100
|
28100
28100-64341 Starter Assy[08.2007 - 05.2009] 2C..CE140 12V 1.4KW |
28100-64341 |
US $981.34 |
||
|
28100
|
28100
28100-64341 Starter Assy[06.2009 - 07.2010] 2C..CE140 12V 1.4KW |
28100-64341 |
US $981.34 |
||
|
28120
|
28120
28120-55050
Yoke Assy, Starter
[08.2007 - 07.2010] 2C..CE140 |
28120-55050 |
— | ||
|
28120A
|
28120A
90099-14064 Rubber(For Starter Yoke)[07.2010 -] 2C..CE140 |
90099-14064 |
from US $3.67 |
||
|
28140
|
28140
28140-64130
Holder Assy, Starter Brush
[08.2007 - 07.2010] 2C..CE140 |
28140-64130 |
— | ||
|
28150
|
28150
28150-64341 Switch Assy, Magnet Starter[08.2007 - 07.2010] 2C..CE140 |
28150-64341 |
US $154.34 |
||
|
28160
|
28160
28160-74070
Armature Assy, Starter
[08.2007 - 07.2010] 2C..CE140 |
28160-74070 |
— | ||
|
9011910937
|
9011910937
90119-10937 New Genuine Part |
90119-10937 |
US $2.33 |
||
|
9011910938
|
9011910938
90119-10938 New Genuine Part |
90119-10938 |
US $1.40 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
