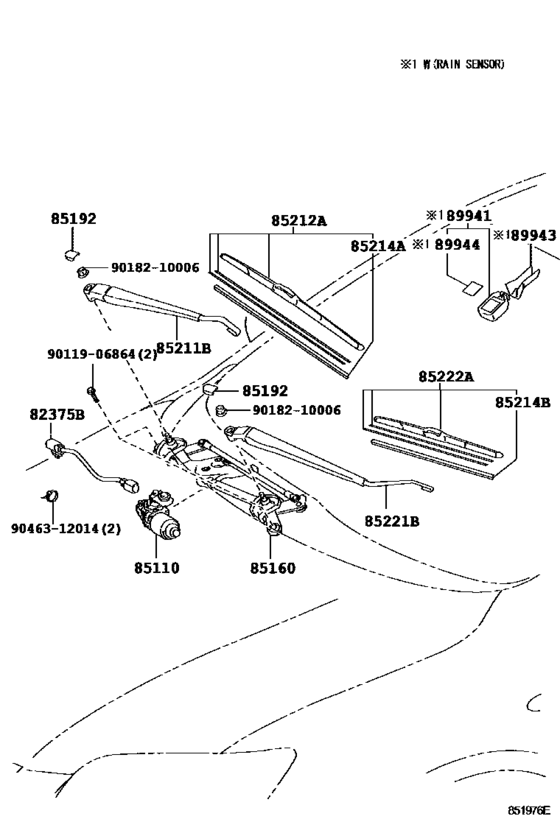

Windshield Wiper ([04.2007 - ] (0704- )RHD) Diagram Toyota COROLLA
- Year
- 2007 - 2013
- Sales region
- General
- Frame
- CE140
- grade
- XLI
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2007
- To
- 11.2013
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82375B
|
82375B
82375-12310
Wire, Wiper Motor
[08.2008 - 05.2009] CE140,NZE141,ZZE14#..SED |
82375-12310 |
— | ||
| replacement | |||||
|
82375B
|
82375B
82375-12311
Wire, Wiper Motor
[08.2008 - 05.2009] CE140,NZE141,ZZE14#..SED |
82375-12311 |
— | ||
|
82375B
|
82375B
82375-12311
Wire, Wiper Motor
[06.2009 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
82375-12311 |
— | ||
|
85110
|
85110
85110-12A40 Motor Assy, Windshield Wiper[08.2007 - 07.2010] CE140,NZE141..RHD..SED |
85110-12A40 |
US $281.01 |
||
|
85160
|
85160
85150-12A50
Link Assy, Windshield Wiper
[08.2007 - 07.2010] CE140,NZE141..RHD..SED |
85150-12A50 |
— | ||
|
85192
|
85192
85292-13010 Cover, Windshield Wiper Arm[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
85292-13010 |
from US $4 |
||
|
85211B
|
85211B
85211-12540
Arm, Front Wiper, Rh
[08.2007 - 07.2010] CE140,NZE141..RHD..SED |
85211-12540 |
— | ||
|
85212A
|
85212A
85212-12480 Blade, Fr Wiper, Rh[08.2007 - 07.2010] CE140,NZE141..RHD..SED |
85212-12480 |
from US $65.21 |
||
|
85214A
|
85214A
85214-68020 Rubber, Wiper, Rh[08.2007 - 07.2010] CE140,NZE141..RHD..SED |
85214-68020 |
US $9.83 |
||
| replacement | |||||
|
85214A
|
85214A
85214-52110 Rubber, Wiper, Rh[08.2007 - 07.2010] CE140,NZE141..RHD..SED |
85214-52110 |
from US $14.40 |
||
|
85214B
|
85214B
85214-68030 Rubber, Wiper, Lh[08.2007 - 07.2010] CE140,NZE141..RHD..SED |
85214-68030 |
from US $7.29 |
||
|
85221B
|
85221B
85221-12470
Arm, Front Wiper, Lh
[08.2007 - 07.2010] CE140,NZE141..RHD..SED |
85221-12470 |
— | ||
|
85222A
|
85222A
85222-12860 Blade, Fr Wiper, Lh[08.2007 - 07.2010] CE140,NZE141..RHD..SED |
85222-12860 |
from US $22.50 |
||
|
9011906864
|
9011906864
90119-06864 BOLT W-WASHER |
90119-06864 |
US $1.28 |
||
|
9018210006
|
9018210006
90182-10006 Nut (For Front Wiper Arm Setting) |
90182-10006 |
US $1.28 |
||
|
9046312014
|
9046312014
90463-12014 Clamp, Hood Lock Control Wire |
90463-12014 |
US $1.76 |
||
