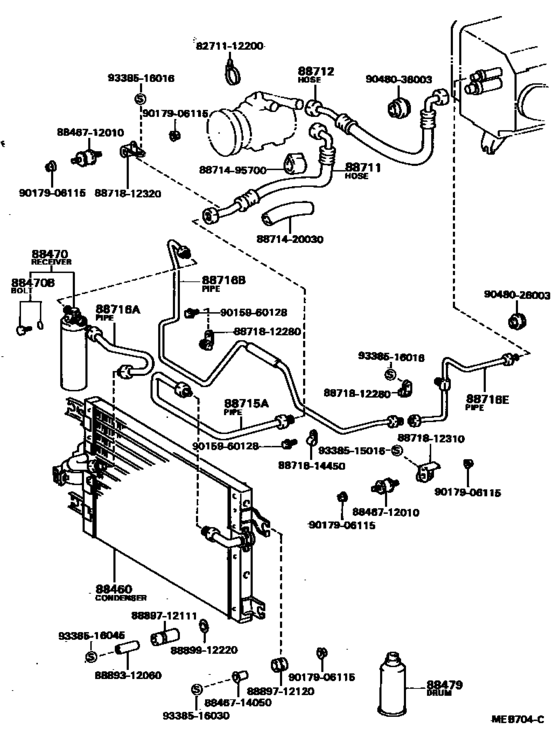

Heating & Air Conditioning - Cooler Piping ([02.1982 - ] (8202- )CE7#) Diagram Toyota COROLLA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- CE70
- grade
- SE
- body
- SED
- ENGINE
- 1C
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 02.1982
- To
- 04.1983
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88460
|
88460
88460-12180 Condenser Assy, CoolerCOOLER [02.1982 - 07.1987] CE7# |
88460-12180 |
US $439.71 |
||
|
88470
|
88470
88470-12050 Receiver & Dryer Assy, Cooler[02.1982 - 07.1987] CE7# |
88470-12050 |
US $91.73 |
||
| replacement | |||||
|
88470
|
88470
88470-14010
Receiver & Dryer Assy, Cooler
[02.1982 - 07.1987] CE7# |
88470-14010 |
— | ||
|
88470B
|
88470B
90099-04579
Bolt, Fuse
[03.1979 - 08.1985] AE70,CE7#,KE7#,TE7# |
90099-04579 |
— | ||
| replacement | |||||
|
88470B
|
88470B
88475-12020
Bolt, Fuse
[03.1979 - 08.1985] AE70,CE7#,KE7#,TE7# |
88475-12020 |
— | ||
|
88479
|
88479
90986-02001
Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
[03.1979 - 07.1987] AE70,CE7#,KE7#,TE7# ４００Ｇ |
90986-02001 |
— | ||
| replacements | |||||
|
88479
|
88479
90986-02004
Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
[03.1979 - 07.1987] AE70,CE7#,KE7#,TE7# ４００Ｇ |
90986-02004 |
— | ||
|
88479
|
88479
90986-02005
New Genuine Part
[03.1979 - 07.1987] AE70,CE7#,KE7#,TE7# ４００Ｇ |
90986-02005 |
— | ||
|
88711
|
88711
88711-12240 Hose, Cooler Refrigerant Discharge, No.1COOLER REFRIGERANT DISCHARGE, NO.1 [02.1982 - 07.1987] CE7# |
88711-12240 |
US $173.26 |
||
|
88712
|
88712
88712-12390 Hose, Cooler Refrigerant Suction, No.1COOLER REFRIGERANT SUCTION, NO.1 [02.1982 - 07.1987] CE7# |
88712-12390 |
US $206.75 |
||
|
88715A
|
88715A
88715-12210 Pipe, Cooler Refrigerant Discharge, ACOOLER REFRIGERANT DISCHARGE, A [02.1982 - 07.1987] CE7# |
88715-12210 |
US $54.16 |
||
|
88716A
|
88716A
88716-12610 Pipe, Cooler Refrigerant Liquid, ACOOLER REFRIGERANT LIQUID, A [02.1982 - 07.1987] CE7# |
88716-12610 |
US $26.21 |
||
|
88716B
|
88716B
88716-12600 Pipe, Cooler Refrigerant Liquid, BCOOLER REFRIGERANT LIQUID, B [02.1982 - 07.1987] CE7# |
88716-12600 |
US $88.82 |
||
|
88716E
|
88716E
88716-12620 Pipe, Cooler Refrigerant Liquid, ECOOLER REFRIGERANT LIQUID, E [02.1982 - 07.1987] CE7# |
88716-12620 |
US $88.82 |
||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.66 |
||
|
8846712010
|
8846712010
88467-12010
Cushion, Cooler Condenser, No.1
|
88467-12010 |
— | ||
|
8846714050
|
8846714050
88467-14050
Cushion, Cooler Condenser, No.1
|
88467-14050 |
— | ||
|
8871420030
|
8871420030
88714-20030
Insulator, Cooler Refrigerant Hose, No.2
|
88714-20030 |
— | ||
|
8871495700
|
8871495700
88714-95700
Insulator, Cooler Refrigerant Hose, No.1
|
88714-95700 |
— | ||
|
8871812280
|
8871812280
88718-12280
Clamp(For Cooler Refrigerant Pipe), No.1
|
88718-12280 |
— | ||
|
8871812310
|
8871812310
88718-12310
Pipe, Cooler Refrigerant Suction, No.2
|
88718-12310 |
— | ||
|
8871812320
|
8871812320
88718-12320
Pipe, Cooler Refrigerant Suction, No.2
|
88718-12320 |
— | ||
|
8871814450
|
8871814450
88718-14450
Clamp(For Cooler Refrigerant Pipe), No.1
|
88718-14450 |
— | ||
|
8889312060
|
8889312060
88893-12060
Collar (for Cooler Idler Pulley)
|
88893-12060 |
— | ||
|
8889712111
|
8889712111
88897-12111
Valve, Cooler Magnet
|
88897-12111 |
— | ||
|
8889712120
|
8889712120
88897-12120
Valve, Cooler Magnet
|
88897-12120 |
— | ||
|
8889912220
|
8889912220
88899-12220
Cover, Evaporator
|
88899-12220 |
— | ||
|
9015960128
|
9015960128
90159-60128 New Genuine Part |
90159-60128 |
US $1.92 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
|
9048026003
|
9048026003
90480-26003 Grommet (For Cooler Unit) |
90480-26003 |
US $3.14 |
||
|
9048036003
|
9048036003
90480-36003 Grommet (For Cooler Unit) |
90480-36003 |
US $3.32 |
||
|
9338515016
|
9338515016
93385-15016 New Genuine Part |
93385-15016 |
US $1.28 |
||
|
9338516016
|
9338516016
93385-16016 New Genuine Part |
93385-16016 |
US $1.28 |
||
|
9338516030
|
9338516030
93385-16030 Lever, Cooler Control, No.1 |
93385-16030 |
US $1.60 |
||
|
9338516045
|
9338516045
93385-16045 New Genuine Part |
93385-16045 |
US $1.89 |
||
