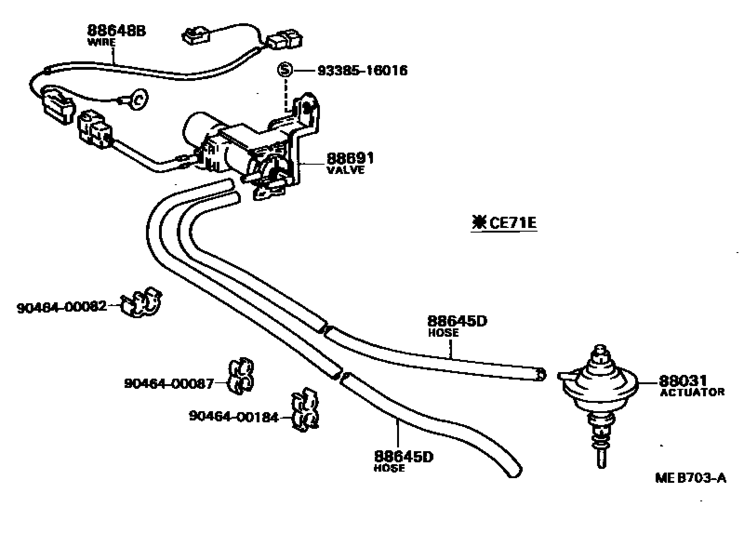

Heating & Air Conditioning - Vacuum Piping ([02.1982 - ] (8202- )CE7#) Diagram Toyota COROLLA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- CE70
- grade
- SE
- body
- SED
- ENGINE
- 1C
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 02.1982
- To
- 04.1983
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Vehicle Model
- Corolla
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88031
|
88031
88031-12120
Actuator Set, Idle-Up
[02.1982 - 07.1987] CE7# |
88031-12120 |
— | ||
|
88645D
|
88645D
90445-08222 Hose (For Idle Up Device)[02.1982 - 07.1987] CE7# 長さ＝１０６０ |
90445-08222 |
US $20.82 |
||
|
88645D
|
88645D
95411-10060 Hose, Vacuum[02.1982 - 07.1987] CE7# ＊Ｈ，Ｌ＝４２０，マーク＝＃０ |
95411-10060 |
US $12.23 |
||
| replacement | |||||
|
88645D
|
88645D
90999-92003
Hose, Breather (For Transfer Case)
[02.1982 - 07.1987] CE7# ＊Ｈ，Ｌ＝４２０，マーク＝＃０ |
90999-92003 |
— | ||
|
88691
|
88691
88690-12230
Valve, Magnet (For Idle Up Device)
[02.1982 - 07.1987] CE7# HEATER IDLE UP |
88690-12230 |
— | ||
|
88691
|
88691
88690-12240
Valve, Magnet (For Idle Up Device)
[02.1982 - 08.1985] CE7# |
88690-12240 |
— | ||
| replacement | |||||
|
88691
|
88691
88690-12241
Valve, Magnet (For Idle Up Device)
[02.1982 - 08.1985] CE7# |
88690-12241 |
— | ||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
from US $1.60 |
||
|
9046400087
|
9046400087
90464-00087 New Genuine Part |
90464-00087 |
US $6.99 |
||
|
9046400184
|
9046400184
90464-00184 Clamp, Vacuum Tube |
90464-00184 |
US $5.60 |
||
|
9338516016
|
9338516016
93385-16016 New Genuine Part |
93385-16016 |
US $1.28 |
||
