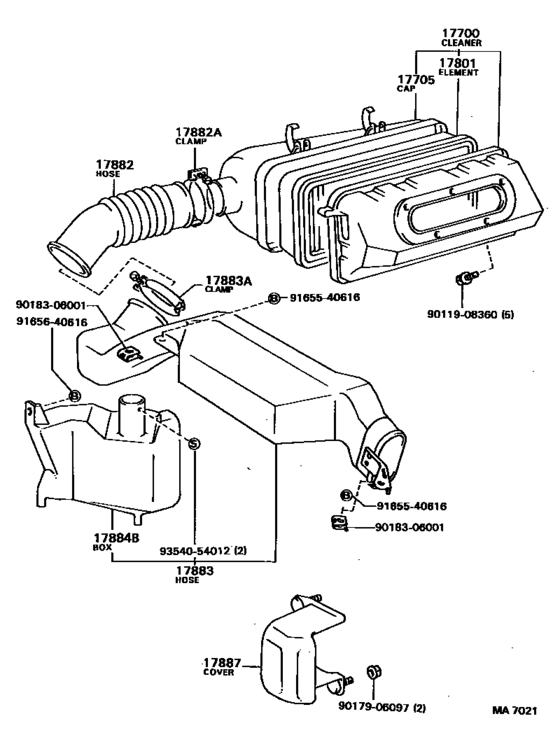

Air Cleaner ([02.1983 - ] (8302- )1C..5F) Diagram Toyota COROLLA
- Year
- 1986 - 1987
- Sales region
- Japan
- Frame
- CE71
- grade
- DX
- body
- V
- ENGINE
- 1C
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.1986
- To
- 07.1987
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Seating Capacity
- 02S
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-64010 Cleaner Assy, Air[11.1984 - 07.1987] 1C..CE7# |
17700-64010 |
US $419.33 |
||
|
17705
|
17705
17705-64010
Cap Sub-Assy, Air Cleaner
[02.1982 - 07.1987] 1C..CE7# |
17705-64010 |
— | ||
|
17801
|
17801
17801-64010 Element Sub-Assy, Air Cleaner Filter[11.1984 - 07.1987] 1C..CE7# |
17801-64010 |
from US $43.39 |
||
|
17882
|
17882
17881-64010 Hose, Air Cleaner, No.2AIR CLEANER, NO.2 [02.1982 - 07.1987] 1C..CE7# |
17881-64010 |
US $61.88 |
||
|
17882A
|
17882A
90460-65001 Clamp(For Air Cleaner Hose, No.2)[02.1982 - 07.1987] 1C..CE7# |
90460-65001 |
US $2.33 |
||
|
17883
|
17883
17880-64020 Hose, Air Cleaner, No.3AIR CLEANER, NO.3 [08.1983 - 07.1987] 1C..CE7# |
17880-64020 |
US $104.83 |
||
|
17883
|
17883
17882-64010 Hose, Air Cleaner, No.3AIR CLEANER, NO.3 [02.1983 - 07.1987] 1C..CE7# COLD SPEC |
17882-64010 |
US $52.42 |
||
|
17883A
|
17883A
90460-65001 Clamp(For Air Cleaner Hose, No.2)[02.1982 - 07.1987] 1C..CE7# |
90460-65001 |
US $2.33 |
||
|
17884B
|
17884B
17884-64010 Box, Air Cleaner, No.1AIR CLEANER, NO.1 [02.1982 - 07.1987] 1C..CE7# |
17884-64010 |
US $107.74 |
||
|
17887
|
17887
17887-64010
Cover, Air Cleaner Hose
[02.1982 - 07.1987] 1C..CE7# |
17887-64010 |
— | ||
|
9011908360
|
9011908360
90119-08360 Bolt |
90119-08360 |
US $1.14 |
||
|
9017906097
|
9017906097
90179-06097 Clip(For Front Bumper), No.1 |
90179-06097 |
US $0.86 |
||
| replacement | |||||
|
9017906097
|
9017906097
90179-06206 Nut |
90179-06206 |
from US $0.78 |
||
|
9018306001
|
9018306001
90183-06001 New Genuine Part |
90183-06001 |
US $2.33 |
||
| replacement | |||||
|
9018306001
|
9018306001
90183-06010 NUT |
90183-06010 |
US $2.24 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9354054012
|
9354054012
93540-54012 Screw, Headlamp |
93540-54012 |
US $1.44 |
||
